Continuously Salt Spray Tester
Continuously Salt Spray Tester application:
Programmable salt spray test chamber is specially designed for the testing of the corrosion erosion resistance of the products after their material surfaces have been treated with electric plating, anodizing, spray coating, anti-rusting oil and other anti-erosion treatment.
Continuously Salt Spray Tester features:
1. Automatically or manually water supply system .
2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no NaCl crystallized salt
3. Double over-heat protection devise and alarm if water shortage.
4. Digitally temperature controller, PID controlled, precision of ±0.1°C
5. Laboratory direct steam-heated, even heating speed, reducing the standby time.
6. Tapered Spray tower, even mist dropping
7. Saturated bucket is SUS #304, convenient for heating and humidifying, offer humidity for testing
8. Concentration of NaCl: 5%; PH of the water: 6.5-7.2 (Liquid)
Continuously Salt Spray Tester technical parameters:
Model |
SH-60 |
SH-90 |
SH-120 |
SH-160 |
SH-200 |
||||
|
Internal Dimension WxHxD (mm) |
600x450x400 |
900x600x500 |
1200x800x500 |
1600x800x500 |
2000x1000x500 |
||||
|
External Dimension WxHxD (mm) |
1100x600x1200 |
1400x950x1200 |
1900x1300x1400 |
2300x1300x1400 |
2700x1500x1500 |
||||
Lab Temperature |
Saline test (NSS ACSS) 35±1 °C ;Corrosion Test (CASS) 50±1 °C |
||||||||
|
Pressure Bucket Temperature |
Saline test method (NSS ACSS) 47±1 °C ; Corrosion Test (CASS) 63±1 °C |
||||||||
Lab Capacity(L) |
110 |
270 |
500 |
800 |
1500 |
||||
Saline Capacity(L) |
15 |
25 |
40 |
40 |
40 |
||||
Saline Concentration |
5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O |
||||||||
|
Compressed Air Pressure(Kgf) |
1.0~6.0 |
||||||||
Spray Volume |
1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value) |
||||||||
Spray Mode |
Continuous Spraying or Programmable Spraying |
||||||||
Power |
AC220V |
||||||||
Weight(Kg) |
65 |
80 |
120 |
160 |
200 |
||||

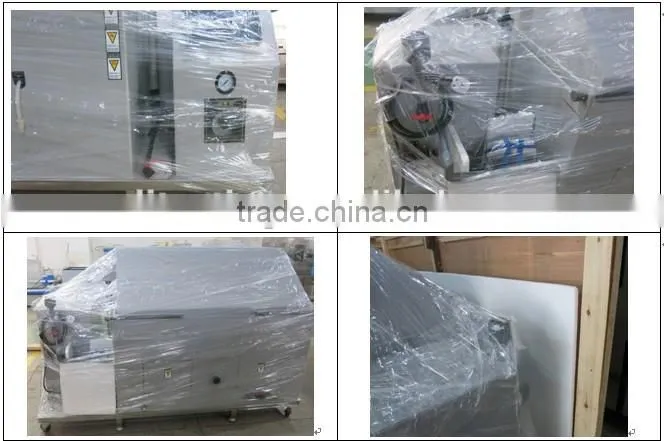

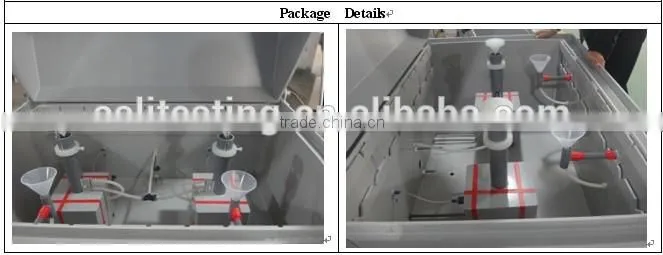

More pictures for Continuously Salt Spray Tester :
ASLi Service for Continuously Salt Spray Tester :
1. One year free warranty
2. Feedback within one workday
3. Third pary calibration report
ASLi Factory:
ASLI Certification:
