Salt Spray Corrosion Test Chamber
ASLI, as a leading salt spray corrosion test chamber supplier from China, has more than 25 year’s experience in salt spray corrosion test chamber manufacture. ASLI boost his own technical team in salt spray corrosion test chamber R&D, and it also introduces the advance quality control method in salt spray corrosion test chamber production. Our salt spray corrosion test chamber series products are in compliance with the industrial standards, IE, ISO, ASMT, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA and CEN.
Salt Spray Corrosion Test Chamber Features
1.Adopt Humidity and temperature controller with LCD touch screen digital display, R232 or R485
communication interface. (Temperature and humidity recorder, can keep complete records of the humidity
and temperature graphs. This is optional.)
2.Salt spray test chamber operation mode: programmable or constant
3 Capacity of programmable operation is 100 groups 100 steps per group, and 100H per step
4.Capacity of constant operation is 10000H.
5. Memory function: in case of a power cut, the machine can resume the unfinished test as soon as power is
recovered.
Salt Spray Corrosion Test Chamber Parameters:
Model |
SH-60 |
SH-90 |
SH-120 |
SH-160 |
SH-200 |
||||
Internal Dimension WxHxD (mm) |
600x450x400 |
900x600x500 |
1200x800x500 |
1600x800x500 |
2000x1000x500 |
||||
External Dimension WxHxD (mm) |
1100x600x1200 |
1400x950x1200 |
1900x1300x1400 |
2300x1300x1400 |
2700x1500x1500 |
||||
Lab Temperature |
Saline test (NSS ACSS) 35±1 °C ;Corrosion Test (CASS)50±1 °C |
||||||||
Pressure Bucket Temperature |
Saline test method (NSS ACSS) 47±1 °C / Corrosion Test (CASS)63±1 °C |
||||||||
Lab Capacity(L) |
110 |
270 |
500 |
800 |
1500 |
||||
Saline Capacity(L) |
15 |
25 |
40 |
40 |
40 |
||||
Saline Concentration |
5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O |
||||||||
Compressed Air Pressure(Kgf) |
1.0~6.0 |
||||||||
Spray Volume |
1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value) |
||||||||
Spray Form |
Continuous Spraying or Programmable Spraying |
||||||||
Power |
AC220V 1 Ph 3 lines15A |
||||||||
Weight(Kg) |
65 |
80 |
120 |
160 |
200 |
||||
Salt Spray Corrosion Test Chamber Application:
Salt spray corrosion test chamber is used for imitating natural status in increase imitation test. The
imitating condition is harder than status that we usually meet. The tester can combine the follow status
such as: salt smog, dry, humidity, normal temperature, low temperature.The tester is for product used in intense
changeable environment,such as: parts of automobile, navigation equipment, camera equipment, building
material, electroplate coatingand resistant to metal electrolytic corrosion in electrical system.

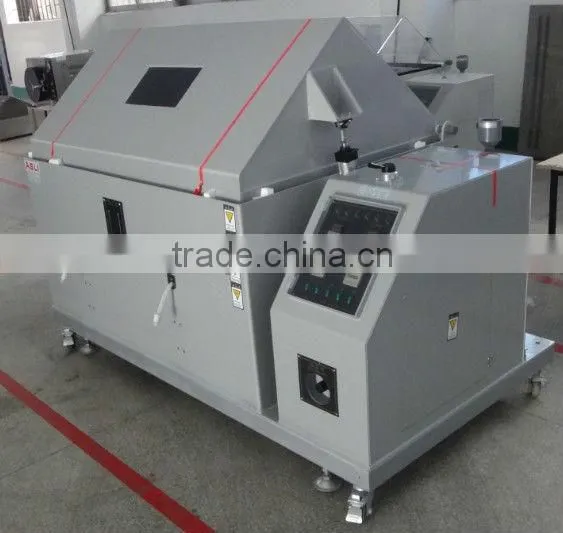

More Pictures of salt spray corrosion test chamber for your reference :
...
