New Generation SMD IR Led Low Cost 1.3mp Mini AHD Dome Camera ISO China Factory Camera
> 1/3" 1.3Megapixel Color CMOS
> Min. illumination : 0.01Lux/F1.2(0Lux IR ON)
> UP to 15 meters IR Distance
> IR cut function ,Day @ Night surveillance
> Non coding compression ,High efficiency, without delay real-time transmission
> Up to 300 meters lossless transmission with 75-3 coax
> Compatible with normal D1/960H
> Support 2D noise reduction, Lightning protection , anti-fog function, UTC
> Metal housing ,Inner line bracket ,multiple angle adjustable
> Manual Varifocal lens can be adjusted Internal
> Waterproof Level : IP66
Model |
GW-HD18AC72-AHD |
Camera | |
Image Sensor |
1/3" 1.3Megapixel pixel Sony CMOS |
Resolution |
AHD 720P / CVBS 800 TVL |
Effective Pixels |
1305(H)×977(V) |
Electronic Shutter |
PAL:1/50 ~ 1/100,000s NTSC:1/60 ~ 1/100,000s |
System |
PAL/NTSC |
Min. Illumination |
0.01Lux F1.2(AGC ON), 0Lux IR on |
Video Output |
1.0Vp-p composite output, 75Ω |
Camera Features | |
Max. IR LED Distance |
15m |
Day/Night |
ICR switch |
S/N Ratio |
≥60dB(AGC Off) |
White Balance |
Auto |
WDR |
Digital WDR |
Frame accumulation |
0-30X |
2D-DNR |
Off/Low/Middle/High |
Image Freeze |
Support |
BLC/HLC |
Support |
Anti-fog |
0-2 grade |
Mirroring |
Horizontal mirror/vertical mirror |
Privacy Mack |
Support |
OSD |
Support |
Lens | |
Focal length |
3.6/6mm Fixed lens(M12) |
General | |
Power Supply |
DC12V±10% |
Power Consumption |
<5W |
Working Environment |
-20°C~+60°C |
Transmission Distance |
Over 300m via 75-3 coaxial cable |

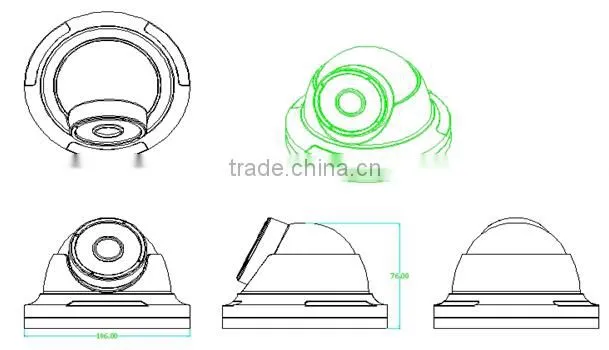

Size |
106x106x76mm |
Weight |
0.3KG |
Language |
Chinese / English / German / French / Italian / Spanish / Portuguese / Russian / Dutch / Turkish / Poland |
Humidity |
Relative humidity below 90% |
1. Client Management Software
2. Web Interface
Welcome to visit us!
1. Our office building:
2. Our Factory with ISO certificate:
A. Raw Materials
Raw Materials sourced from trusted suppliers. Main raw materials like sensor, chipset and lens, we source from Sony, Ti and Aptina...
B. Assembling
we have a perfect management system in conformity with 6S methodology in manufacturing management to ensure that factory is really safe and clean.
C. Aging Products
24 hours aging testing precedure avoid defects, and make sure excellent performance of our products.
D. OEM&ODM
Customer LOGO can be printed on goods/color box/labels upon confirmed.
E. Quality Test
Company invests abundant capital in advanced testing equipments to ensure products quality. Test including: Waterspray test, Constant temperature and moisture test, Transportation simulation test, Salt spray test, etc.
F. Packaging
Camera/NVR/DVR are packed with foam in individual color box, then color boxes are packaged in cartons, and all cartons having loading belt.
3. Exhibitions:
We participate various of exhibitions every year, you can find us at CPSE in China, ISC in America, IFSEC
in Britain, INTERSEC in Dubai, Security Essen in Germany, ISAF in Turkey, etc. …
FAQ
1. Payment
What are the terms of payments you offer?
We accept payment via T/T, Paypal, Westunion,L/C etc
2. Shipment
How long will it takes to deliver goods?
We will deliver your goods within 7-10 working days after an order confirmed
What kind of packaging you offer?
We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.
What kind of transportation methods you offer?
A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.
B. We also can deliver your goods by air and sea as your request.
