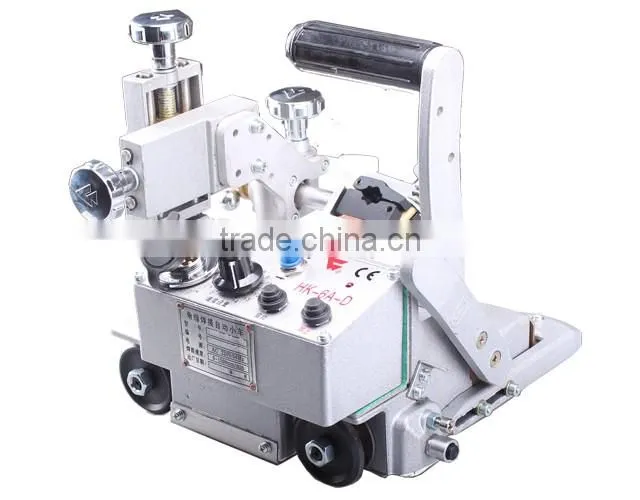

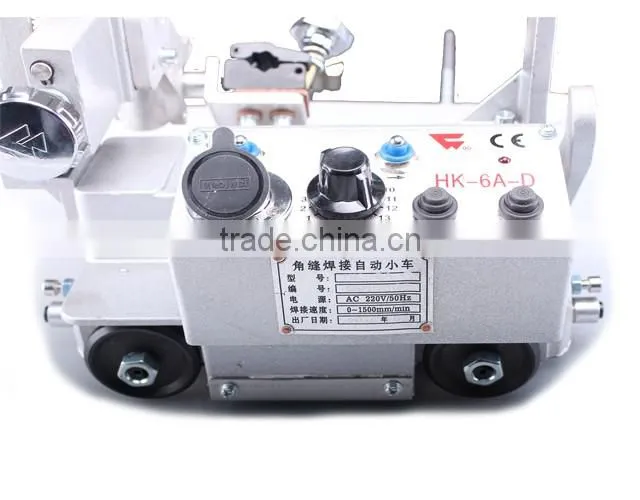

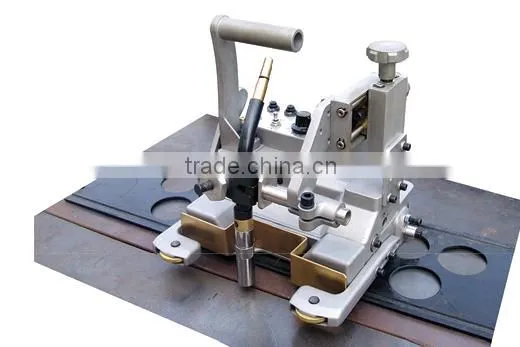

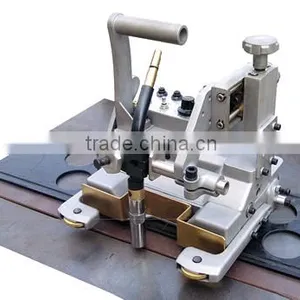

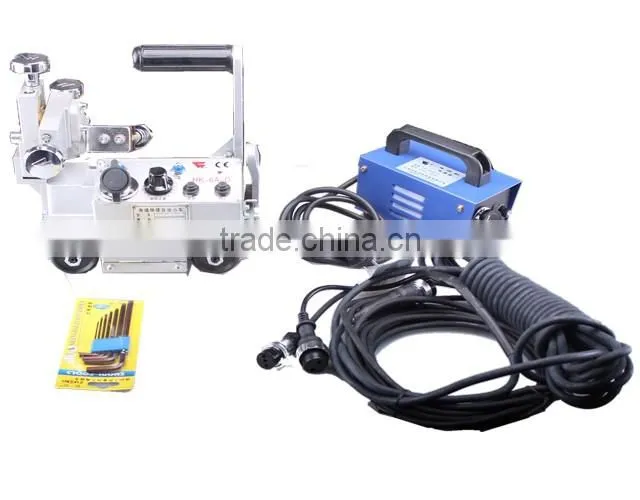

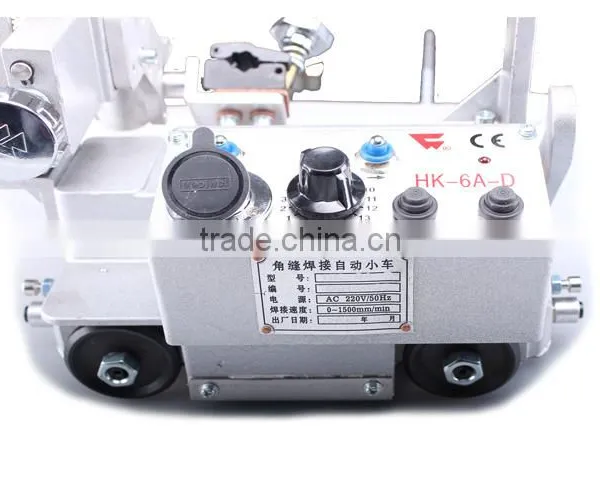

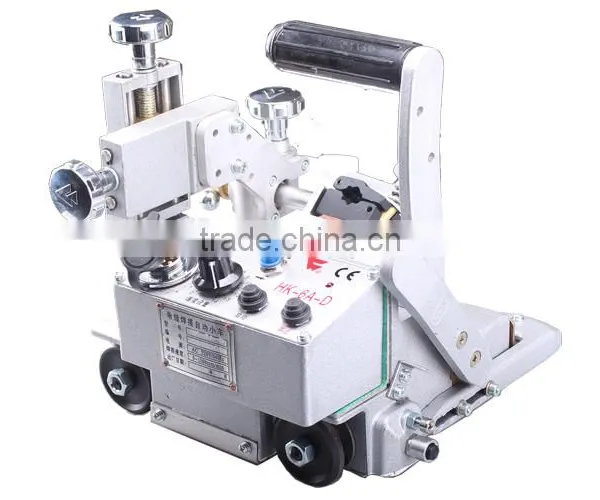

Flat Angle Automatic Welding Carriage HK-6A-D

Name: Flat Angle Automatic Welding Carriage HK-6A-D
Brand: YILANG
SKU: 110159093
Availability: InStock

US$ 730 - 800 MOQ: 1 Set

Key Specifications

Place of Origin:

China

Brand Name:

YILANG

Model Number:

HK-6A-D

Nanning ChuanJun Welding Hardware Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name YILANG

Model Number HK-6A-D

Voltage 220/50V/HZ

Current 20A

Rated Capacity Standard

Rated Duty Cycle 60%

Dimensions 259*259*264mm(L*W*H)

Weight 6.9Kg

Usage Welding Machine

Certification CE ISO, CE

After-sales Service Provided No overseas service provided

Flat Angle Automatic Welding Carriage HK-6A-D

Product Description

Specification

Weight	6.9 Kg
Driving method	Four ferrous rims driving
Hauling power	16 Kg
Running speed	150~~1500 (mm/min)
Tracking mode	Guide wheel type
Height of torch	Three chooses
Adjusting scope of torch	Horizontal angle: 40°~55° Up /down moving: 45mm Front/rear moving: 45mm
Torch	Bended welding torch or straight welding torch
Locked equipment of torch	Suit for bended welding torch or straight welding torch
Needed welding length	Front-end:127mm; end:127mm
Self-stop function	By spacing parts of front-end and after end.
Size(lengthwidthheight)	259x259x264 mm

Features

1) Small capacity, low gravity center, lightweight, portable.

2) High magnetism magnet increases dependability of operating and draft load to assure the machine operates smoothly.

3) It can operate many machines on the base of increase dependability of operating and self-stop function.

4) The guide transfer switch can make it move toward right/left.

5) Guide equipment is screw lockage-on type. Guide wheel’s height can be modified by three methods.

6) New spacing switch system increases the limited height of distance plate.

7) All of the top characters are wonderful on the aspect of “effective welding” and “operated by primary person”.

Packaging & Shipping

Packaging
Size	259259264mm(LWH)
Weight	6.9Kg
Packaging details	The normal package is carton or wooden box(Size:LWH).If export to Euroean countries, the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request.
