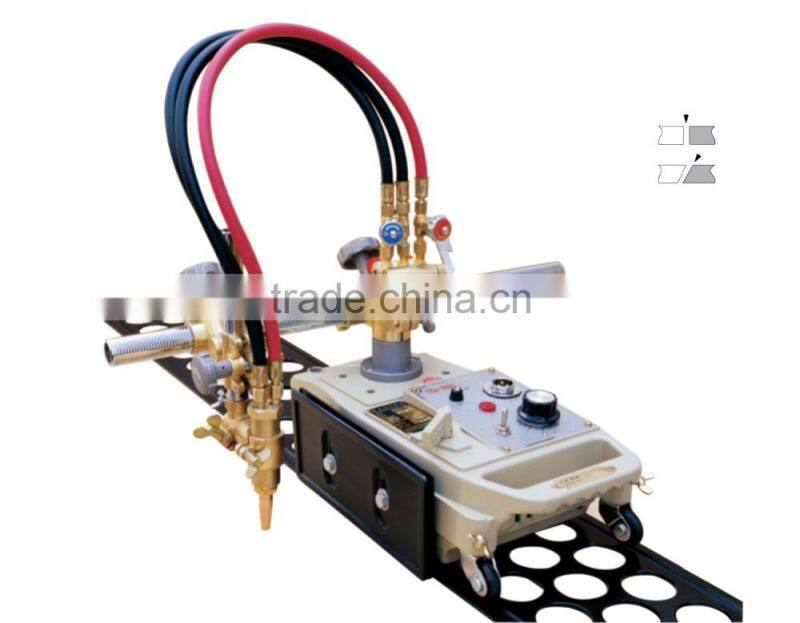

CG1-30H Durable Type Straight Line Gas Cutter Machine
“CG1-30H”portable gas cutter is the new product developed of our Company. We improve many technology and craft under the guidance of the customers. Because using the new material and request the processing technical strictly, the operability and durability and heat-insulating property have big advance.
Specifications
1 Weight (body) |
16kilograms |
Accessory |
7.8 kilograms |
2 Machine dimension |
435×210×240 mm (body) |
3 Speed control |
SCR control |
4 Power source |
AC 220V±10% |
5 Cutting speed |
50-750mm/min |
6 Cutting thickness |
5-100mm |
7 Bevel angle |
0~45° |
8 Cutting steel pipe diameter |
200mm-2000mm |
9 Tip |
GO2( for acetylene) or GO3(for propane) |

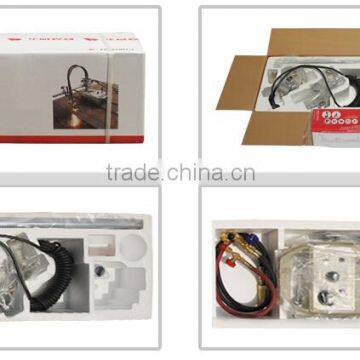

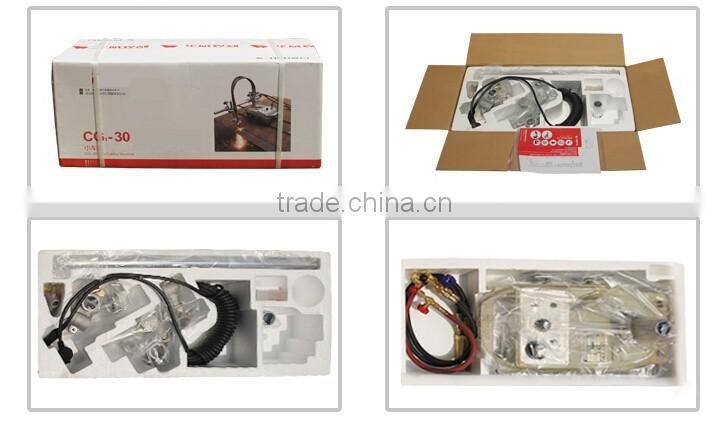

Contents of package
1. Body: |
1 set |
2. Torch: |
1 set |
3. Tip: |
1 pc each |
4. Spanner |
1 set |
5. Up-down moving seat |
1 set |
6. Right-left moving seat |
1 set |
7. Power cable |
1 pc |
8. Attachment screw |
1 pc |
9. Manuel and certificate of qualification |
1 pc each |
10. Gas-in junction |
1 set |
11. Bulb screw M4 |
2 sets |
Standard accessories | |
1. Radius staff |
1 pc |
2. Slide way of groove |
1pcs |

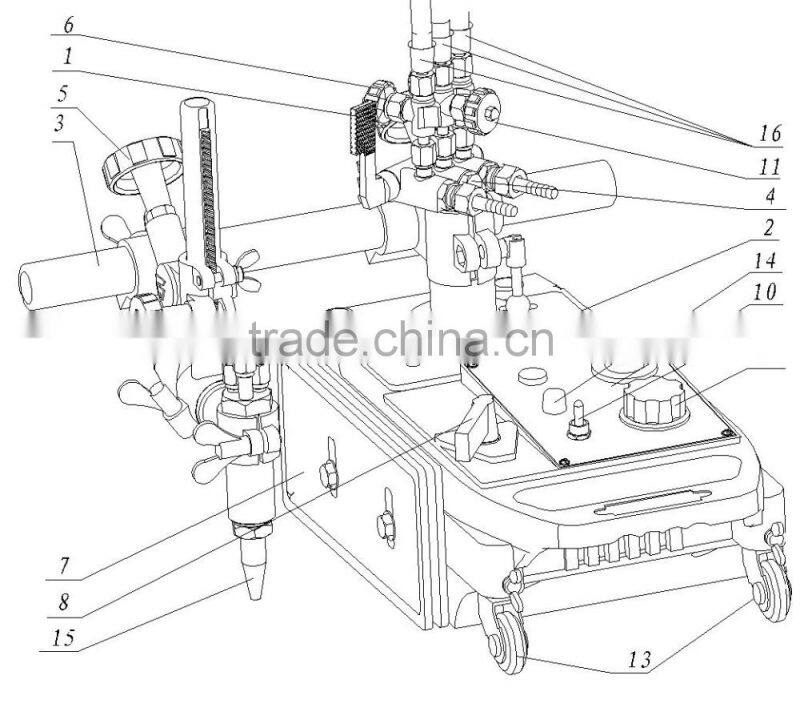

Diagram for this gas cutter machine:
1. Fast on-off hand knob
The hand knob contains three steps: close, preheat, cut. When it is on the close step, the machine will close all gas.
2. Body
3. Traversing gear rack
4.Gas allotter
5. Traversing hand wheel
6. Fuel gas two-port valve
Modulate the bulk of the gas-flow rate
7. Thermal baffle: Prevent the heat from diffusing into the machine.
8. Clutch hand knob
9. Velocity modulation hand wheel
Modulate the speed of travel of the machine.
10.Power outlet
11. Preheat oxygen valve
12.Motor.Backward/Forword conversion switch
13. Universal wheel
14. Fuse
15.Tip
16.The hose transported the gas
