Advantages of stone crushing plant:
Juxin machinery provides a complete line of stone production; the output is widely used in road, bridge, house, high building, railway, highway, water project as the type of construction material, such as aggregate, foundation stone, etc.

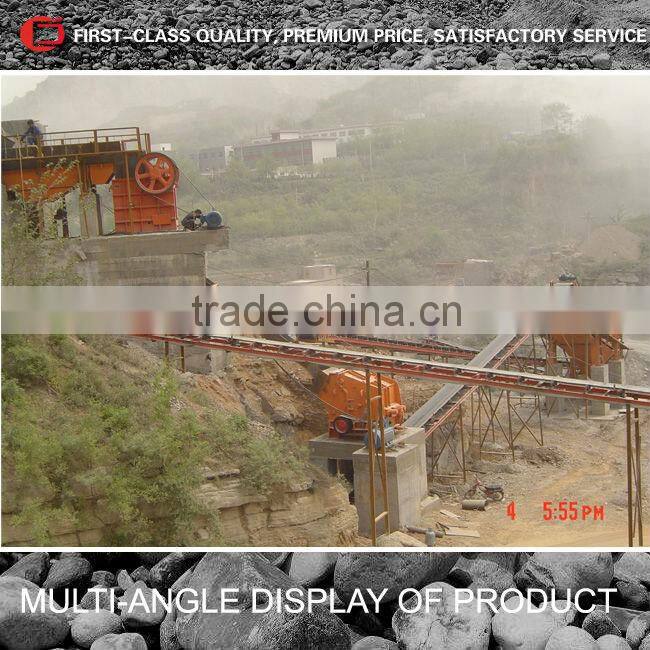

Working principle of stone crushing plant :

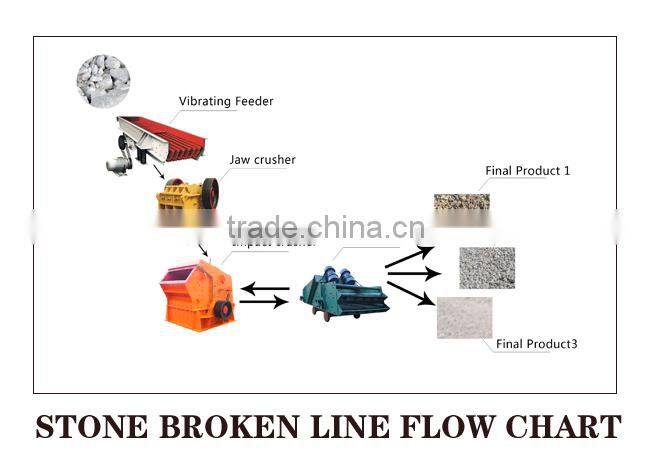

Big materials are fed to the jaw crusher of New stone crushing plant evenly and gradually by vibrating feeder through a hopper for primary crushing. After first crush, the material will transferred to impact crusher by belt conveyor for secondary crush; the crushed materials will then transferred tovibrating screen for separating.This step is very important in New stone crushing plant . After separating, the parts that can meet standard will be transferred away as final products, while the other parts will be returned to impact crusher, thus forming a closed circuit. Size of final products can be combined and graded according tocustomers specific requirement. We can also equip dust catcher systemto protect environment.
Feature of stone crushing plant:
1. V-shaped structure crushing cavity is able to meet a big feeding.
2. Movable jaw assembly adopts a high-quality steel casting and heavy eccentric shaft has also adopted forging billet for processing.
3. Use of finite element analysis technology helps to reach both light weight and high reliability.
4.Equipped with wedge adjustment devices, enable to realize automatic control and stepless adjustment.
Stone crusher plant Technical Parameters:
No. |
Maximum |
Capacity |
Main equipment Model/Spec./Quantity |
|||||
Vibrating feeder |
Jaw crusher |
Impact crusher |
Vibrating screen |
Belt |
Installed |
|||
1 |
340 |
30 |
GZD2511(3kw) |
PE400×600(30kw) |
PF1007(45kw) |
3YZ1236(15kw) |
60-90(20kw) |
120 |
2 |
340 |
50 |
GZD3117(10kw) |
PE400×600(30kw) |
PF1007(45kw) |
3YZ1545(22kw) |
100-130(30kw) |
140 |
3 |
420 |
80 |
GZD3617(10kw) |
PE500×750(55kw) |
PF1010(75kw) |
3YZ1548(22kw) |
130-160(30kw) |
200 |
4 |
480 |
100 |
GZD4321(13kw) |
PE600×900(75kw) |
PF1210(130kw) |
3YZ1548(22kw) |
140-180(40kw) |
280 |
5 |
560 |
150 |
GZD4321(13kw) |
PE750×1060(90kw) |
PF1210(130kw) |
3YZ1845(22kw) |
200-240(50kw) |
300 |
6 |
630 |
200 |
GZD4321(13kw) |
PE900×1060(110kw) |
PFB1212(140kw) |
3YZ2050(30kw) |
200(40kw) |
350 |
7 |
630 |
250 |
GZD5027(17kw) |
PE900×1060(110kw) |
PFB1214(180kw) |
3YZ2050(30kw) |
200(40kw) |
400 |
8 |
630 |
300 |
GZD5027(17kw) |
PE900×1200(110kw) |
PFB1214(180kw) |
3YZ2160(30kw) |
250(50kw) |
450 |
9 |
700 |
350 |
GZD5027(17kw) |
PE1000×1200(132kw) |
PFB1315(250kw) |
3YZ2160(30kw) |
250(50kw) |
500 |
10 |
700 |
450 |
GZD6223(28kw) |
PE1000×1200(132kw) |
PFB1214/2(300kw) |
3YZ2145/2(60kw) |
350(60kw) |
600 |
| Packaging Details: | standard packing for sea shipping or according your requirement |
| Shipping Detail: | 30 working days after receipt of the advance payment by sea(LCL or FCL) |
Pre-sale:Enthusiastic
We offer you the early planing of the project,the best process flow design,choose the best appropriate equipment model to design products according to your special needs.
All productds have to pass strict inspection with the drawings and process flow according to the contract before
After-sale:Considerate
To establish good business relationship,we adopt periodical visit to the users.We could give you the definite reply during 24 hours when the users meet some problems in the producing process.
Attention
1.We should install the machine under shelter from rain and do not put it in the open air directly.
2.Electric motor should be installed in the rear of the crusher and the direction of rotation should be consistent
with the crusher. Reverse is forbidden.
3.The machine has six ground screws fixed on the concrete flood. The foundation need a place left for
discharging the ore stone and the scope is not less than 50°. The base form should be decided by the users
according the model of the feeder and transportation facilities.
4.Before debugging the equipment, we should tighten the screws and connect parts and check the lubrication
conditions.
5.After launching, the machine should reach normal speed before feeding. The material should be inserted
from the front and do not from the side in case of overload caused the accident.
6.Feeding must be stopped before stopping the machine. Only all the material have been broken is spit out
entirely, stopping working is available.
Q:Payment
A:30% by TT as deposit on signing the contract, 70% by as final payment of balance after the client’s satisfactory inspection of the equipment prior to the goods leaving the factory.
Q: What about Warranty? what will we do if the machine is broken down
A: The warranty period for all of structural and mechanical equipment is one year. The warranty period for all electric motors is half one year. Wear parts are not covered by warranty unless the component part is found to be flawed.
Q: What should we need to do for if we want to get a best quotation
A: Hi, if you want us recommend a suitable type for you ,please let us know as follows:
1).the capacity (tons per hour )
2).feed size
3).output size
4).stone type
Q: What could you help me to do for the business ?
A: Many thanks for your trust , we can provide you with proposal chart for complete production lines,spot inspection and operator traning according to your demands and the conditions of applied spot , we can help you choose the right equipments ,drilling rig ,loader ,trucks ,excavators and so on for rotary washer for sand washing.
Q:Delivery time
A: Standard delivery time is 30 days from receipt of deposit,the special required machine is 45 days.
