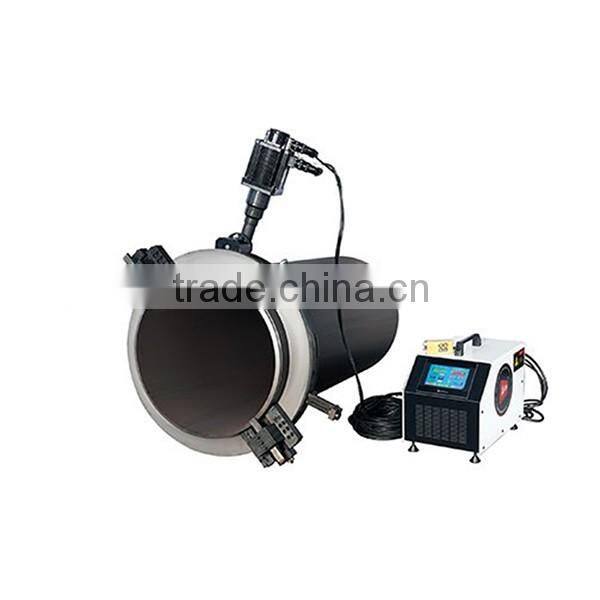

SKD external installation CNC pipe cutting pipe beveling machine
Product performance:
1.Automatic feeding, without manual adjustment, high efficiency and high quality;
2.A fixture can realize cutting groove processing;
3.Cutting groove processing fast safety of all kinds of piping, pressure vessel and steam generator;
4.The cutting groove processing of carbon steel, alloy steel, stainless steel pipe is suitable for various grades of;
5.According to the customer request processing of different forms of groove: "U" single "V" double "V" and "J", completely cold cutting way, without changing the material of the pipe.
6.Processing range: diameter from 10mm to 2500mm, can be selection processing.
Feature:
Portable groove cutting equipment, equipped with large power servo motor, adjustable cutting speed. With a relatively light weight, small radial space and convenient use.
More specification of HYD series pipe beveling machine for you reference:
Metric system:
Power |
Processing range (External diameter mm) |
Beveling thickness(mm) |
SKD-80 |
10-80 |
≤25 |
SKD-150 |
65-150 |
≤25 |
SKD-300 |
150-300 |
≤25 |
SKD-450 |
300-450 |
≤25 |
SKD-600 |
450-600 |
≤25 |
SKD-750 |
600-750 |
≤25 |
SKD-900 |
750-900 |
≤25 |
SKD-1050 |
900-1050 |
≤25 |
SKD-1160 |
980-1160 |
≤25 |
SKD-1240 |
1120-1240 |
≤25 |
SKD-1300 |
1150-1300 |
≤25 |
SKD-1500 |
1300-1500 |
≤25 |
British system:
Power |
Processing range (External diameter mm) |
Beveling thickness(mm) |
SKD-168 |
25.4-168.3mm[1"-6"] |
≤1" |
SKD-219 |
50.8-219mm[2"-8"] |
≤1" |
SKD-273 |
114.3-273mm[4"-10"] |
≤1" |
SKD-323 |
168.3-323mm[6"-12"] |
≤1" |
SKD-355 |
177.8-355.64mm[7"-14"] |
≤1" |
SKD-406 |
254-406.4mm[10"-16"] |
≤1" |
SKD-457 |
323.9-457.2mm[12"-18"] |
≤1" |
SKD-508 |
355.6-508mm[14"-20"] |
≤1" |
SKD-610 |
457.2-609.6(mm[18"-24"] |
≤1’ |
SKD-762 |
609.6-762mm[24"-30"] |
≤1" |
SKD-914 |
762-914.4mm[30"-36"] |
≤1" |
SKD-1066 |
914.4-1066.8mm[36"-42"] |
≤1" |
SKD-1220 |
1066.8-1219.2mm[42"-48"] |
≤1" |
NOTE:More than 1000mm pipe diameter should use hydrauli drive or CN.

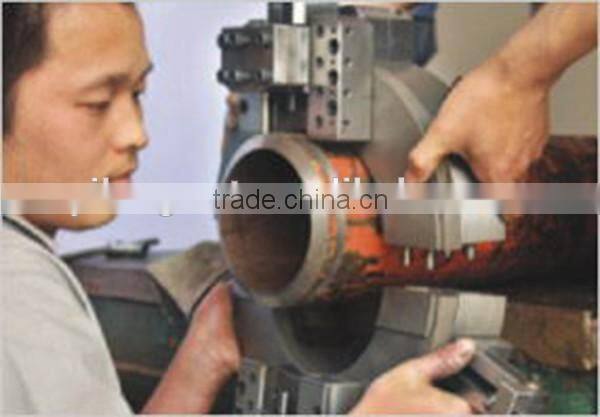

Field processing,Regular groove,No burr,Convenient welding

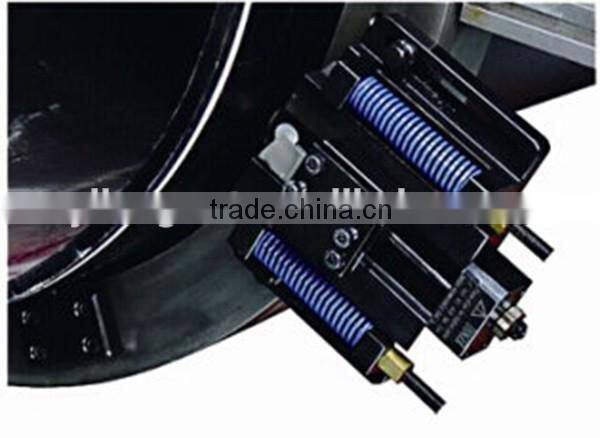

Bhave to open the body,The split is installed in the pipeline in any position,Fast and convenient

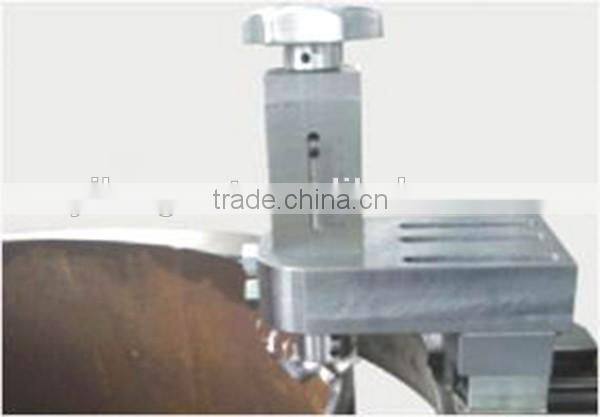

Trajectory tracking tool, can prcess the deformation of the pipe and Elliptic pipe

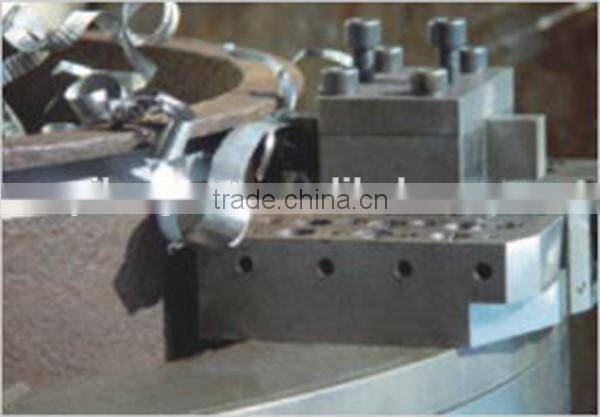

Groove knife, complete groove pipe wall
More products for you choose----You can click on the Title to get more information.
| Welding Machine(MMA/ TIG/ MIG/ MAG) | Flame Cutting Machine | Plasma Cutting Machine |
| Oxygen Hose | Acetylene Tube | Electrode Holder |
| Regulator | Cutting Torch | Welding Torch |
| Cutting Nozzle | Electrode Dryer | Electrode Oven |
| Welding Tractor | Bosch Power tools | Beveling Machine |
Petroleum, natural gas, chemical, food, pharmaceutical, boiler, shipbuilding, nuclear power industry, stadium construction installation and repair work
On time delivery
High quality
Wholesale price
Perfect packing
Shipping :
We can arrange the shipping by Courier (DHL, UPS, Fedex, TNT etc.) by air or by sea for you. Pls tell us which shipping way that you want and your detailed address, your nearest airport or seaport.
Packing:
After quality testing,our products will be well packed.
First plastic film inside
Then Packed by EPE foam
Free fumigation wooden carton outside
About us:
Nanning ChuanJun Welding Hardware Co., Ltd.founded in 2004,has been focused on welding equipment and accessory for more than 10 years. ChuanJun is member of the China Welding Association. Providing system services for enterprises needed.Our company mainly produce welding equipment, hardware and electrical equipment, building decoration materials, welding equipment leasing, and so on.
Our products below:
Welding machines: mma, mig, tig welders
Cutting machines: air plasma cutter, flame cutting machine, and CNC cutters.
Welding & cutting accessories: welding torch, cutting torch, cutting nozzle, conductive nozzle, protective cover, diverter, earth cable, gas regulator, pipe, gas bottle, electrode oven, welding rod drying box, welding helmet, protection gloves and glasses.
Welding material: kinds of welding wires and welding rod
Industrial tools: Bosch power tools, beveling machines, other hand tools.
ower tools, beveling machines, other hand tools.
Please feel free to contact us if you have any problems!
