With High Efficiency Hematite Wet Magnetic Separator

hematite wet magnetic separator

Hematite magnetic separator Function

There are a lot of hematite separator type, the CTB type semi counter flow wet magnetic separator is a kind of common.The machine is suitable for the wet separation of ore size below 0.5mm selection of materials, especially suitable for particle size of 0.15~0mm mineral,and is suitable for the removal of strong magnetic minerals that mixed in the non-magnetic minerals .This machine can continuously to ore and ore discharge, magnetic field intensity is big, the high gradient, and also has high processing ability. It can conduct multi machine in series and parallel, realize multiple sweeping and cleaning.

Hematite magnetic separator Structure

Hematite magnetic separator is mainly composed of a cylinder, a roller, brush roller, a magnetic system, a tank body, a transmission part is composed of 6 parts.

Hematite magnetic separator Working principle

When the pulp into the magnetic field, the strongly magnetic minerals are adsorbed on the surface of the cylinder, weak magnetic and non-magnetic minerals are washed away by water,the magnetic minerals adsorbed on the surface of the cylindrical with cylinder rotation is taken out of the magnetic field,then washed by flushing water into a concentrate trough,to complete the sorting operation so far.

Manufacturing Process for hematite magnetic separator

Stock of Hematite magnetic separator

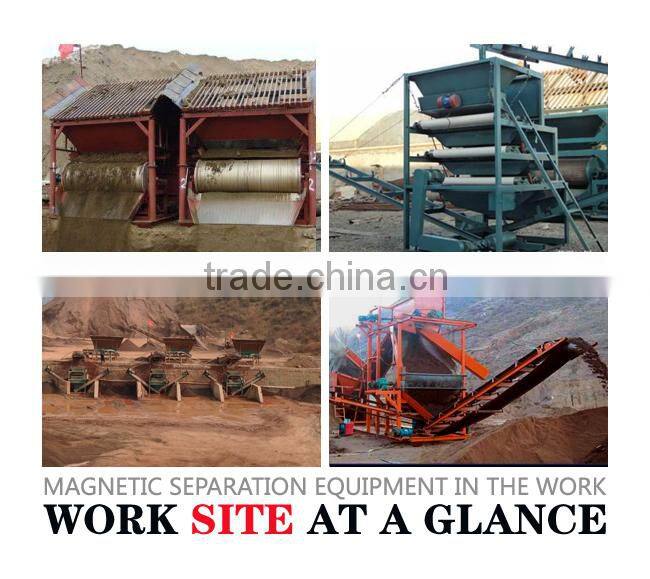

Worksite of  hematite magnetic separator
