Water Concentration Limonite Wet Type Magnetic Separator

limonite wet magnetic separator

Limonite Wet Magnetic Separator Function

Many use the wet magnetic separator for separating limonite users. Our company CTB series wet magnetic separator for R & D in a lot of users after use, have been highly recognized. CTB series wet magnetic separator which belongs to the high magnetic field device, and is suitable for low grade, weak magnetic ferrous metal ore beneficiation can improve the wet, disposable 10-20 metal ore grade.

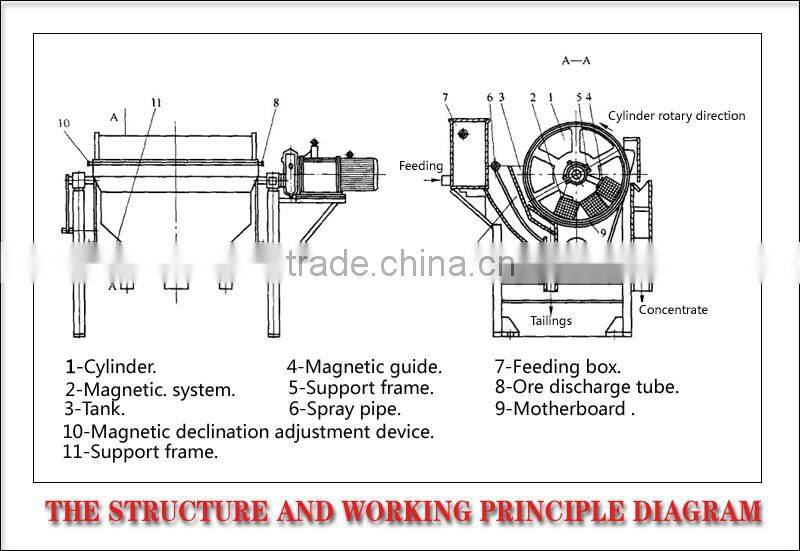

Limonite Wet Magnetic Separator Structure

Limonite wet magnetic separator is mainly composed of a cylinder, a roller, brush roller, magnetic system, a tank body, a transmission part is composed of 6 parts.

Limonite Wet Magnetic Separator  Working Principle

The pulp through the feeding box flows into the trough, the effect of the water spray pipe to mine, mineral grains are loose state into the slot for mining area. The effect of the magnetic field, the magnetic particles formed magnetic gather happened "magnetic group" or "flux", "magnetic group" or "flux" by the magnetic force in the pulp, poles movement, and is adsorbed on the cylinder. Because the polarity along the cylinder rotating direction are arranged alternately, and fixed at work, "magnetic group" or "flux" with cylinder rotation, because the magnetic poles are alternately generated magnetic stirring phenomenon, be mingled in the "magnetic group" or "flux" of the gangue non-magnetic minerals off down in the flip, eventually being sucked on the surface of the cylinder of the "magnetic group" or "magnetic Ephraim" is concentrate. Concentrate with cylinder turned to the edge of the magnetic force of weakness, in flushing water hoses under the effect of unloading ore is unloaded to the concentrate slot, if all the magnet roller, unloading ore is to use brush roller. The non-magnetic or weakly magnetic minerals in the pulp is left with the pulp is discharged out of the slot, tailings.

 One Cornor of our Workshop

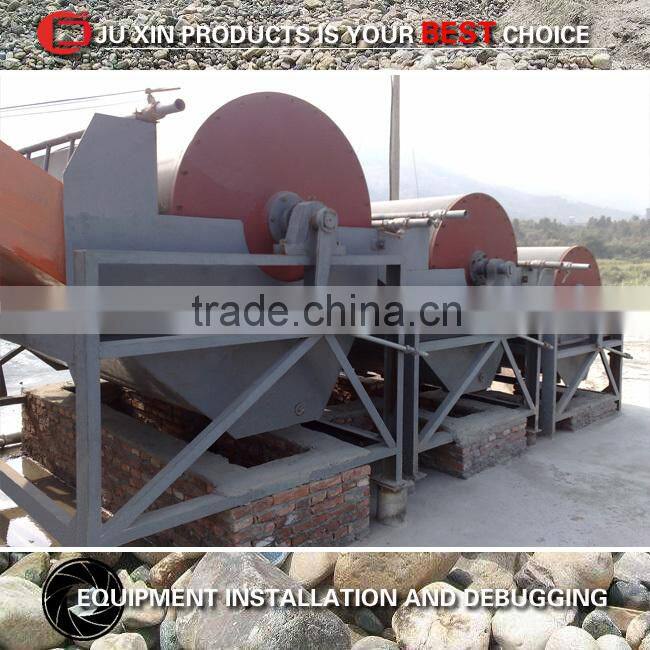

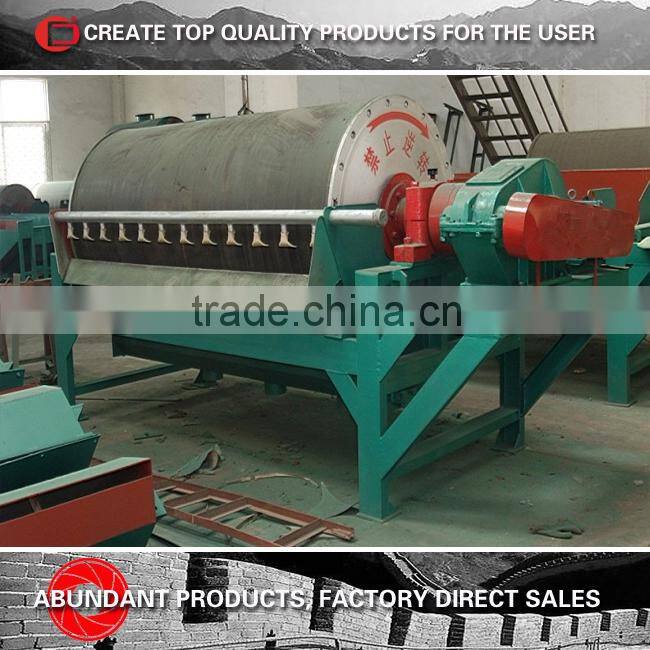

Stock of Limonite Wet Magnetic Separator

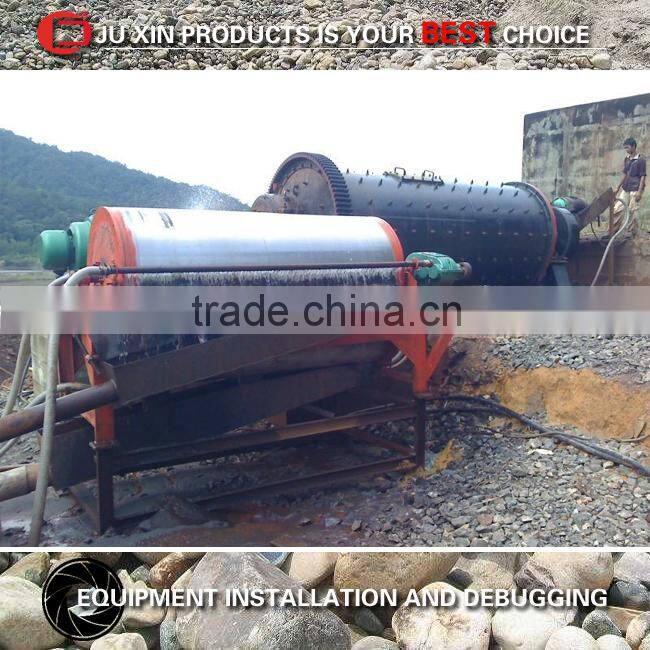

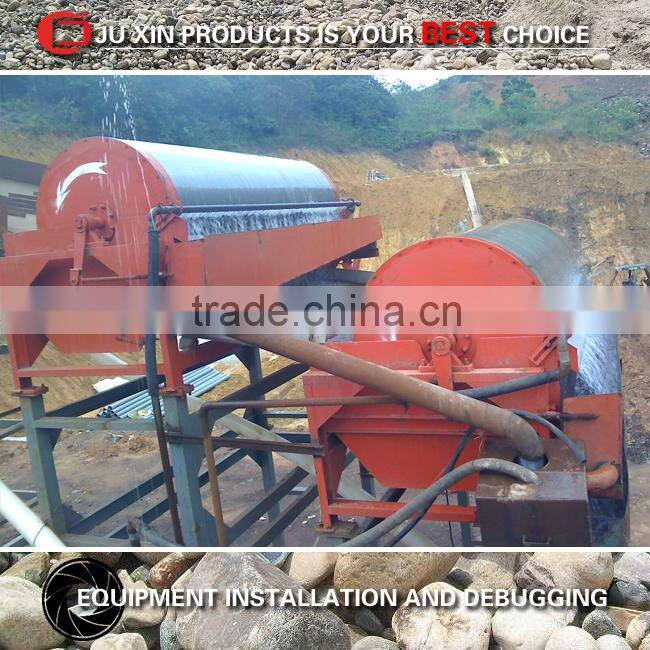

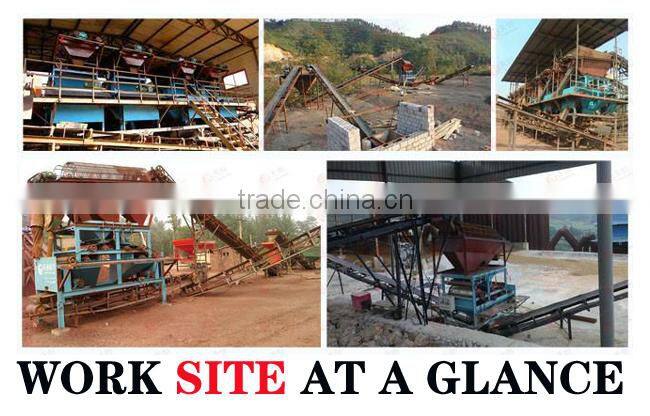

Worksite of Limonite Wet Magnetic Separator
