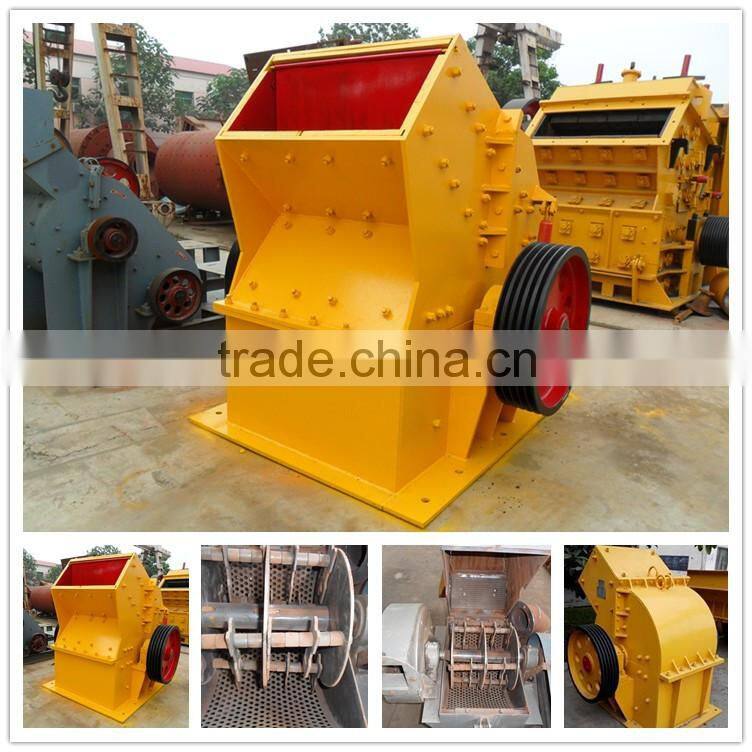

Building Materials Hammer Crusher Introduction
Hammer crusher is designed by Juxin mining machine for crushing all kinds of materials. stone hammer crusheris regarded as the preferred equipments in small sand production line because they have the features of less investment, high efficiency. It is the best choice to produce coarse powder at big capacity.
Building Materials Hammer Crusher Features:
1) Hammer headwork adopt of new technology casting, with wear and impact resistance;2) Adjusting grain size to cater for customers’ need;
3) Seal body structure solved the problems of crushing plant dust pollution and gray body leakage;
Building Materials Hammer Crusher Application:
Specifications:
| Specifications | ||||||||
Model |
Max feeding size |
Discharge Size |
Capacity |
Power |
Weight |
Dimension |
||
| PCΦ400*300 | <200 | <25 | 8-15 | 11 | 0.8 | 760*800*850 | ||
| PCΦ500*350 | <210 | <25 | 12-20 | 18.5 | 1.2 | 870*900*1020 | ||
| PCΦ600*400 | <250 | <30 | 15-30 | 22 | 1.5 | 1100*1000*1230 | ||
| PCΦ800*600 | <300 | <30 | 25-50 | 55 | 2 | 1250*1170*1380 | ||
| PCΦ1000*800 | <300 | <40 | 40-80 | 90 | 4 | 1450*1650*1800 | ||
| PCΦ1000*1000 | <300 | <40 | 60-120 | 110 | 8 | 2150*1940*1920 | ||
| PCΦ1200*1000 | <350 | <40 | 80-150 | 130 | 9.8 | 2450*1970*2220 | ||
| PCΦ1250*1250 | <350 | <40 | 90-150 | 180 | 16 | 2630*2180*2220 | ||
| PCΦ1200*1600 | <350 | <40 | 100-180 | 260 | 23 | 2300*2180*2400 | ||
| PCΦ1400*1400 | <400 | <40 | 120-200 | 280 | 32 | 2790*2800*2310 | ||
| PCΦ1600*1600 | <400 | <40 | 150-300 | 480 | 37.5 | 3350*3120*2660 | ||
The capacity refers to limestone, professing capacity may vary with different materials and feeding size. | ||||||||
Building Materials Hammer Crusher Operating principle:
The motor drives the rotor of the Stone hammer crusher rotate at a high speed through the belt. The materials are sent to the entrance of the hammer crusher. They are crushed by the high speed hammer from blowing, impacting, cutting and grinding. Below the rotor, there sieves, the the little size among the crushing products can be discharged through the sieve. The large size products are brought into the crushing area by the hammer from blowing, grinding until they reached the required size. At last, they are discharged through the sieve.
We offer you the early planing of the project,the best process flow design,choose the best appropriate
Sale: Integrity
All productds have to pass strict inspection with the drawings and process flow according to the contract before they go out. We assigned the technicians to the producing spot to provide installation guide, testing and training.
After-sale:Considerate
To establish good business relationship,we adopt periodical visit to the users.We could give you the definite reply during 24 hours when the users meet some problems in the producing process.
Attention
1, Crusher must be started without load.
2,The machine should be installed under shelter from rain and mustn't be put in the open air directly.
3,Electric motor should be installed in the rear of the crusher and the direction of rotation should be consistent with the crusher. Reverse is forbidden.
4,For the convenient transportation of the crude material , inputing or outputing materials had better use mechanized transport equipment.
5,Before debugging the equipment, we should tighten the screws and connect parts and check the lubrication conditions.
6,Feeding must be stopped before stopping the machine. Only all the material have been broken is spit out entirely, stopping working is available.
Q:Payment
A:30% by TT as deposit on signing the contract, 70% by as final payment of balance after the client’s satisfactory inspection of the equipment prior to the goods leaving the factory.
Q: What about Warranty? what will we do if the machine is broken down
A: The warranty period for all of structural and mechanical equipment is one year. The warranty period for all electric motors is half one year. Wear parts are not covered by warranty unless the component part is found to be flawed.
Q: What should we need to do for if we want to get a best quotation
A: Hi, if you want us recommend a suitable type for you ,please let us know as follows:
1).the capacity (tons per hour )
2).feed size
3).output size
4).stone type
Q: What could you help me to do for the business ?
A: Many thanks for your trust , we can provide you with proposal chart for complete production lines,spot inspection and operator traning according to your demands and the conditions of applied spot , we can help you choose the right equipments ,drilling rig ,loader ,trucks ,excavators and so on for rotary washer for sand washing.
Q:Delivery time
A:Standard delivery time for stationary crusher plant is 30 days from receipt of deposit,the mobile crusher plant is 45 days.
