Hot Sale Biomass Gasification Stove / Biomass Gasifier Cooking Stove

Modle:

GV-JF40A-CS

Use DC power or power bank

Body  Size (cm)

50×40×73

Packing Size (cm)

53×45×51

Weight (Kgs)

40

Blower Voltage

DC12V/6W

Capacity (L)

6.74

Consumption(Kg/h)

0.5-3

Tolerance:-5%/5%

Burning (h)

0.5-3

Size  (cm)

30×36×3

Temperature(℃)

700-1000

Weight(Kgs)

1.6 Kgs

Usage

Suitable for Family and Restaurant

Suitable to all kinds of biomass material. Requirements for material:

(1)Humidity of the raw material<20%.

(2)Raw material size <20mm.If not satisfy, needs to crush and dry first.

(3)Biomass fuel gas composition

H2—12.3%   CO—22.5%   CH4—2.3%   CO2—12.5%    N2—48.8%   O2 1.4%  CH—0.2%.

GV-JF40A Biomass Gasifier Cooking Stove use power adapter and power bank to support generation. Easy to move and carry.

Modle:

GV-JF40B-CS

With Solar Energy Supporting

Body  Size (cm)

50×40×73

Pm

10W

Packing Size (cm)

53×45×51

V

21.24V

Weight (Kgs)

45

Isc

0.66A

Blower Voltage

DC12V/6W

Vm

17.28V

Capacity (L)

6.74

Im

0.58A

Consumption(Kg/h)

0.5-3

Tolerance:-5%/5%

Burning (h)

0.5-3

Size  (cm)

30×36×3

Temperature(℃)

700-1000

Weight(Kgs)

1.6 Kgs

Usage

Suitable for Family and Restaurant

Suitable to all kinds of biomass material. Requirements for material:

(1)Humidity of the raw material<20%.

(2)Raw material size <20mm.If not satisfy, needs to crush and dry first.

(3)Biomass fuel gas composition

H2—12.3%   CO—22.5%   CH4—2.3%   CO2—12.5%    N2—48.8%   O2 1.4%  CH—0.2%.

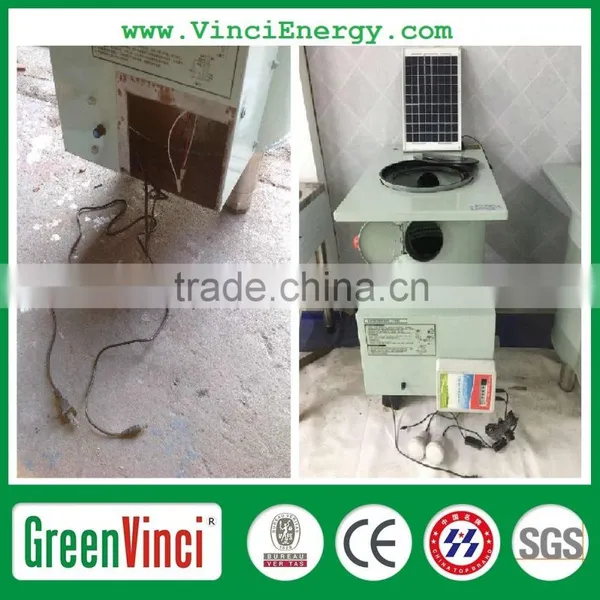

GV-JF40B Biomass Gasifier Cooking Stove supporting by Solar panel to generate with power storage tank. It can use whole week against a day recharge under sun.
