China biomass wood pellet machine / alumium melting furnace for heating system
- 50 Set / Sets per Month
- Foshan/Guangzhou /Shenzhen
- T/T D/P D/A Credit Card
Product Details
| Condition: | New | Type: | Blast Furnace | Usage: | Melting Furnace |
| Place of Origin: | Guangdong, China | Brand Name: | GREENVINCI | Model Number: | GV-500-AL |
| Voltage: | 220/380/415V , 50HZ | Power(W): | 0.75KW | Dimension(L*W*H): | 1800X1600X1800MM |
| Weight: | 2500KG | Certification: | CE/ SGS /BV | Warranty: | one year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
GV-AL series Industrial pellet Aluminum melting furnace

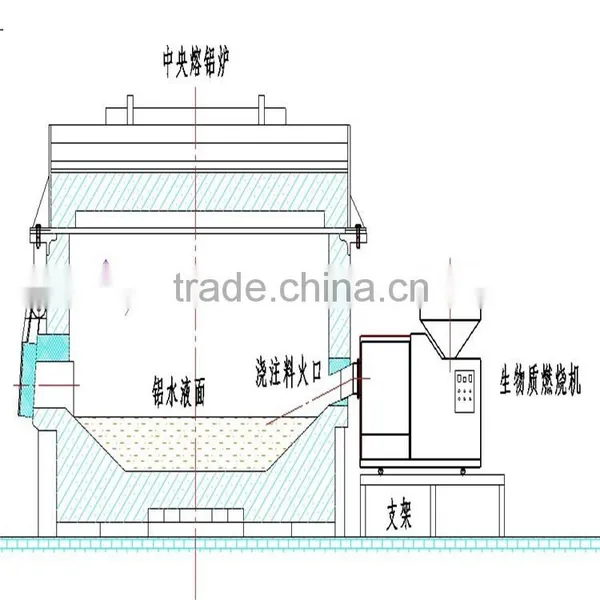

GreenVinci Industrial pellet Aluminum melting furnace is a Crucible furnace, with burning ,melting, holding capabilities , is currently the most perfect design, highest degree of automation, with a number of patented aluminum melting furnace. Mainly used in melting or smelting aluminum, zinc, lead, tin, cadmium and other low-melting non- ferrous metals and alloys, and supporting the use of die-
cast function well; also can be used for liquid aluminum insulation, in addition to gas, refining. With the advantage of high acceptance by operator.
Technical data
Item no. | Melting capacity | Liquid alu capacity | Die-casting machine | Power | Size(LxWxH) | ||
GV-300-AL | 100kg/h | 300kg | 180T-350T | 0.75kw | 1700 | 1600 | 1770 |
GV-500-AL | 150kg/h | 500kg | 350T-500T | 0.75kw | 1800 | 1600 | 1800 |
GV-800-AL | 180kg/h | 800kg | 500T-630T | 1.3kw | 2000 | 1900 | 2150 |
Configuration
| Operative Fule | 6-10 mm wood pellet burner |
| Crucible Capacity | 300 kg / 500 kg / 800 kg |
| Feeding System | Manual / Automatic |
| Damper Adjustment | Manual / Automatic |
| Ignition System | Manual / Automatic |
| Control System | PLC |
| Pot Temperature | 700 ℃ |
| Chamber Temperature | 1300 ℃ |
| Flame Control | Size of the fire can be set |
| Completed Melted Time | 3-4 hours the first pot, 2 hours from the second |
| Other Features | Inspection window in hopper, replace circle oblervation pot in chamber, energy stop, operation mode switching |
Our successful case in Oversea
Greenvinci biomass burner export to Canada, Russia, Ukraine ,Serbia,Bulgaria, India, Pakistan, Vietnam, Indonesia,Philippine, Thailand, Malaysia, Korea and Taiwan ect.
Packaging & Shipping
Company Information
Greenvinci Biomass Machinery Co., Ltd is a leading manufacturer of biomass Energy equipments , located in Foshan city ,with 10 engineers and 50 staffs, established in 2009, producing respectively for pellet burner, gasification burner , biomass hot air generator , aluminum melting furnace and other biomass relative machines.
