Help CenterHot Sale Wood Sawdust Biomass Burner for Aluminum Melting Furnace
Related Products
-
Renewable Energy Biomass Sun Flower Shell Pellet Burner for Aluminium Melting FurnaceUS$ 10,000 - 12,000MOQ: 1 Set -
Energy Saver Biomass Gasifier Furnace With Flash DryerUS$ 10,000 - 12,000MOQ: 1 Set
-
2015 New Automatic Industrial Biomass Wood Pellet Burner Aluminium Melting FurnaceUS$ 10,000 - 12,000MOQ: 1 Set
-
Biomass Wood Chips/ Sawdust Burner Connect With Aluminum Melting Furnace for Malaysia MarketUS$ 10,000 - 12,000MOQ: 1 Set
-
Greenvinci High Quality Automatic Control Biomass Pellet Aluminum Melting Furnace for India MarketUS$ 10,000 - 12,000MOQ: 1 Set

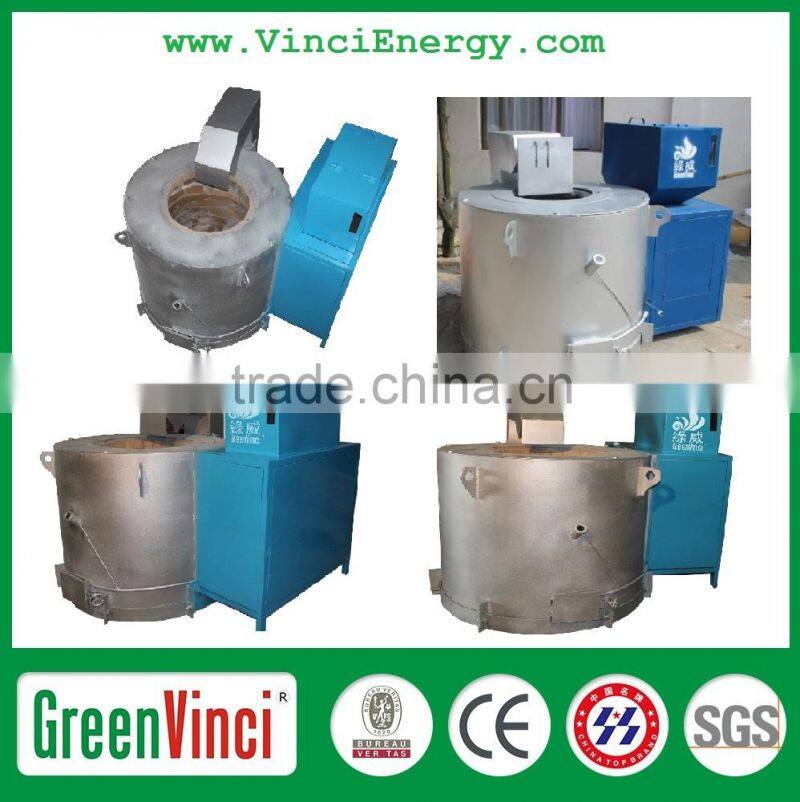

GV-AL series Industrial pellet Aluminum melting furnace

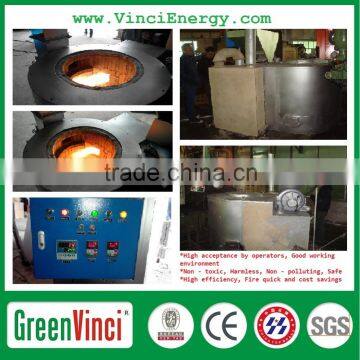

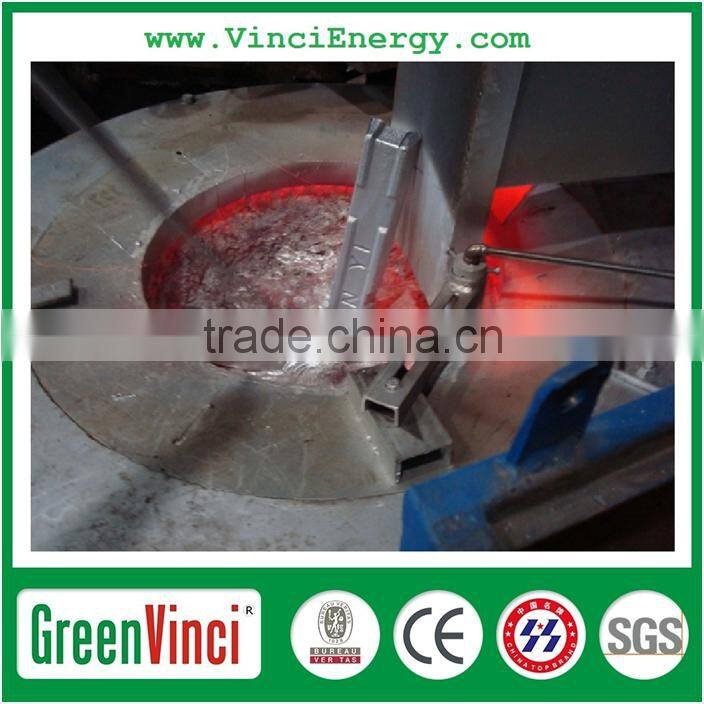

GreenVinci Industrial pellet Aluminum melting furnace is a Crucible furnace, with burning ,melting, holding capabilities , is currently the most perfect design, highest degree of automation, with a number of patented aluminum melting furnace. Mainly used in melting or smelting aluminum, zinc, lead, tin, cadmium and other low-melting non- ferrous metals and alloys, and supporting the use of die-
cast function well; also can be used for liquid aluminum insulation, in addition to gas, refining. With the advantage of high acceptance by operator.
Technical data
Item no. |
Melting capacity |
Liquid alu capacity |
Die-casting machine |
Power |
Size(LxWxH) |
||
GV-300-AL |
100kg/h |
300kg |
180T-350T |
0.75kw |
1700 |
1600 |
1770 |
GV-500-AL |
150kg/h |
500kg |
350T-500T |
0.75kw |
1800 |
1600 |
1800 |
GV-800-AL |
180kg/h |
800kg |
500T-630T |
1.3kw |
2000 |
1900 |
2150 |
Configuration
| Operative Fule | 6-10 mm wood pellet burner |
| Crucible Capacity | 300 kg / 500 kg / 800 kg |
| Feeding System | Manual / Automatic |
| Damper Adjustment | Manual / Automatic |
| Ignition System | Manual / Automatic |
| Control System | PLC |
| Pot Temperature | 700 ℃ |
| Chamber Temperature | 1300 ℃ |
| Flame Control | Size of the fire can be set |
| Completed Melted Time | 3-4 hours the first pot, 2 hours from the second |
| Other Features | Inspection window in hopper, replace circle oblervation pot in chamber, energy stop, operation mode switching |
Our successful case in Oversea
Greenvinci biomass burner export to Canada, Russia, Ukraine ,Serbia,Bulgaria, India, Pakistan, Vietnam, Indonesia,Philippine, Thailand, Malaysia, Korea and Taiwan ect.
Packaging & Shipping
Company Information
Greenvinci Biomass Machinery Co., Ltd is a leading manufacturer of biomass Energy equipments , located in Foshan city ,with 10 engineers and 50 staffs, established in 2009, producing respectively for pellet burner, gasification burner , biomass hot air generator , aluminum melting furnace and other biomass relative machines.
Contact Us:
Customers and Partners: 0086-757-63258876
Mobile:0086-13824419029
Technical Support: 0086-757-63258867 or 0086-400-009-3676
