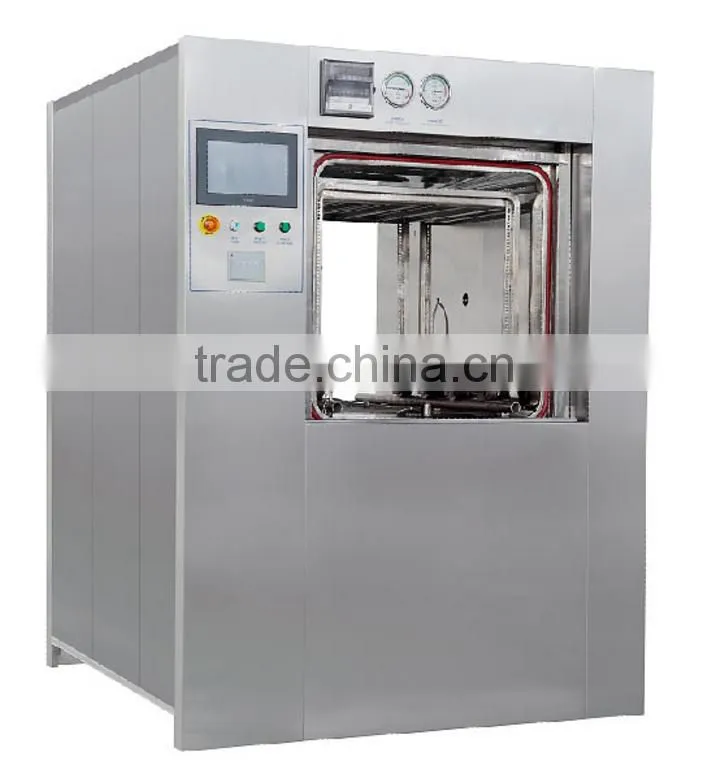

Help CenterSeries Pure Steam Sterilizer KA-TS00022
Related Products
-
Vertical Pressure Steam Sterilizer KA-TS00021US$ 4,000 - 5,200MOQ: 1 Piece -
Series Steam Sterilizer KA-TS00020US$ 4,000 - 5,000MOQ: 1 Piece
-
Vertical Pressure Steam Sterilizer (100L) KA-TS00019US$ 2,000 - 5,000MOQ: 1 Piece
-
Autoclave Pressure Steam Sterilizer With Horizontal TypeUS$ 1,630 - 1,700MOQ: 1 Piece
-
Full Models Autoclave/Steam Sterilizer With CE ConfirmedUS$ 4,000 - 6,000MOQ: 1 Piece
Vessel is designed to the China National Standard-GB150Steel Pressure Vessell
·Control System is integreted by PLC+HMI, advanced function for recording,printing,and storing.·
·The GMP validation port is provided for insertion of 16 temperature sensors for validation.
-Pressure keeping inactivate system and inactivate container inactivate system can be fixed
according to the requirements PIII and PIV lab.
-the steam condenser is fitted in the exhaust/vauum line to condense the steam before entering
inside the vauum pump.
-The built-in steam generator is optional.
During the course of biotic pharmaceutics,there is a high requirement for asepsis and heat-free
source,accordingly there is also an even higher requirement for sterilezer.According to GMP high
standard and using high standard materials the following products in biotic pharmaceutics;Aluminum
kegs for all kinds of antibiotic and their rubber covers and other high requirement usages.The
structure of this series has double layers.During working,Pure steam is full of the inner layer, while
the outer layer uses ordingary boiler steam.Therefore, it has two functions of vacuum exhaust and
drying.
| Design pressure | 0.245Mpa | Vacunm | -0.095Mpa |
| Working Pressure | 0.22Mpa | Steam Source Pressure | 0.4-0.6Mpa |
| Design Temperature | 139ºC | Water Source Pressure | 0.1-0.3Mpa |
| Working Temperature | 134ºC | Compressed Air Pressure | 0.5-0.7Mpa |
| Heat Equilibrium | ≤±1ºC | Distiled Water | 0.1-0.2Mpa |
Packaging Details: Standard export packing.
we will provided the best quality and Lowest Price for you.your products have any problems,could contact us,we will solve as soon as possible
KIT ALEXA brand is famous for all over the world.
Dubai International Exhibition Center
2015 Dubai Arab Health KIT ALEXA ,Booth NO:Z4L50
2016 Dubai Arab Health KIT ALEXA ,Booth NO:PN10
