F0380 LED plastic push button switch electric pushbutton switch Momentary push button switch

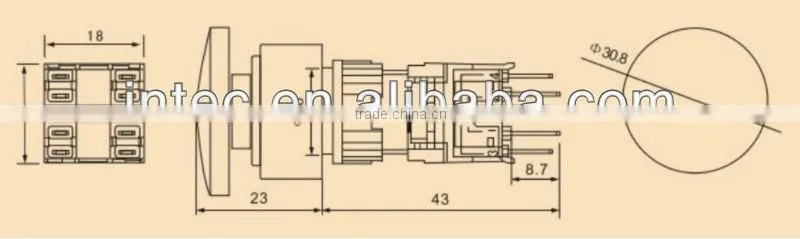

The front frame shape of this series product have round (d18mm), square (18×18mm), rectangle (18×24mm) three kinds of specifications, including indicator lights, push button switches, knobs, illuminated push button, key push button, emergency stop push button, buzzer.Conventional mounting hole size is d16mm, some products can be equipped with adjustable ring so that the products can be installed in the mounting hole of d22mm; switch element adopts "double break fast, self-cleaning" structure, each switch element includes a normally open a normally closed, each button can be equipped with two switching element most; product has performance stability, small contact resistance, insulation, vibration resistance, impact resistance and other characteristics; its protection level IP40, some products can be equipped with sealing cover to reach the IP67 with IEC60947-5-1, GBI4048.5 standards.
Parameter:
Model |
F0380 |
Contact Configuration |
1NO1NC/2NO2NC/3NO3NC |
Operation Type |
Momentary, Latching |
Lamp Color |
Red, Green, Yellow, Orange, Blue, White,Black,hyaline |
Protective Class |
IP40,IP65 |
Operation temperature |
-2.5°c~+55°c |
| Operation humidness | 45~85% RH |
| Contact resistant | ≤50mΩ |
| Insulation Resistance | ≥1000MΩ |
| Vibration resistance | 50HZ , amplitude is about 1.2mm |
| Contact material | Sliver,silveralloy ,sliver plated |
| Between the presser foot of lamp bead with contact (max pressure): | 2000V,AC 50HZ, 1MIN |
| Between the same level terminals (max pressure) : | 1000V,AC 50HZ, 1MIN |
| Between different electrode terminals (max pressure) : | 2000V,AC 50HZ, 1MIN |
| min. Impact resistance | 10g |
| Mechanical life: | 200000000 |
| Electrical life: | 500000 |
| Operating distance : | About 3mm |
