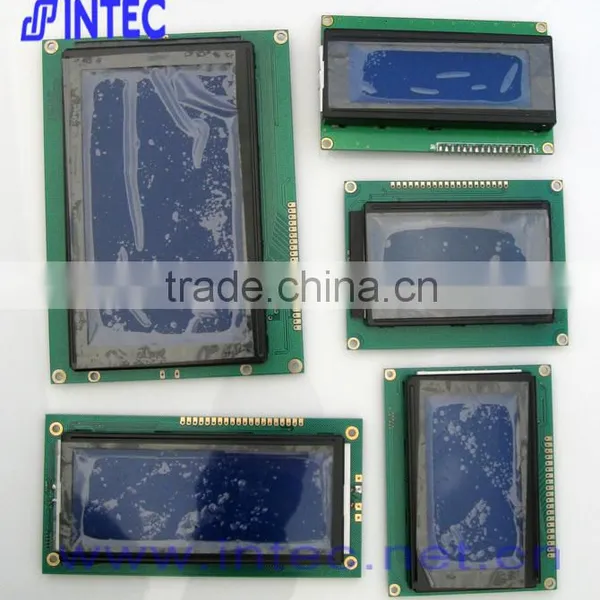

2004 Character LCD Display Module,192x64 Character LCD Display Module,low price LCD display module

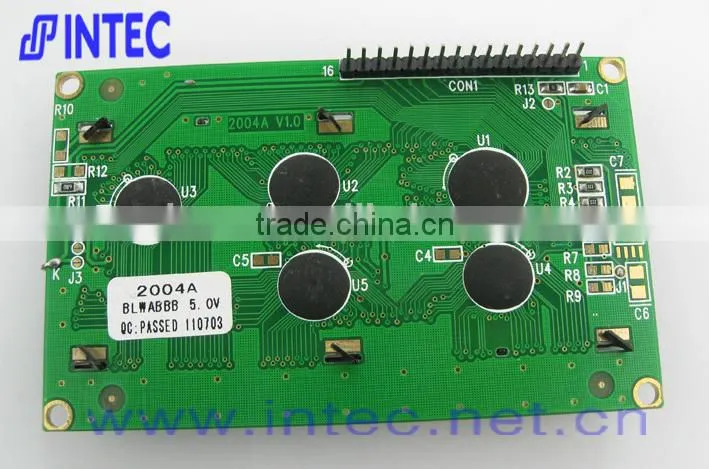

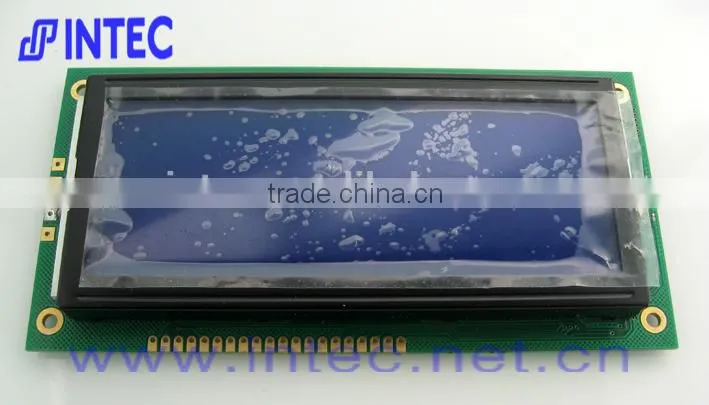

Standard LCD 20*4 blue color
Dimensions 98.0mm × 60.0mm connection conductive tape
Sight size 76.0mm × 26.0mm single row parallel interface mode
Point size 0.55mm × 0.55mm Backlight EL / LED
Character size 29.5mm × 47.5mm backlight color yellow / white / red, etc.
Display 20 characters × 4 lines operating voltage of +5 V / +3.3 V
Screen surface yellow / blue / black and white screen Operating temperature -10 ~ +60 °C
Controller SPLC780 storage temperature -20 ~ +70 °C
|

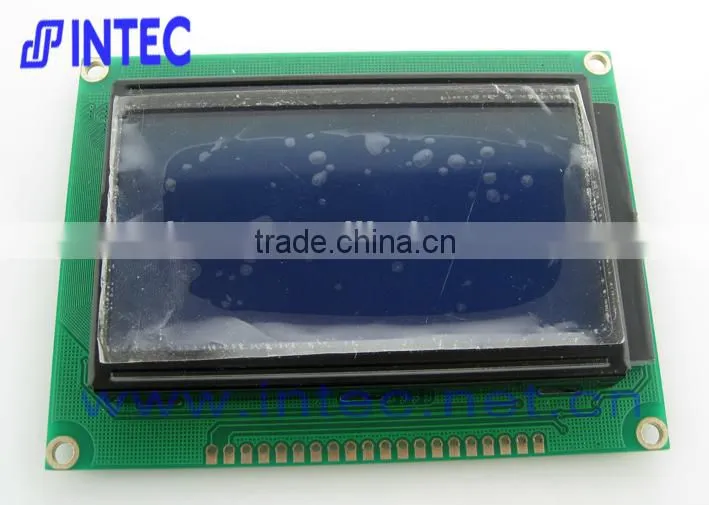

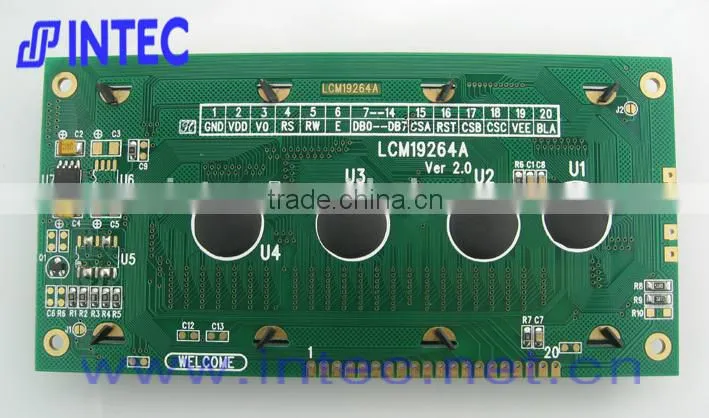

Standard LCD 192*64 blue color
Abbreviations: 19264 LCD, 19264 LCD module, LCD192x64, with no font 19264
Dimensions: 130.0 x 65.0 x 12.5 mm
Display area: 104.0 x 39.0 mm
Point Size: 0.458 x 0.448 mm
Display: blue and white / black and white / black and yellow
Drive mode: 5V/3.3V (Note: Each screen can simultaneously support one voltage)
Controller: S6B0108 (KS0108) Package: bonding process
Working temperature: -20 degrees to +70 degrees
Storage temperature: -30 degrees to +80 degrees
