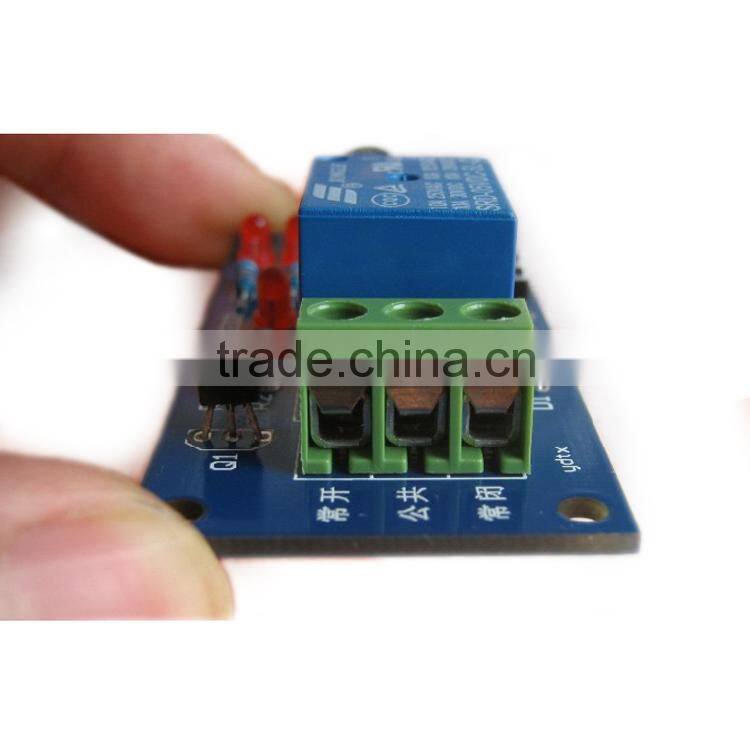

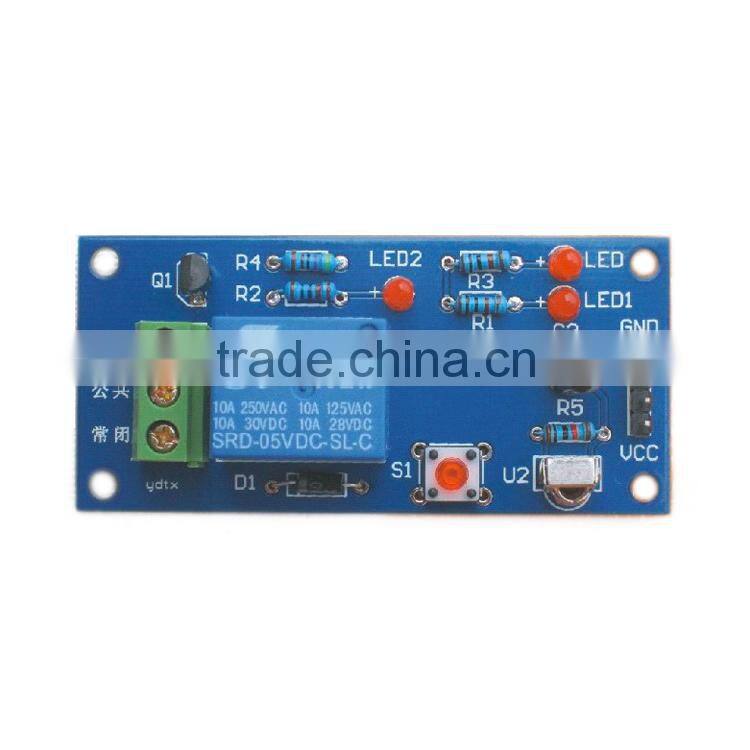

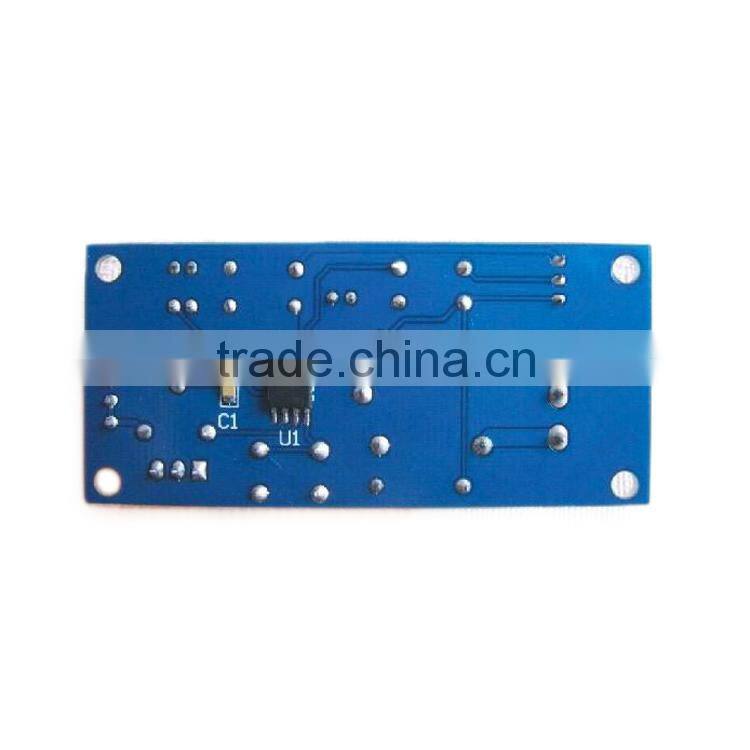

XD-361channel 5V infrared remote control relay module learning infrared remote control switch remote control module
Description:
Learning IR remote control switch , as the name suggests , the microcontroller can remember a button on the remote control key data , it switches to control relays , through learning again, you can modify key data storage , for example, you use the remote control for this "8" learning key , you can use after the success of "8" to do the control buttons , power-down data is not lost , if you want to use the key "9" as the control , you will need to re- learn the microcontroller to make changes do not understand the effect look at the video !
Module for use:
1 , power supply , LED indicator light wiring is correct , five seconds after the module is working properly, the relay simultaneously !
2, each press S1 button click , a working state relay switching on or off while the indicator light on or off !
3, after the success in learning infrared remote control , press the learning success every time the remote control ( remote learning method below ) , a working state relay switches on or off , and the indicator light on or off !
Remote learning There are two methods of operation :
1 , press and hold S1 button for 5 seconds, the indicator LED1 turns on, into the learning state , and then release the button S1, and then press the remote control button , the indicator flashes as long , which means that learning has been successful !
2, the infrared receiver with a remote control at the module , press any key on the remote control for 10 seconds, the indicator LED1 is lit , it means entering learning state , and then press the remote control button , the indicator flashes as long , which means that learning has been successful !
( Cancel learning state can look at LED1 long bright when S1 button or wait 30 seconds to exit automatically learning ! )
Theoretical distance is about 8-12 meters, but the actual application depends on ambient factors and intermediate barrier ( such as a diaphragm , glass or other materials blocking ) , receiver using HX1838T ( T version of very good quality , non- general experimental receiver used ) , can receive any 38K frequency remote control encoded data !
