IP65 36W Outdoor DMX Thin LED Wall Washer

Showjockey Technology Co., Ltd is a processional factory which special in LED lighting fixtures,  controlling system   and complete set of lighting solution  which cover entertainment lighting , architectural lighting, festival decoration, etc.

In entertainment lighting, dmx 3D tube light, dmx panel, dmx led strip, dmx 3D LED ball and dmx light pixels are popular products for many clubs, stage, events, shows, and rental, showing amazing effect to make people impressive.

Our dmx wall washer, dmx super Scenografix and dmx linear lights are adopted by many designers for theme park, hotel, business center, city lighting and so on.

Our Lighting software can make wonderful lighting effects follow the music for club and stage. Irregular shape patch function help designer to finish some projects easily.

Artnet, DMX, RDM, DALI makes many lighting application much more intelligent.

We cooperate with other famous design organizations to make a big improvement on LED 3D control technology, and developed many 3D visual products. We are helpful for DJ and VJ design.

Feature of 36W DMX LED Wall Washer

1. Slim DMX LED Wall Washer with dmx decoder outside housing, easy to install in acertain narrow space.

2. Special design with 4 cables: power in, dmx in, power out, and dmx out, will be easy to install all lights in serial connection.

3. Under the support of Showjockey software, it could achieve many colorful lighting effects.

4. With value design, it can prevent water vapor in the body.

5. The lamp applies heat conduction intergration design for long service life.

6. Auto address type and manual address type is available.

7. IP65 could protect LED Wall Washer from the erosion of water.

8. The constant-current circuit design and make the DMX LED Wall Washer with a steady LED current, that extend the using life.

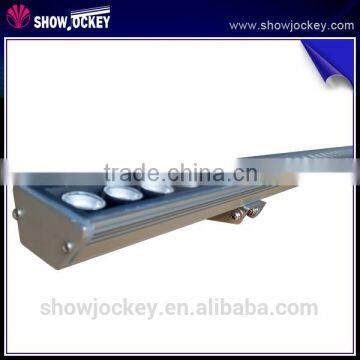

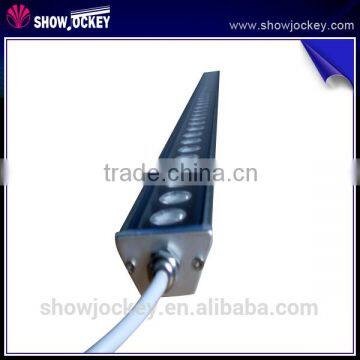

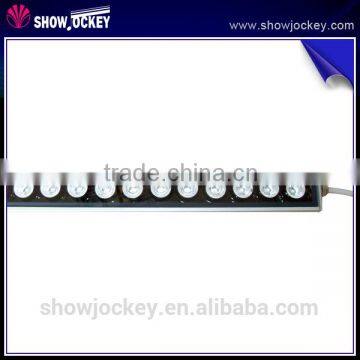

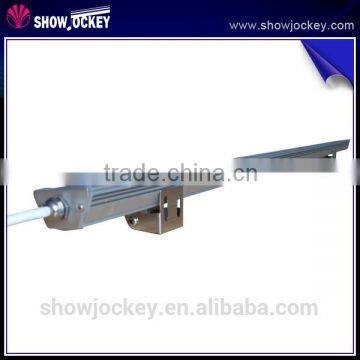

Detail of IP65 DMX LED Wall Washer













Advantage of Showjockey



1. Nice shape, easy to use.



2. Easy to maintain.



3. RGB, RGBW, single color is available.



4. Each light can be controlled individually.



5. Different power, size wall washer is available.









Parameter of 36W thin DMX LED Wall Washer



Parameter	Description
Product Name	36W DMX LED Wall Washer
DMX decoder installation	External / Built-in
Protocal	DMX
Color Range	RGB, white, warm white, red, green, blue, amber, blue white
Voltage	DC24V/AC110/AC220
Power	36W
Protection	IP 65
Usage	Indoor & outdoor
Address Setting	Automatically / Manually
Lens Degree	8°, 16°, 25°,30°,45°,60°
Lifespan	50000 hours, based on led manufactures' test data.
Housing	Aluminum/Surface-oxidized processing/tounhened glass
Temperature	-4°F to 122 °F(-20°C to 50 °C)











Connection Draw







1. Directly replace traditional lights.

2. Exterior wall of building and commercial area, Bridge and Public park.

3. The occasions of wedding and celebrations.

4. Places where need energy saving and RGB color changing lighting.
