Portable Plasma Cutting Machine

Name: Portable Plasma Cutting Machine
Brand: GRACE
SKU: 110056823
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

GRACE

Model Number:

G1020

Jinan Grace Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name GRACE

Model Number G1020

Specifications

1. Convenient portable strcuture, easier to carry, save space.
2. USA famous plasma power supply, Hypertherm brand

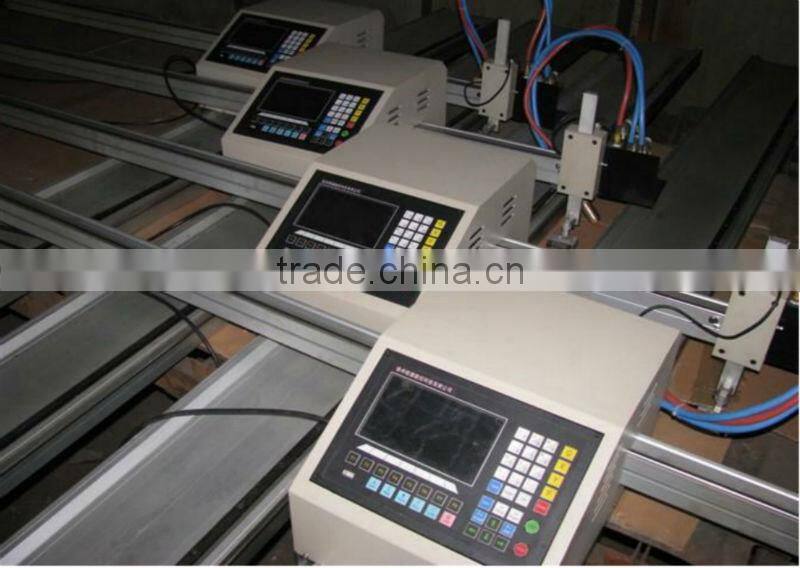

Portable plasma cutting (for metal cutting).

Main features:

1. Convenient portable strcuture, easier to carry, save space.

2. USA famous plasma power supply, Hypertherm brand which with the high quality precision, more stable, and long life span.

3. Economic and useful.

4. Multifuntional software support. It can convert CAD file to program

file in computer, through USB flash drive transmits to machine to realize cutting all

kinds’ graphs. And also can program and operate directly on the machine.

Applications:

Steel cutting, copper cutting, aluminum cutting, iron cutting, mild steel cutting, also can make different designs via control software.

parameters :

Portable Plasma Cutting Machine
Model	G1020	G1225	G1525	G1530
Power supply	USA famous brand Hypertherm power supply 45A
Voltage	220±10%VAC 50/60Hz 220W
Cutting mode	O₂
Effective cutting range(mm)	1000×2000	1200×2500	1500×2500	1500×3000
Track Holder Quantity	2	3	3	3
Track Holder L×W×H(mm)	500×80×40
Cutting speed(mm/min)	0-3500 (Max 4000 available)
Cutting thickness(plasma)(mm)	2-8mm (O₂)
Move precision	±0.2mm/m
Torch	electric height adjustment(±60mm)
Host weight(kg)	19
Total weight(kg)	120	130	140	150
Oxygen pressure(Mpa)	Max0.7
Emergency stop	Yes
Working temperature	-5~45°C
Relative humidity	<95% No condensing
Standard configuration is 2^#cutting nozzle if no special requirement.
Tailor-made track if request.
