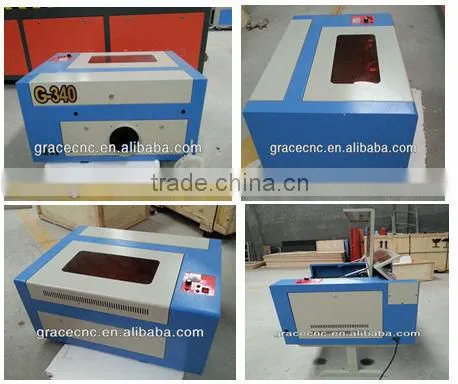

Desktop 40 Watt Mini Laser G4030

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Laser Type	CO2
Applicable Material	Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood	Cutting Area	400*300mm
CNC or Not	Yes	Cooling Mode	Water Cooling
Graphic Format Supported	AI, PLT, DXF, BMP, DST, DWG, LAS, DXP	Place of Origin	Shandong, China
Brand Name	Grace	Model Number	G4030
Certification	CE, CE	After-sales Service Provided	Engineers available to service machinery overseas

1.Taiwan brand orbits, with high precision and long life
2.CE certificate
3.USB control,
4.water pump,
5.various of tables

hot sale high quality mini leather laser engraving machine G4030

Product features:

Working area:400x300mm

Power: 40w

Laser tube type:2500hours working life time

Control mode: USB interface

File export Software: DSP5.3

Compatible file design software: Photoshop, Corel draw, AutoCAD, etc

Files Support:: bmp, plt, eps, poes, jpg, ai, tiff, dxf, dwg, cdr, tga, jpeg, DST etc.

Mechanical orbits: Taiwan brand orbits, with high precision and long life time.

Motor and driver type: Step motors and step drivers

Cooling type: chiller.

Table type: (engraving and cutting) strip type table.

360 degree slope engrave: Support

Application:

Applicable materials: wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials

Applicable industries: advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry

Specifications:

Laser power :	40W (optional)
Laser tube type:	CO2 glass tube
Power supply:	AC220±10, 50 HZ/ or AC110±10, 50 HZ
Cooling way:	Water cooled with protection system
Working area:	400mmx300mm
Max travel speed:	60000mm/min
Worktable:	Honey comb worktable (mainly engraving and small pieces cutting) /aluminum knife (engraving and cutting) /normal table (engraving) (optional)
Locating precision:	<0.01mm
Min shaping character:	Character:2mm,letter:<1mm
Operating temperature:	5°C-35°C
Working humidity	5%-95%(without condensed water)
Resolution ratio:	4500dpi
Control configuration:	DSP5.3
Data transfer interface:	USB(offline)
System environment:	WINDOWS 2000/WINDOWS XP/ windows 7
Graphic format supported:	The file which CorelDraw, Photoshop, AutoCAD can identify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXP,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX) etc.
Compatible software	CorelDraw, AutoCAD, Photoshop, laser cut software
Cutting thickness	0-20mm also (depends on different material)
Color separation	Separation of cutting up to 256 colors
Sloping engraving	Yes, slope can be designed discretionarily
Cuts off the water supply the protection	yes

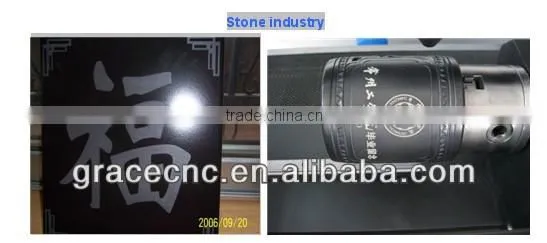

Samples and industries application:

Main accessories included:

1) 1*Air pump (blowing dust during work)

2) 1*Exhaust fan with Tube clips (heat radiation and smoke extraction)

3) 1*water pump (used for small power tube to cool the laser tube) or chiller (used for bigger power tube cooling)

4) 1*USB Cable (connecting PC and machine)

5) 1*CD or electronic documents (including software, user manual, guiding videos etc)

6) 2*Power cables

7) 1*Tool box (for routine maintenance)

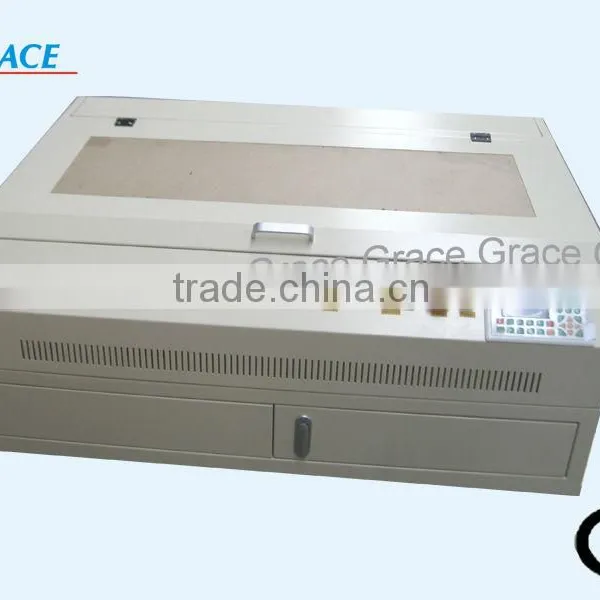

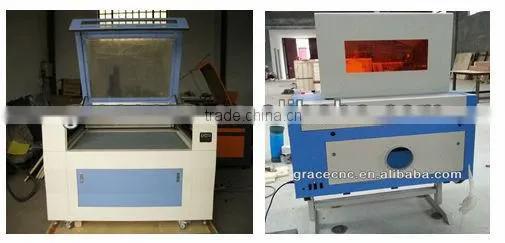

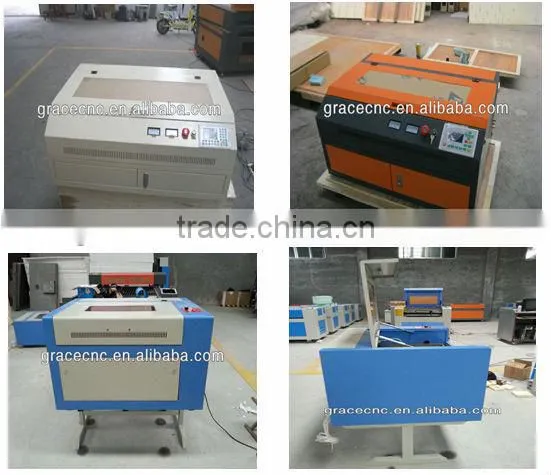

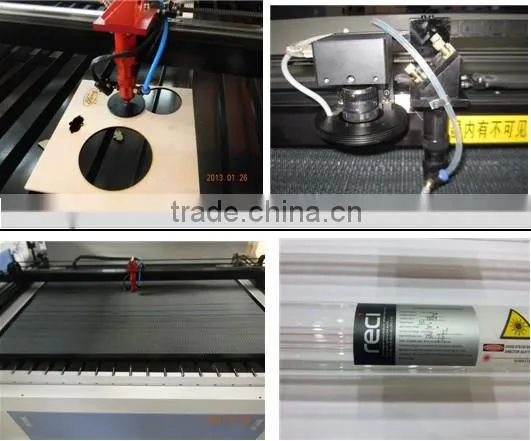

Other machine photos
