die cutting laser

Specifications

1. 300w (optional)
2. imported motor
3. imported chiller
4. ballscrew

Die cutting laser machine  G1212



Mian Features :



1.Stable machine design, convenient for operation



2.Laser path fixed ( laser head fixed, cutting material plywood moving)



3.Double direction imported high precision ball-screw transmission



4.Low consumption of voltage, about three kilowatt-hour only



5.High series industrial water chiller, America lens



6.High strength of machine bed, long-year working stable



7.No need of assistant gas during cutting, Air only



8.Laser software, PC control.



9.Easy to adjust laser focus, operate machine easy after training well.



Parameter





Processing scale	1200x1200mm (optional)
Machine weight	1200kgs
Laser type	CO2 Sealed laser tube
Laser power	400W double heads
Driving motor	Japanese motors and drivers.
Cutting depth	18mm-25mm-30mm  plywood
Cutting precision	±0.05MM
Re-position accuracy	≤0.03mm
USB port connection	Yes
Operating temperature	0-45°C
Mould knife thickness	0.45mm, 0.71mm,1.05mm…etc. controllable
Cutting speed	23-30meters/hour 18-20mm plywood
Protective gas	Dry and oil-free air
Power supply	single-phase electricity 220V±5%  50HZ 10A
Numerical control panel	LCD screen, light-touched key-press
Software supported	CorelDraw, AutoCAD, Photo Shop
Graphic format support	PLT,DXF,BMP,JPG,GIF,PGN,TIF
EMS memory	attached 64MB memory, can work under off-line condition
Application	Plywood, MDF board, acrylic board.
Laser tube guarantee	Guarantee 8months,10000 hours life span for laser tube
Assistant equipments	Air Dryer, industrial chiller, Exhaust Fan, Computer System
Recommend spare parts	Laser Tube and America Lens





 Application :





1.can make box type design samples based on the actual paper material .



2.printing ,knife mold factory ,plastic plants ,die cutting plant ,proofing plant ,carton plant ,packing plant .



3.printing factory knife templated ,cutting board production .





Machine in factory:

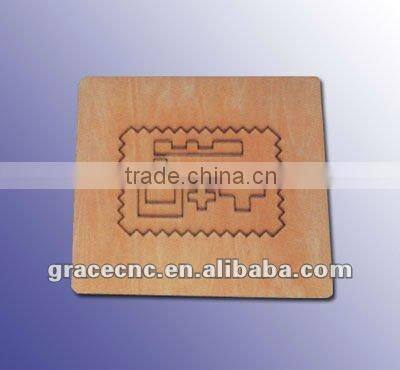

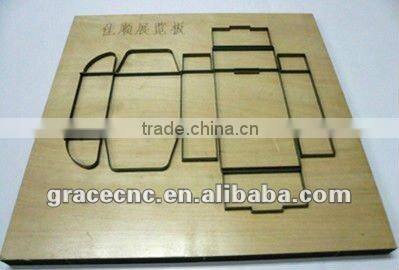

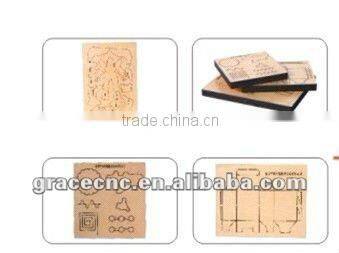

Samples:



































If there is anything we can do for you, please feel free to contact me,  we shall be more than pleased to do so.
