Specifications
1.die board cutting2.CE certificate
3.USB control,
4.chiller cooled system
5.stepper motor
die laser cutting machine G1218 for plywood board
Mian Features :
1.Stable machine design, convenient for operation
2.Laser path fixed ( laser head fixed, cutting material plywood moving)
3.Double direction imported high precision ball-screw transmission
4.Low consumption of voltage, about three kilowatt-hour only
5.High series industrial water chiller CW-6000, America lens
6.High strength of machine bed, long-year working stable
7.No need of assistant gas during cutting, Air only
8.TSD Laser software, PC control.
9.Easy to adjust laser focus, operate machine easy after training well.
Application :
1.can make box type design samples based on the actual paper material .
2.printing ,knife mold factory ,plastic plants ,die cutting plant ,proofing plant ,carton plant ,packing plant .
3.printing factory knife templated ,cutting board production .
Parameter
Processing scale |
1200x1800mm |
Machine weight |
1400kgs |
Laser type |
CO2 Sealed laser tube |
Laser power |
300W - 400W double heads |
Driving motor |
Higher grade stepper / Japan Panasonic Servo Motor |
Cutting depth |
14mm-16mm-18mm plywood |
Cutting precision |
±0.05MM |
Re-position accuracy |
≤0.03mm |
USB port connection |
Yes |
Operating temperature |
0-45°C |
Mould knife thickness |
0.45mm, 0.71mm,1.05mm…etc. controllable |
Cutting speed |
23-30meters/hour 18-20mm plywood |
Protective gas |
Dry and oil-free air |
Power supply |
single-phase electricity 220V±5% 50HZ 10A |
Numerical control panel |
LCD screen, light-touched key-press |
Software supported |
CorelDraw, AutoCAD, Photo Shop |
Graphic format support |
PLT,DXF,BMP,JPG,GIF,PGN,TIF |
EMS memory |
attached 64MB memory, can work under off-line condition |
Application |
Plywood, MDF board, acrylic board. |
Laser tube guarantee |
Guarantee 6months,10000 hours life span for laser tube |
Assistant equipments |

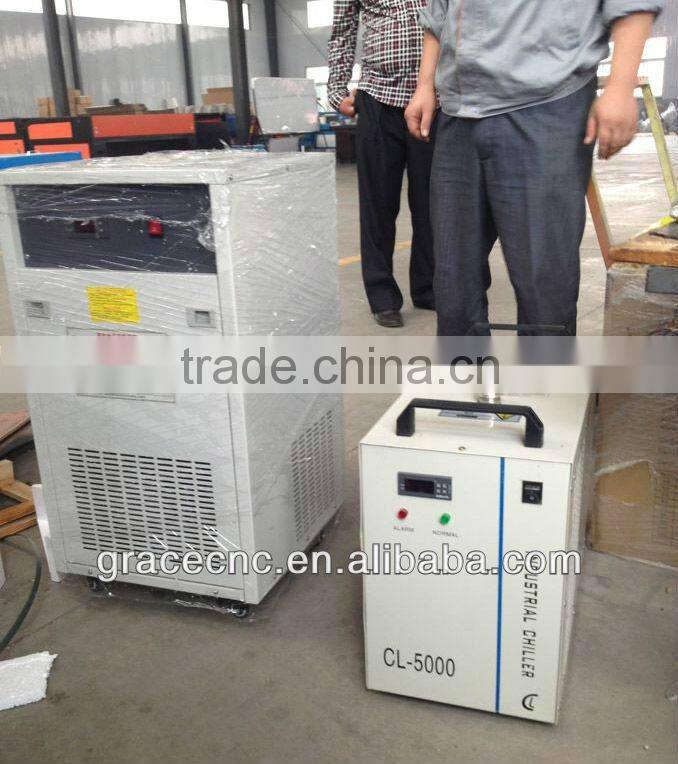

Air Dryer, industrial chiller, Exhaust Fan, Computer System |
Recommend spare parts |

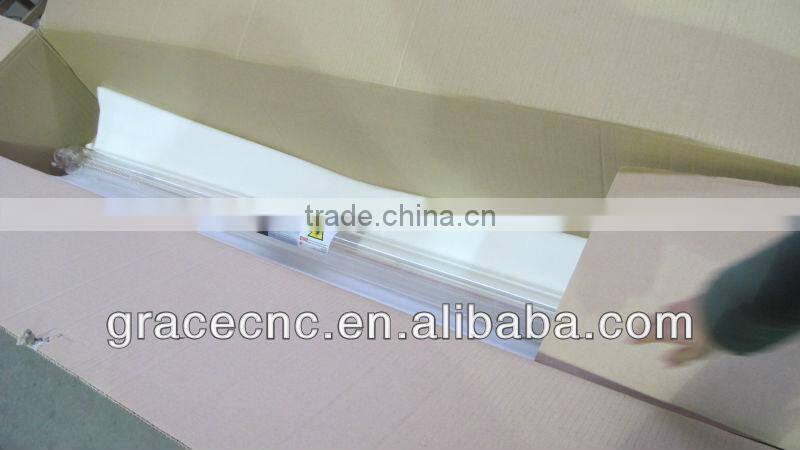

Laser Tube and America Lens |
Another size of machine :
| Laser Power | Common Size |
| 300w or 400w | 1200*900 mm |
| 1200*1200 mm | |
| 1200*1500 mm | |
| 1200*1800 mm | |
| 1300*2500 mm |
We also can make other sizes machine according to customer requirements.

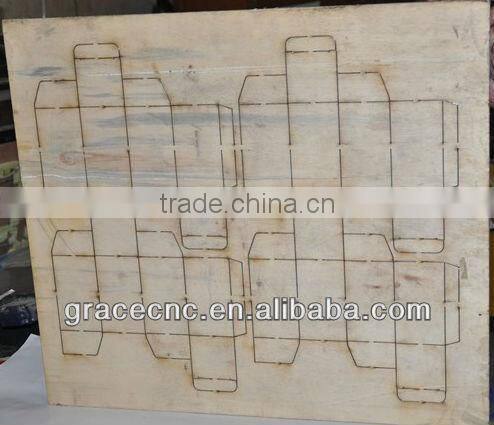

Samples:
Other Machine photos

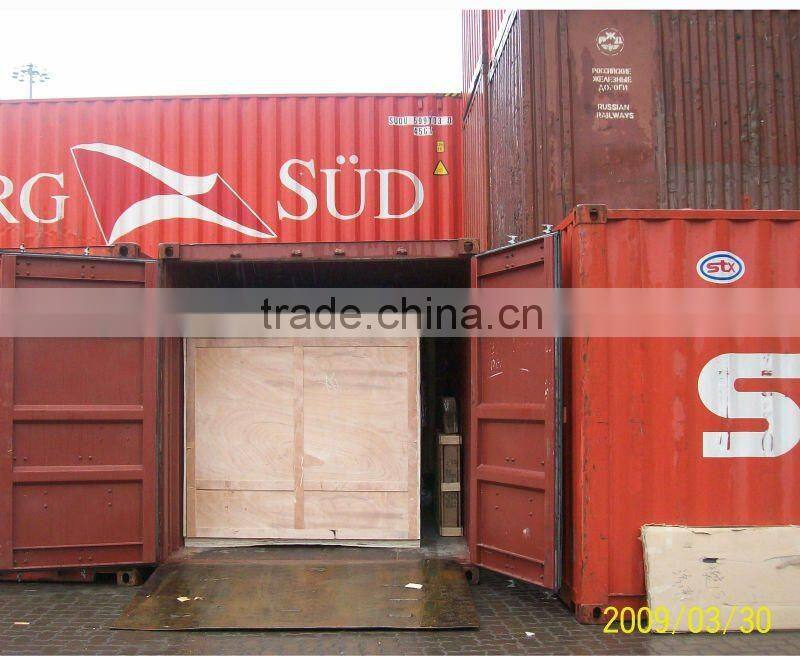

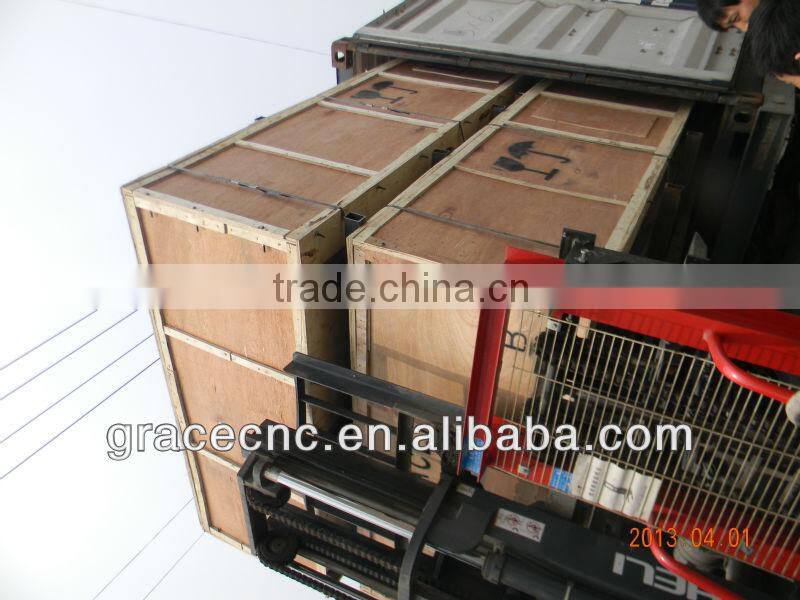

Shipping terms:
By sea
Payment terms:
1. T/T(Telegraphic transfer)
2. L/C at sight
3. ESCROW
4. Paypal
