economical type plywood die board laser cutting machine with special design G1215

Specifications

1.die board cutting
2.CE certificate
3.USB control,
4.chiller cooled system
5.stepper motor

Mian Features :



1.Stable machine design, convenient for operation



2.Laser path fixed ( laser head fixed, cutting material plywood moving)



3.Double direction imported high precision ball-screw transmission



4.Low consumption of voltage, about three kilowatt-hour only

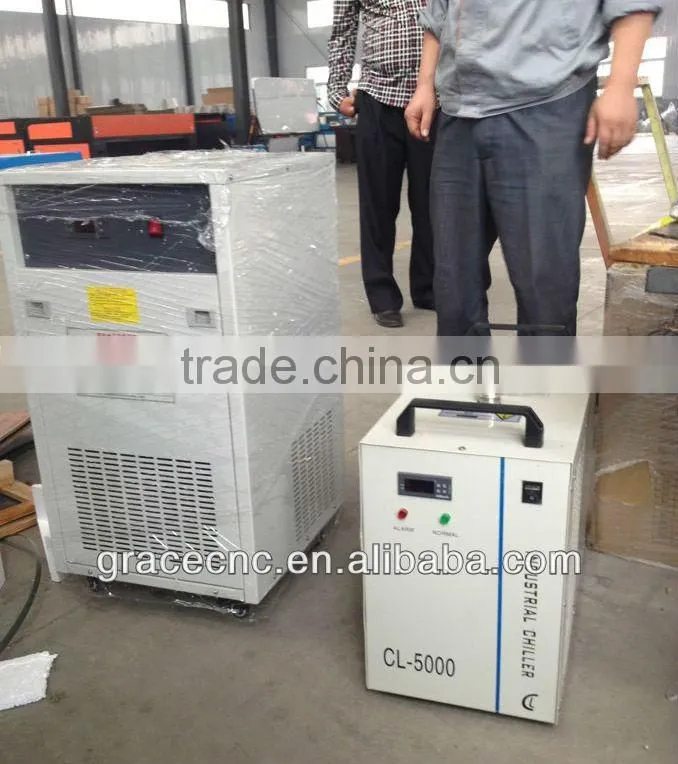

5.High series industrial water chiller CW-6000, America lens



6.High strength of machine bed, long-year working stable



7.No need of assistant gas during cutting, Air only



8.TSD Laser software, PC control.



9.Easy to adjust laser focus, operate machine easy after training well.





Application :





1.can make box type design samples based on the actual paper material .



2.printing ,knife mold factory ,plastic plants ,die cutting plant ,proofing plant ,carton plant ,packing plant .



3.printing factory knife templated ,cutting board production .







Parameter





Processing scale	1200x1500mm
Machine weight	1400kgs
Laser type	CO2 Sealed laser tube
Laser power	300W - 400W double heads
Driving motor	Higher grade stepper / Japan Panasonic Servo Motor
Cutting depth	14mm-16mm-18mm  plywood
Cutting precision	±0.05MM
Re-position accuracy	≤0.03mm
USB port connection	Yes
Operating temperature	0-45°C
Mould knife thickness	0.45mm, 0.71mm,1.05mm…etc. controllable
Cutting speed	23-30meters/hour 18-20mm plywood
Protective gas	Dry and oil-free air
Power supply	single-phase electricity 220V±5%  50HZ 10A
Numerical control panel	LCD screen, light-touched key-press
Software supported	CorelDraw, AutoCAD, Photo Shop
Graphic format support	PLT,DXF,BMP,JPG,GIF,PGN,TIF
EMS memory	attached 64MB memory, can work under off-line condition
Application	Plywood, MDF board, acrylic board.
Laser tube guarantee	Guarantee 6months,10000 hours life span for laser tube
Assistant equipments	Air Dryer, industrial chiller, Exhaust Fan, Computer System
Recommend spare parts	Laser Tube and America Lens







Another size of machine :







Laser Power	Common Size
300w or 400w	1200*900 mm
	1200*1200 mm
	1200*1500 mm
	1200*1800 mm
	1300*2500 mm





We also can make other sizes machine according to customer requirements.

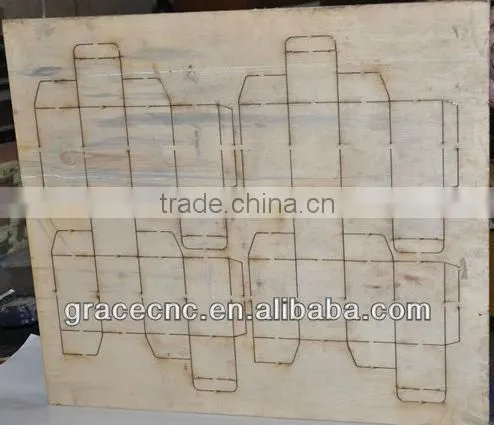

Samples:

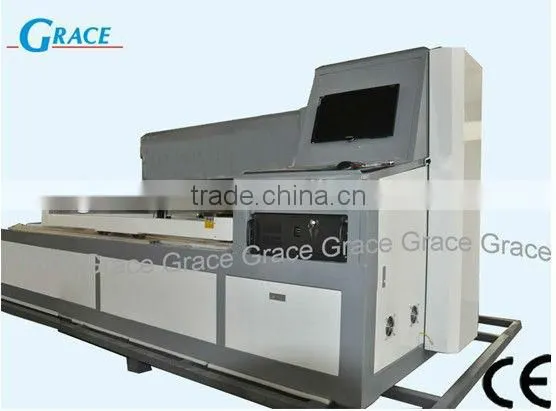

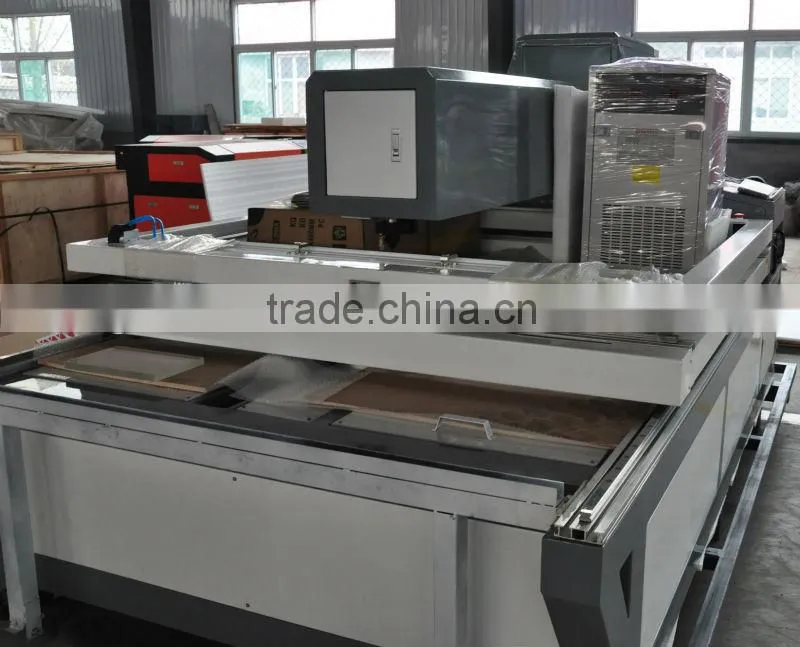

 Other Machine photos
