Die board cutting machine G1212
Mian Features :
1.Stable machine design, convenient for operation
2.Laser path fixed ( laser head fixed, cutting material plywood moving)
3.Double direction imported high precision ball-screw transmission
4.Low consumption of voltage, about three kilowatt-hour only
5.High series industrial water chiller, America lens
6.High strength of machine bed, long-year working stable
7.No need of assistant gas during cutting, Air only
8.Laser software, PC control.
9.Easy to adjust laser focus, operate machine easy after training well.
Parameter
Processing scale |
1200x1200mm (optional) |
Machine weight |
1000kgs |
Laser type |
CO2 Sealed laser tube |
Laser power |
400W double heads |

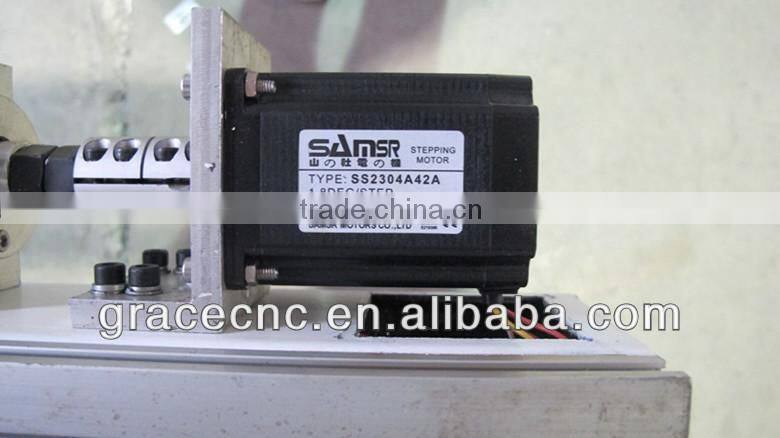

Driving motor |
Japanese motors and drivers. |
Cutting depth |
18mm-25mm-30mm plywood |
Cutting precision |
±0.05MM |
Re-position accuracy |
≤0.03mm |
USB port connection |
Yes |
Operating temperature |
0-45°C |
Mould knife thickness |
0.45mm, 0.71mm,1.05mm…etc. controllable |
Cutting speed |
23-30meters/hour 18-20mm plywood |
Protective gas |
Dry and oil-free air |
Power supply |
single-phase electricity 220V±5% 50HZ 10A |

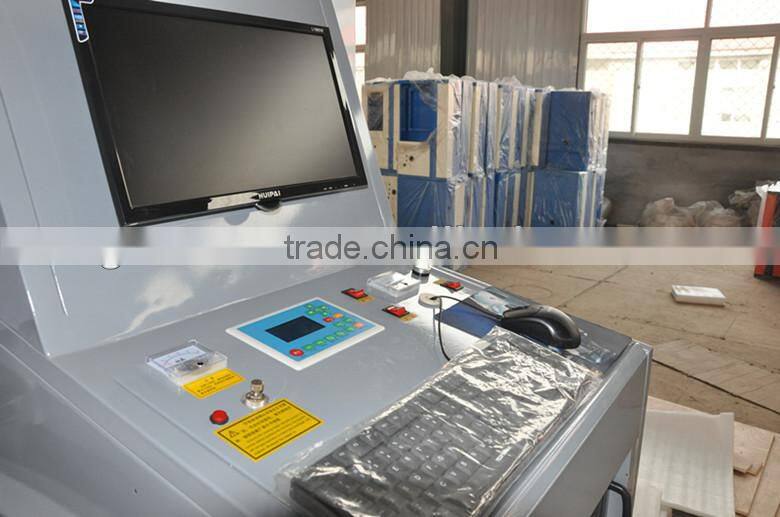

Numerical control panel |
LCD screen, light-touched key-press |
Software supported |
CorelDraw, AutoCAD, Photo Shop |
Graphic format support |
PLT,DXF,BMP,JPG,GIF,PGN,TIF |
EMS memory |
attached 64MB memory, can work under off-line condition |
Application |
Plywood, MDF board, acrylic board. |
Laser tube guarantee |
Guarantee 8months,10000 hours life span for laser tube |
Assistant equipments |
Air Dryer, industrial chiller, Exhaust Fan, Computer System |
Recommend spare parts |
Laser Tube and America Lens |
Application :
1.can make box type design samples based on the actual paper material .
2.printing ,knife mold factory ,plastic plants ,die cutting plant ,proofing plant ,carton plant ,packing plant .
3.printing factory knife templated ,cutting board production .

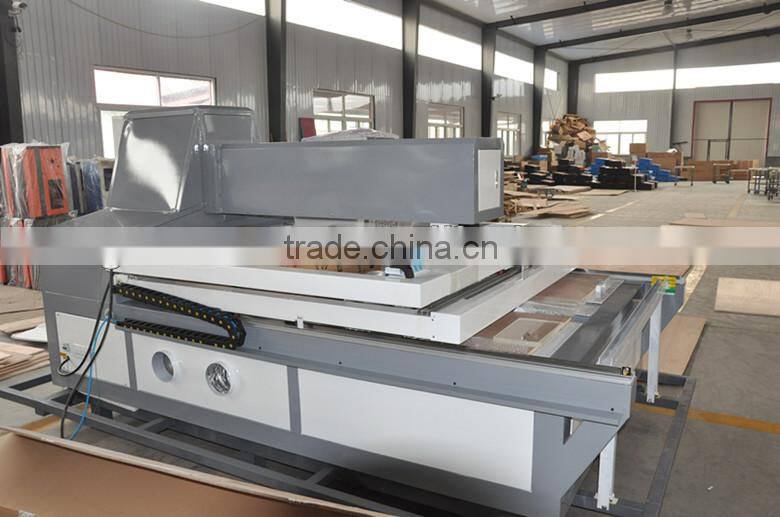

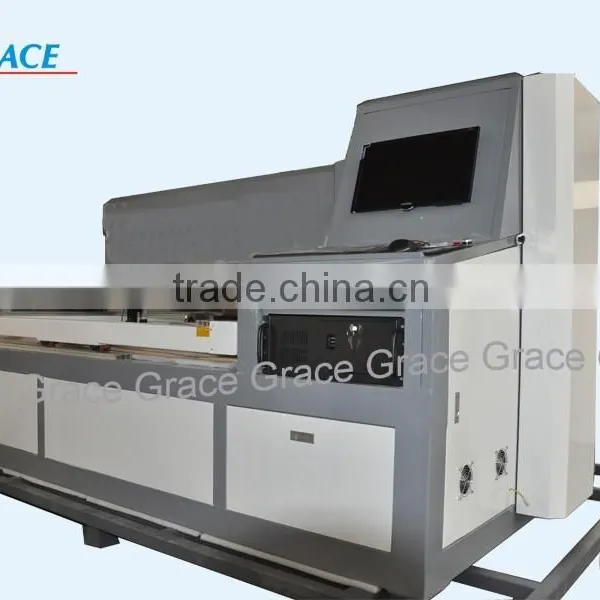

Machine in factory:

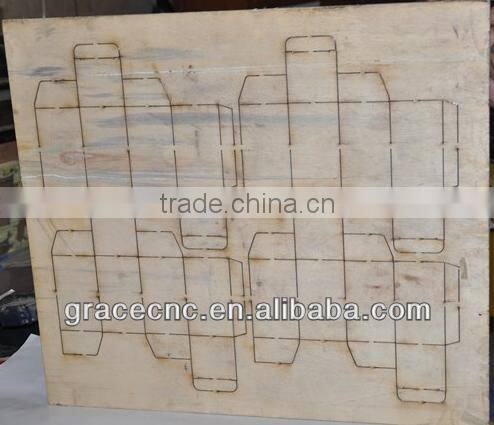

Samples:
1. Quality warranty:
1) The whole machine is 14 months guarantee period.
2) Technical service is whole life time of the machine.
3) Laser tube gurantee period is 8 months
2. After service:
1) To reply your question or solve problem: within 24 hours, whatever online via chatting tools like:
MSN, YAHOO MESSENGER, SKYPE etc, by email or by telephone.
2) Machine will offer installation video, operation video, manual.
3. Delivery time:
10-15 days after getting prepayment, usually 7-10days.
4. Payment term:
T/T 50% in advance, the balance against copy of bill of lading.
5. Document supply:
Commercial invoice ,Packing list ,Bill of lading (If other documents required , please inform us )
6. The port of shipment:
Tianjin port is available .(If other port required, please inform us)
