YAG metal laser cutter G1325
- 50 Set / Sets per Month
- Qingdao
- T/T Credit Card
- 4axis 5axis Large size and thickness(0-40mm) cnc plasma cutting machine
- Automatic cnc plasma cutting machine gate cnc router 120a/200a
- Fully automatic 20mm plasma cutting machine custom size high quality
- 200mm pipe table axe for plasma metal cutting machine spare parts in weifang
- China gantry cnc plasma and oxy cutting machine dust removal equipment
- 10mm carbon steel bigger formate cnc plasma cutting machine for cutting metal
Product Details
Place of Origin: | Shandong, China | Brand Name: | GRACE | Model Number: | G1325 |
Product Description
Specifications
1. Cross Slide Working table2.Yaskawa AC servo motor
3.semi-close loop control
4. CE certificate
Machine introduction:

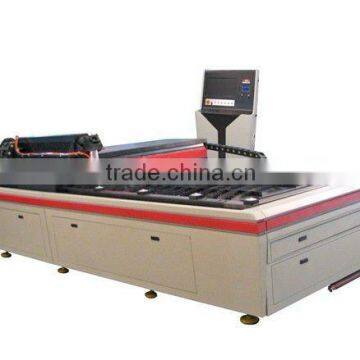

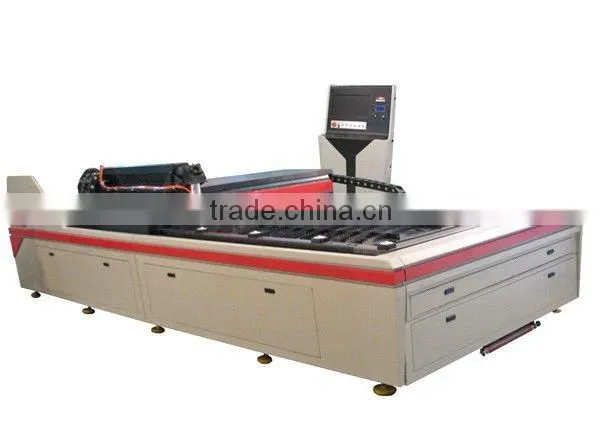

It adopts ND: YAG medium, the fixed light route, the gantry style working table design is special for cutting any corner of working table 1500*3000mm, it can reduce the cutting slot by linearity polarize. Stable light route, high precision, quick process speed.
The hot distortion is very few, and the cutting slot of straight side is small, the cut edge is very smooth.
It adopts CNC controlling technology with professional cutting software, which supports AI, BMP, PLT, DXF,DST, file formats, and it is easy to operate.
UAdvantages:
1. Gantry style design. The laser optical distance is shortest, there is no laser energy lose during laser tranmission. Make sure in the whole cutting area the cutting result is the same.
2. Laser cutting is no touch process. Laser spot size is as small as 0.1mm after focus. So there is no design limit with laser process.
3. The cutting edge is smooth, no need post-process after laser cutting
USPECIFICATONS | ||
UUITEMU | TECHNICAL SPECIFICATIONSU | |
UMACHINE | U | |
Model Name | G-1302500DT | |
Travel Method | stationary table , Gantry style | |
Moving system | Servo motor drive ball screw | |
Guide | Dual linear guide | |
Control Method | X, Y,Z axis motorized controlled | |
Travel Amount | X-axis | 1300MM |
Y-axis | 2500MM | |
Z-axis | 25mm (it's standard) customized by requirements | |
Feed Rate | X-axis | 2500mm/sP2P |
Y-axis | 2000mm/sP2P | |
rapid speed | X-axis | 800mm/s |
Y-axis | 600mm/s | |
Maximum Worksheet Loading Capacity | 700kg | |
Machine weight |
| 3000kg |
Repeatability Positioning Accuracy | 0.01mm | |
Drive Feed Method | position control / AC servo motor | |
Machine Table Height | 900mm | |
Cutting bed |
| Sawtooth metal strip bed |
Focus type |
| Automatic following focus |
Power Supply ( only for machine) | 380V 50/60HZ | |
Power consuption |
| 30KW |
| ||
ULASER OSCILLATORU | ||
Laser Oscillation Method | Lamp pump YAG | |
Laser power | 500W/650W | |
Stability | ±3% | |
Frequency | 1-300HZ | |
Wavelength | 1064nm | |
Single pulse energy | 125J | |
Pulse width | 0.3-10ms | |
Cooling mode | Close loop laser chiller cooling | |
UCNC CONTROL UNITU | ||
CNC Unit | Yaskawa AC servo motor | |
CNC Control Method | semi-close loop control | |
Control Functions | X, Ycontrolled (simultaneously controlled) | |
Input Method | USB, Net port, memory stick | |
Least Input Increment | 0.002mm | |
Minimum Position detection Accuracy | 0.002mm | |
Program Storage Capacity | 128M flash memory in machine | |
Operating Modes | Windows xp support | |
Display Function | 5 inchi display | Cutting process |
Software | ||
cutting software | Golden Laser self developed software | |
Nesting software | Golden Laser self developed software | |
Support format | DXF,DWG,PLT,AI,DST,GLD | |
Dynamic following focus:
Control system:
samples:
Certificate:
Contact:
Lisa lin
skype: gracemachinery001
If there is anything we can do for you, we shall be more than pleased to do so.
