Advertising acrylic sheet laser cutting machine G1290
Product features:
Working area: 1200x900mm
Power: 80w(optional)
Laser tube type: 8000-10000 hours working life time
Control mode: USB interface
File export Software:READER
Compatible file design software: Photoshop, Corel draw, AutoCAD, etc
Files Support:: bmp, plt, eps, poes, jpg, ai, tiff, dxf, dwg, cdr, tga, jpeg, DST etc.
Mechanical orbits: Taiwan brand orbits, with high precision and long life time.
Motor and driver type: Step motors and step drivers
Cooling type: chiller.
Table type: (engraving and cutting) strip type table.
360 degree slope engrave: Support
Application:
Applicable materials: wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials
Applicable industries: advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry
Specifications:
Laser power : |
80W (optional) |
Laser tube type: |
CO2 glass tube |
Power supply: |
AC220±10, 50 HZ/ or AC110±10, 50 HZ |
Cooling way: |
Water cooled with protection system |
Working area: |
1200mmx900mm |
Max travel speed: |
60000mm/min |
Worktable: |
Honey comb worktable (mainly engraving and small pieces cutting) /aluminum knife (engraving and cutting) /normal table (engraving) (optional) |
Locating precision: |
<0.01mm |
Min shaping character: |
Character:2mm,letter:<1mm |
Operating temperature: |
5°C-35°C |
Working humidity |
5%-95%(without condensed water) |
Resolution ratio: |
4500dpi |
Control configuration: |
DSP5.3 |
Data transfer interface: |
USB(offline) |
System environment: |
WINDOWS 2000/WINDOWS XP/ windows 7 |
Graphic format supported: |
The file which CorelDraw, Photoshop, AutoCAD can identify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXP,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX) etc. |
Compatible software |
CorelDraw, AutoCAD, Photoshop, laser cut software |
Cutting thickness |
0-20mm also (depends on different material) |
Color separation |
Separation of cutting up to 256 colors |
Sloping engraving |
Yes, slope can be designed discretionarily |
Cuts off the water supply the protection |
yes |
Whole machine dimension |
1770x1200x1150(mm) |
Gross weight |
450kgs |
packing |
Plywood case (veneer wood case for export) |
Optional parts |
1. RECI type laser tube (8000-10000 hours life time) 2. Bigger power tubes (100w, 130w, 150w etc) 3. High-grade cooling system (from 100w or bigger than 100w better to choose this) 4. double-head or more heads 5. Cylinder rotary clamp (for cylinder materials working. Like cup, pen, bottles etc) 6. irregular rotary clamp 7. servo motor 8. Red pointer 9. Ball screw transfer 10. Auto feeding system etc. Note:Above are the main optionals, not all the machines can add above optionals, please contact us, we will give you suggestions, thanks. |
Samples and industries application:

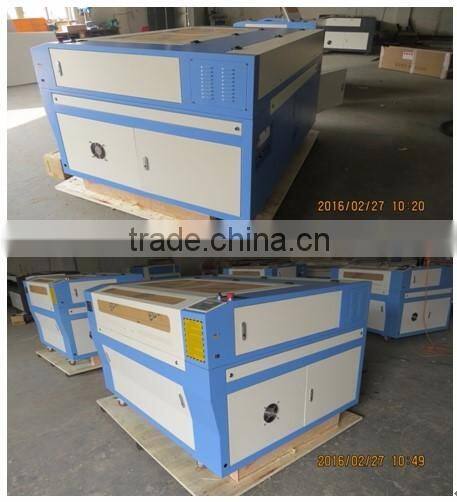

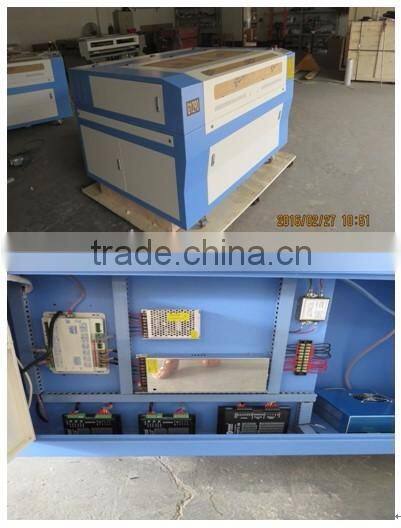

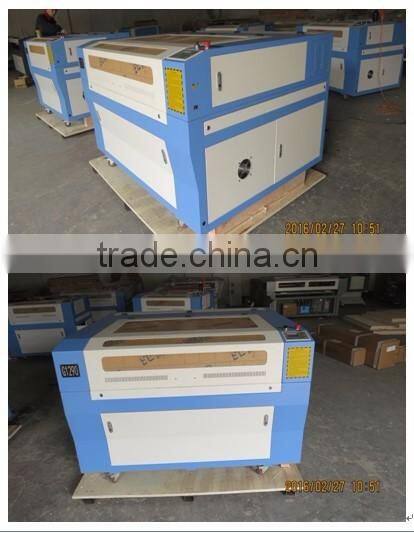

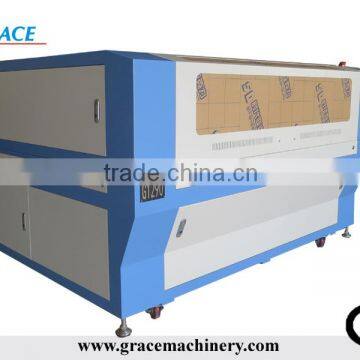

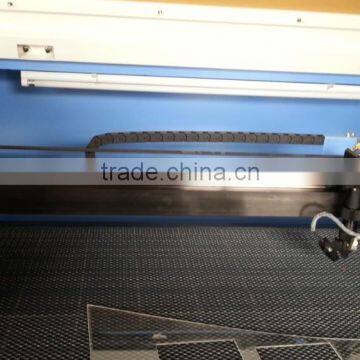

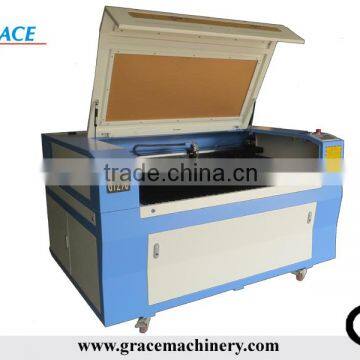

Machine Pictures :

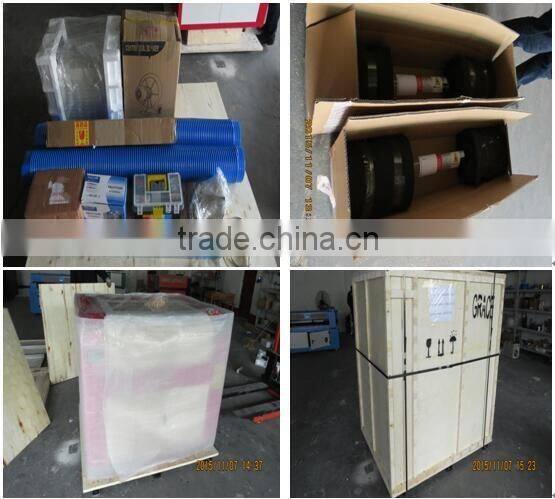

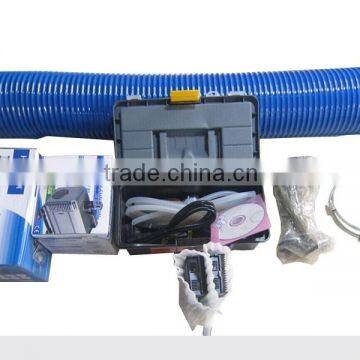

Main accessories included:
1) 1*Air pump (blowing dust during work)

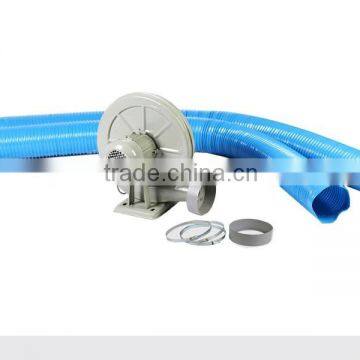

2) 1*Exhaust fan with Tube clips (heat radiation and smoke extraction)
3) 1*water pump (used for small power tube to cool the laser tube) or chiller (used for bigger power tube cooling)
4) 1*USB Cable (connecting PC and machine)
5) 1*CD or electronic documents (including software, user manual, guiding videos etc)
6) 2*Power cables
7) 1*Tool box (for routine maintenance)
