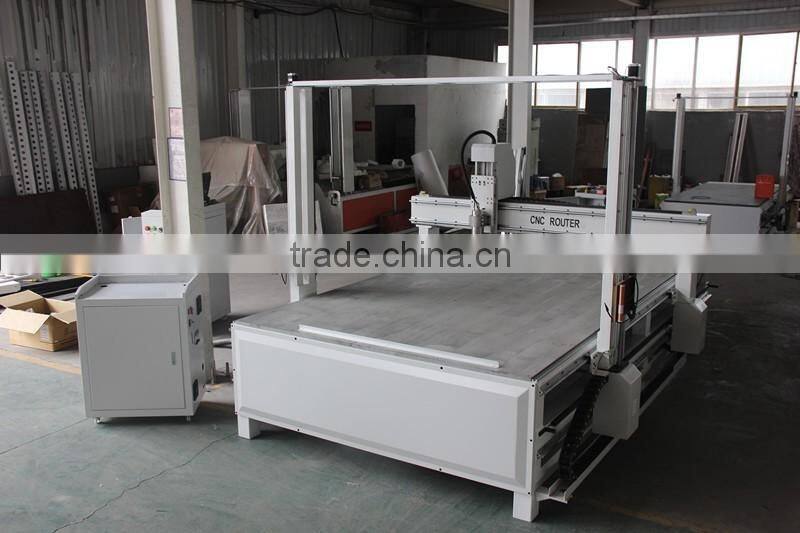

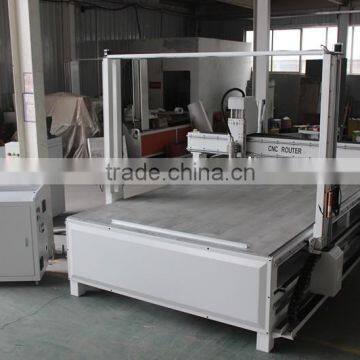

hot wire foam cutting machine and foam engraving cnc router G2030
hot wire foam cutting machine Performance Features:
1.Adopt linear guide, double row and four rank ball slider,large loading capacity , smooth operation, high precision, long service life. Imported high precision ball screw, high cutting precision.
2 .Overall Non-defrmation and thickened square tube bed structure, steel structure bed body, technological welding , the overall is Non-defrmation.
3.Adopt high flexible and resistant bending cables , imported durable electronic components, whole electrical design conforms to the European Union CE standard; Independent of the control cabinet to be with reliable security protection system.
4.Easy operated Ncstudio control software, adopt unique and intelligence budget law, completely develop the potential of motor, realize the constant speed processing, curve and linear line synchronous, curve line is more prefect , do not take up the computer RAM storage and can realize the automatic start-stop of cutting spindle.
5. Better software compatibility and be compatible with type3 / Artcam/Castmate/UCANCAM and other CAD/CAM design software.
6. Adopt high speed stepper motors and drivers, in constant speed and stable operation.
foam engraving machine Performance Features:
1. 3kw water cooled spindle ( or others optional)
2. Z axis is 200mm
3. working area is 2000x3000mm
4.T-slot working table ( or others optional)
5. nc studio control system for foam cutting
6. DSP control system for cnc router
hot wire foam cutting machine Technical Parameter
Model |
G2030 |
Working area (Y*X* mm) |
3000*2000 |
Machine size(mm) |
3600*2200 |
Axis |
2(X Y axis) |
Drive system |
Stepper |
Screw |
Ball Screw |
Table |
Profiles |
Structure |
Rectangle steel welding |
Command |
G code, HPGL |
Working Voltage |
AC220V/50Hz/60HZ |
Temperature |
10°C~50°C |
Humidity |
10%~90% (Without condensation) |
Net weight |
2500KG |
Model |
G2030 |
Remark |
Economic |
sructure |
Rectangle steel welding |
Transmission |
Y:Ballscrew,X gear-wheel |
Gear box |
Small Gear box |
Synchronous wheel X,Y |
5M,1:5 |
Synchronous belt |
5M |
Synchronous wheel Z |
5M 20 wheels |
Synchronous belt |
5M-285 |
gear-wheel |
YCAA670 |
Gear shaft |
93 |

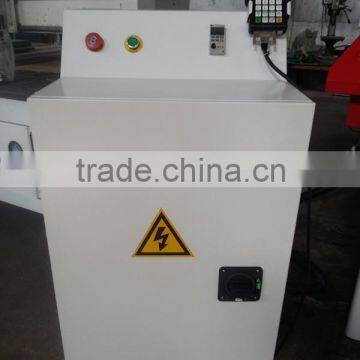

Control box |
Separate |
Working Voltage |
AC220V |
Motor |
450A |
Driver |
M542 |
Regulator |
1000W |
Control system |
NC Studio 5.449 |
Compatible software |
UCANCAM ,artcam,typ3 |

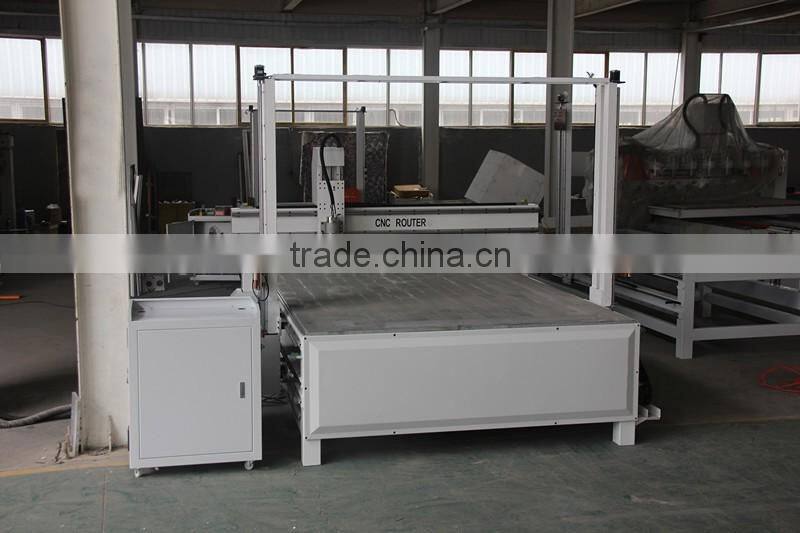

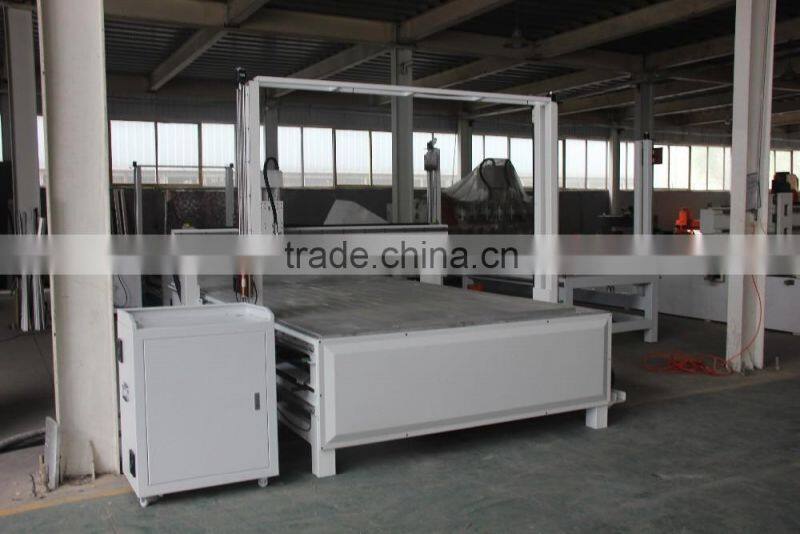

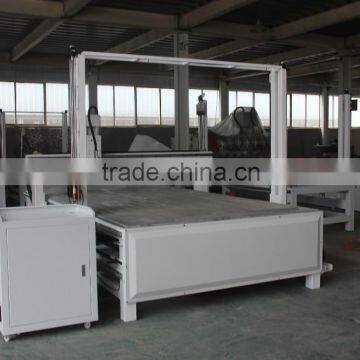

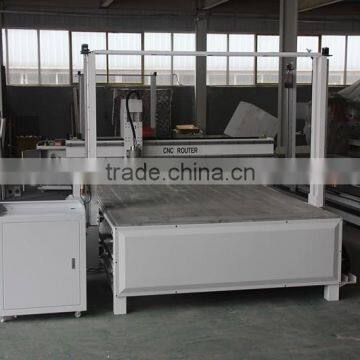

Other Machine Photos

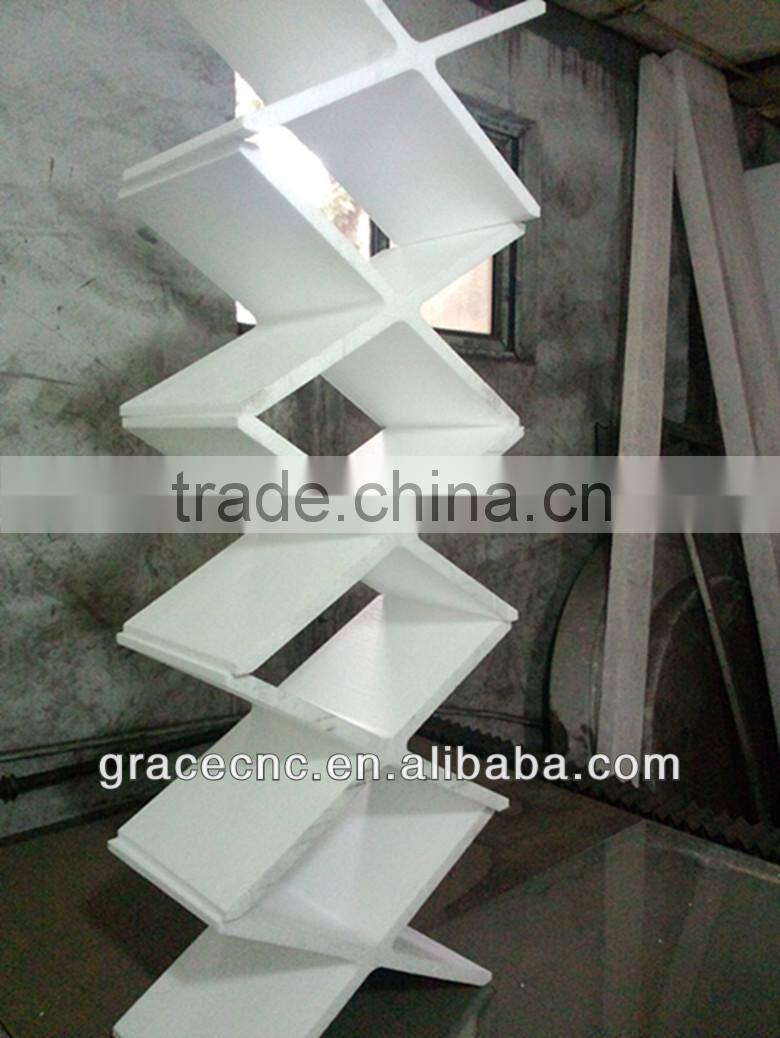

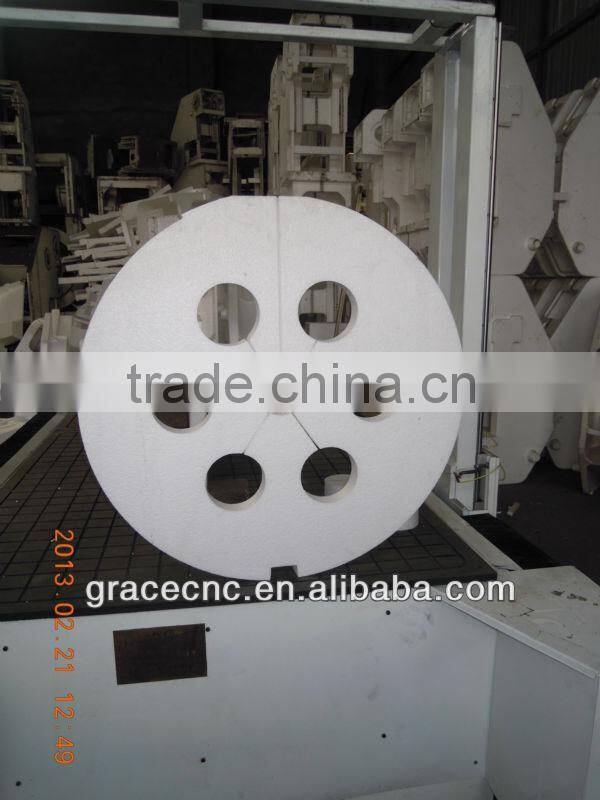

Samples
Customer feedbacks
Shipping terms
By sea
Payment terms
1. T/T(Telegraphic transfer)
2. L/C at sight
3. ESCROW
4. Western Union
5. shipping by sea, pay 50% in advance, the balance against copy of B/L.
Advantage
1.Competitive prices
2.Good reputation, Attentive service.
3.Excellent quality
4. Fast delivery
Packing and transport
