Foam cutting machine ( gear-wheel):
Features:
1. This machine adopts linear orbit, double rows and four columns ball blocks.
Large bearing capacity, running smoothly, high precision and long life.
Imported high precision ballscrew, cutting accurate.
2. Whole thick Square tube structure and not deformation, Steel structure and scientific welding, not deformation overall.
3. Adopts highly flexible, resistant to bending cable. And import durable electronic components.
The whole machine`s electronic design meets the European CE standard.
Separate control box with reliable security protection system.
4. Easy to learn NC Stuido control system, adopt Unique intelligent budget rules, full exert motor potential, achieve constant
speed machining, curves and linear synchronous, and curve is more perfect. Does not account for the computer memory and
realize automatic start and stop of cutting spindle.
5. Software compatibility is better, it can compatible type3/Artcam/Castmate / UCANCAM and
other CAD / CAM design software.
6. High-speed drive stepper motor and drives, so let it constant and stable running.
Parameter:
Model |
G1330 |
Working area (Y*X* mm) |
3000*2000* |
Machine size(mm) |
3600*2200 |
Axis |
2(X Y axis) |
Drive system |
Stepper |
Screw |
Ball Screw |
Table |
Profiles |
Structure |
Rectangle steel welding |
Command |
G code, HPGL |
Working Voltage |
AC220V/50Hz/60HZ |
Temperature |
10°C~50°C |
Humidity |
10%~90% (Without condensation) |
Net weight |
600KG |
Model |
G1330 |
Remark |
Economic |
sructure |
Rectangle steel welding |
Transmission |
Y:Ballscrew,X gear-wheel |
Gear box |
Small Gear box |
Synchronous wheel X,Y |
5M,1:5 |
Synchronous belt |
5M |
Synchronous wheel Z |
5M 20 wheels |
Synchronous belt |
5M-285 |
gear-wheel |
YCAA670 |
Gear shaft |
93 |
Control box |
Separate |
Working Voltage |
AC220V |
Motor |
450A |
Driver |
M542 |
Regulator |
1000W |
Control system |
NC Studio 5.449 |
Compatible software |
UCANCAM ,artcam,typ3 |

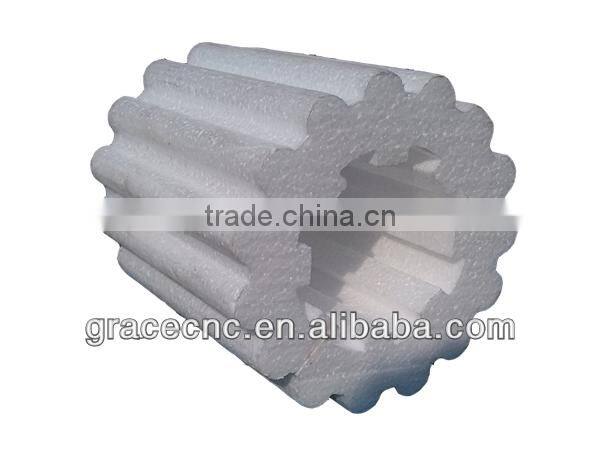

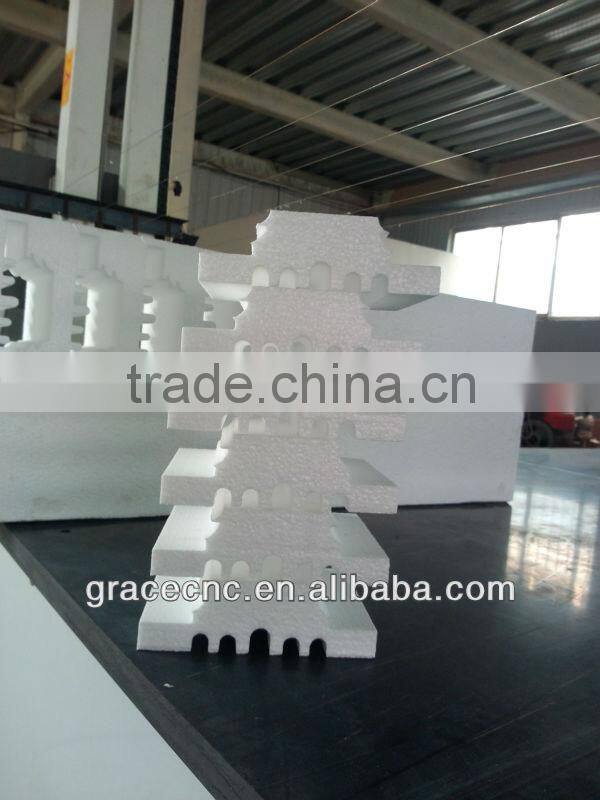

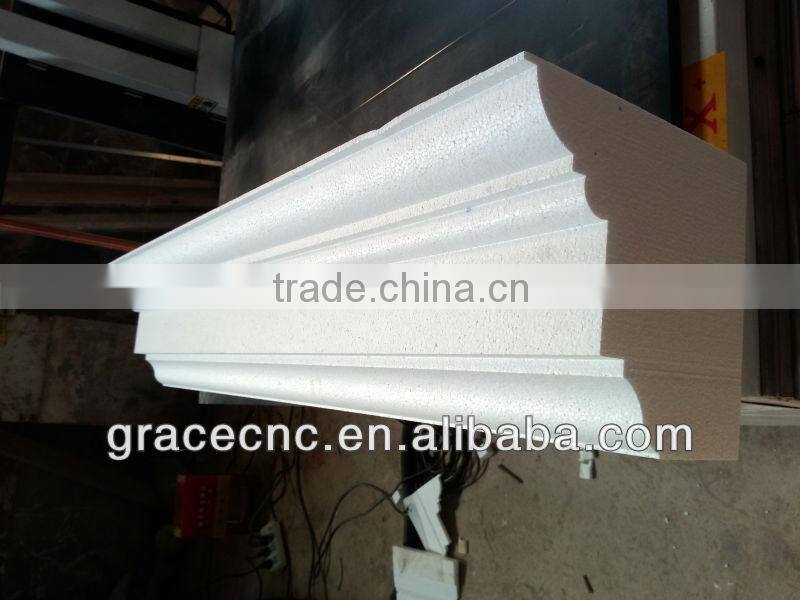

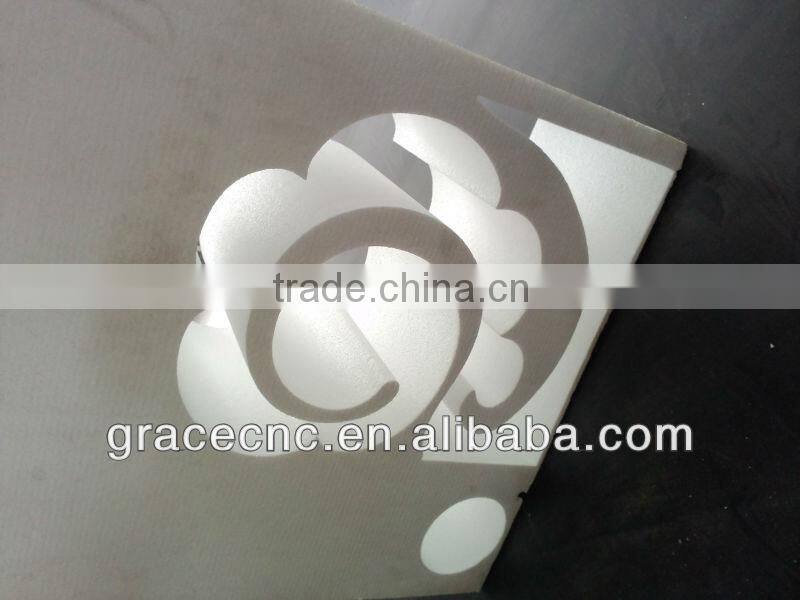

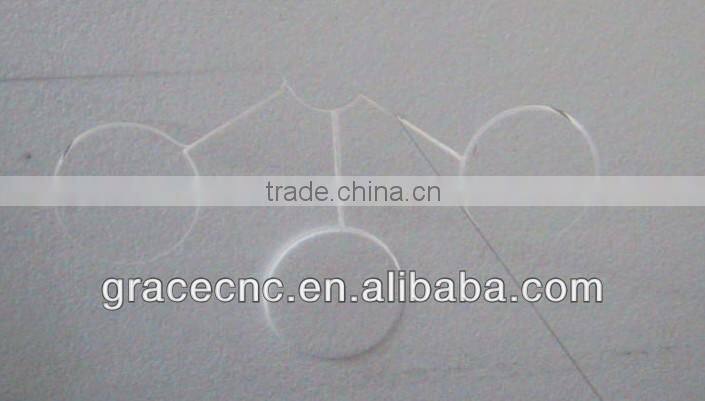

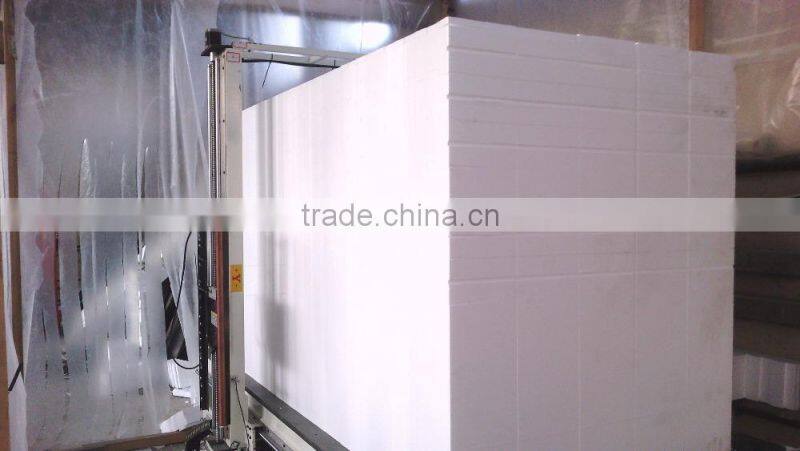

Samples:

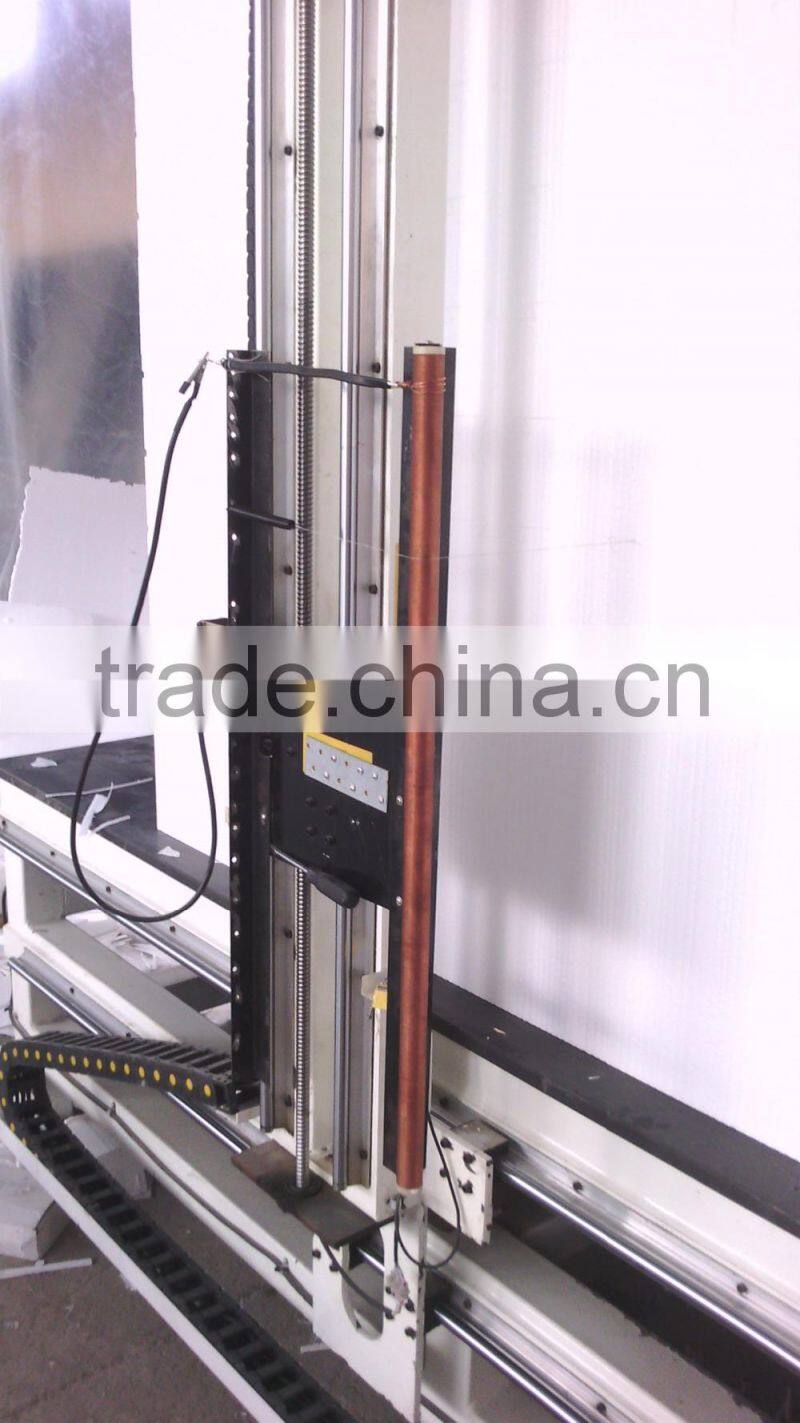

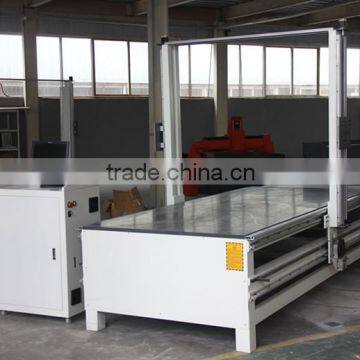

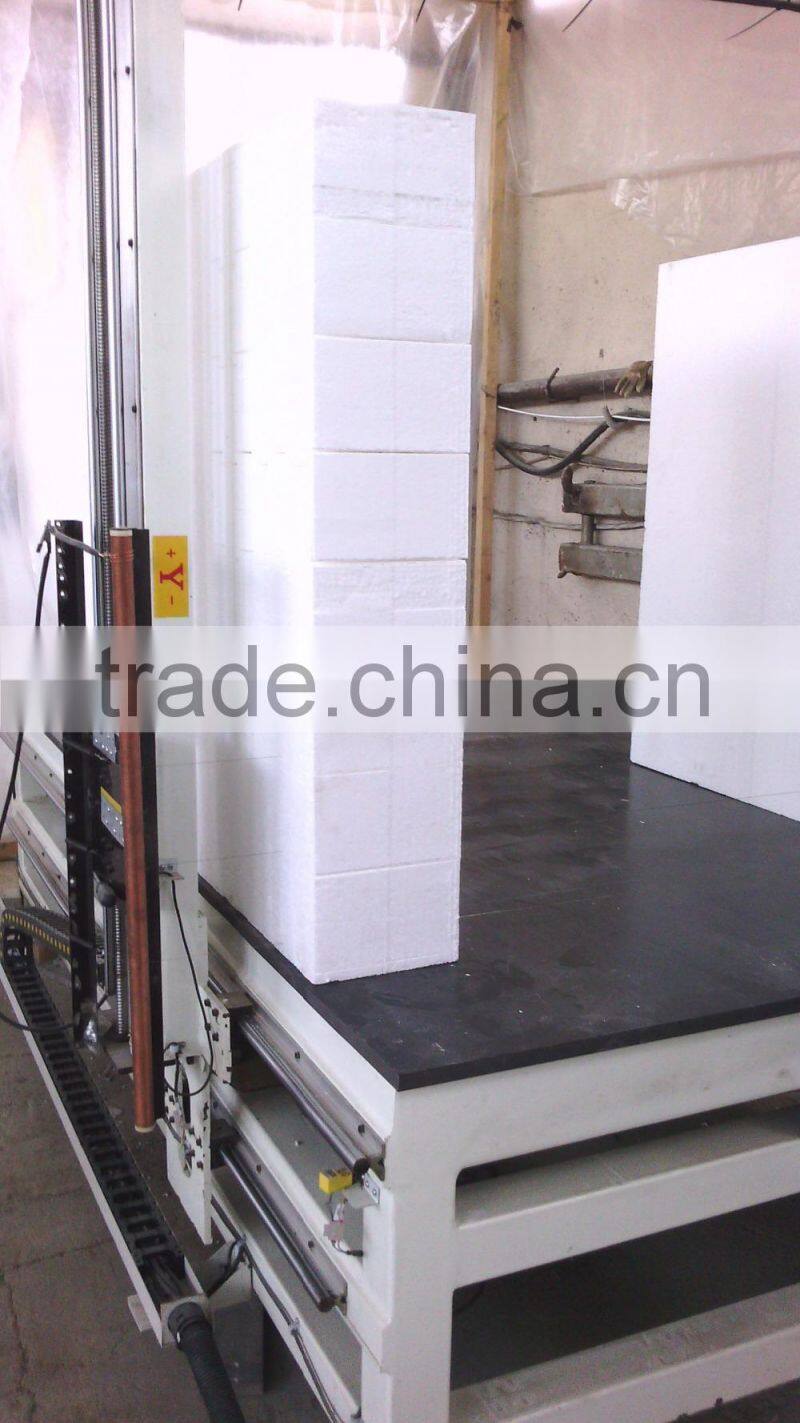

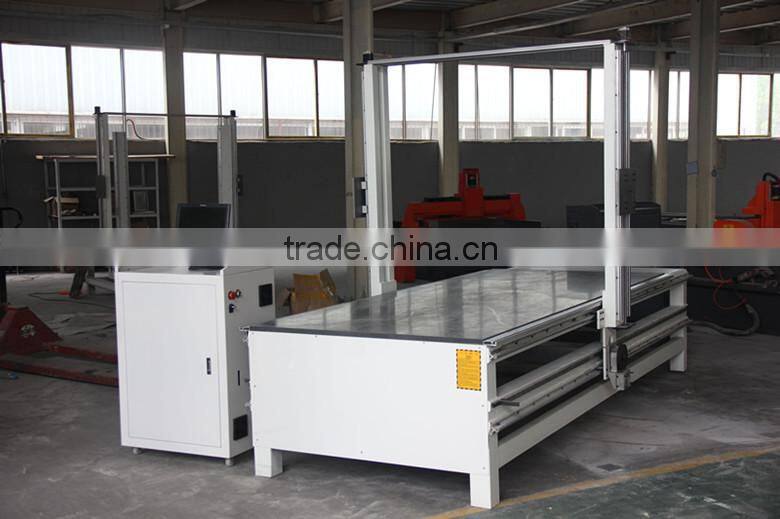

Our machine photos:
Packaging: Standard export wooden case
Shipping: By sea.
1. Quality warranty:
1) The whole machine is 14 months guarantee period.
2) Technical service is whole life time of the machine.
2. After service:
1) To reply your question or solve problem: within 24 hours, whatever online via chatting tools like:
MSN, YAHOO MESSENGER, SKYPE etc, by email or by telephone.
2) Machine will offer installation video, operation video, manual.
3. Delivery time:
10-15 days after getting prepayment, usually 7-10days.
4. Payment term:
T/T 50% in advance, the balance against copy of bill of lading.
5. Document supply:
Commercial invoice ,Packing list ,Bill of lading (If other documents required , please inform us )
6. The port of shipment:
Tianjin port is available .(If other port required, please inform us)
