Specifications
Capacity: 15-20PCS/MinPower: AC220V 50Hz 1500W
Pressure: 0.4-0.6 Kgf
Weight: 415KG
Size: 1500(L)*1700(W) *1500(H) MM

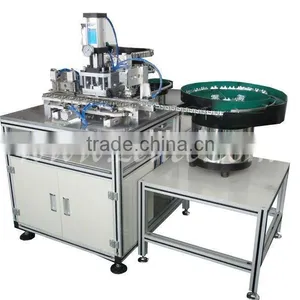

Automatic Screw Assembly Machine/Automatic Screw Locking Machine

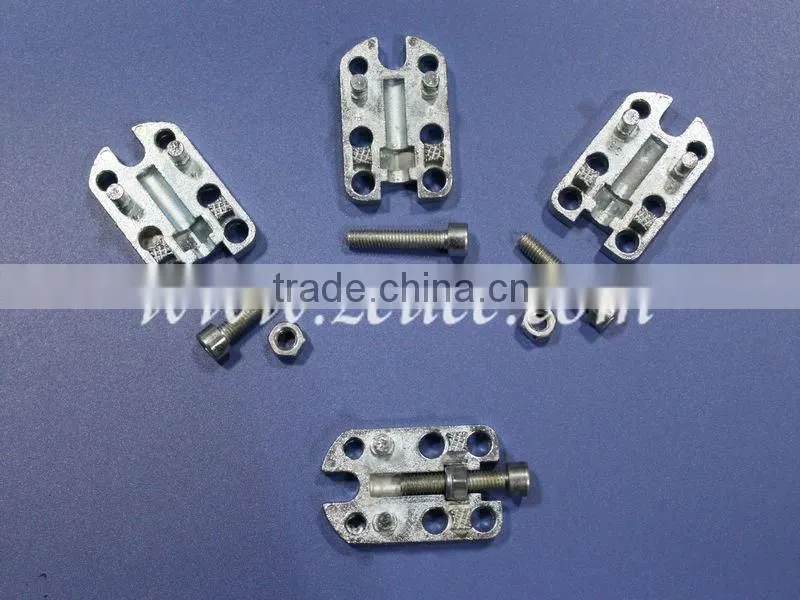

Usage:Apply to lock screw for the accessories of building hardware doors and windows.
Features:
1. The accessories of the machine adopted FESTO/SMC original pneumatic component, Japan THK precision slide rail, precision mold is grinding of S136, cutter parts is made of SKD11 material. Mitsubishi PLC touch screen operation interface.
2. The machine is automatic loading material, hardware and screw assembly, riveting pressure the screw cap, lock screw, to achieve fully automatic operation.
3. With automatic alarming system reporting irregular issues and giving the corresponding solutions in the form of message. It can also induct the incoming materials automatically and point out the lack of materials, predict and record the capacity.
