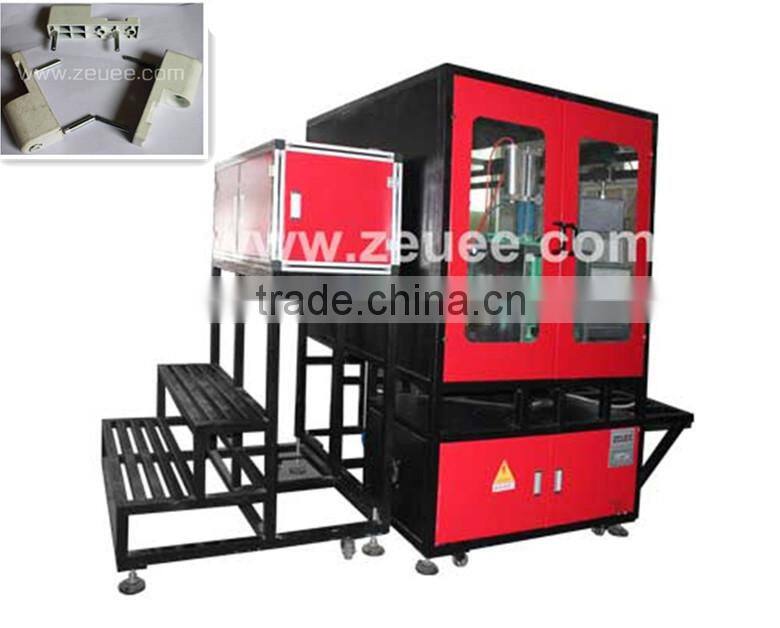

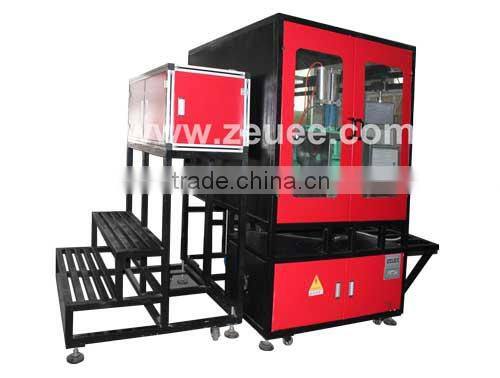

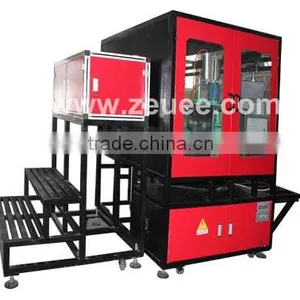

3D Hinge Pins Insertion Machine

Specifications

1.Applied to build hardware doors and windows
2. Assembly automatic equipment
3.High quality, high efficiency and low cost



3D Hinge Pins Insertion Machine





Usage:

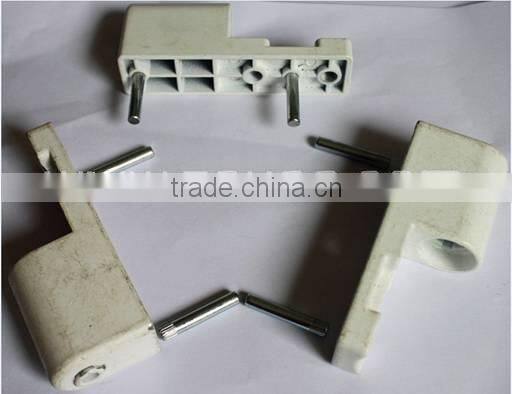

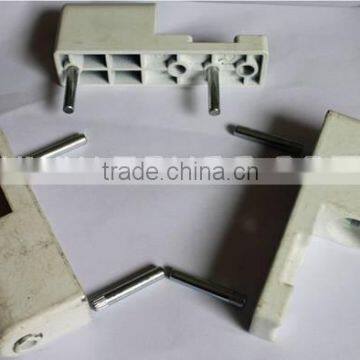

This machine is applied to automatic insertion of the 3D Hinge Pins of building hardware doors and windows.





Features:



Quality:

The accessories of the machine adopted FESTO/SMC original pneumatic component, Taiwan HIWIN precision linear guide, and precision module, which are made of S136 material and all are fine processed, the Mitsubishi PLC , HMI, and other electrical components, which are all using German brand.



Efficiency:

This machine adopts Automatic and SEMI-Automatic feeding mode, to achieve the 3D pins from assembling, pins pressing-in to finished product output automatically.



Intelligence:

Automatically loading material by multi-bit synchronously ; Assembling , pin riveting and detecting fully automatically; Unloading the finished product automatically.





Specification



Model	ZY-FYLK-14-2
Capacity	30-40PCS/Min
Power	AC380V 50HZ 2200W
Air Pressure	0.6-0.7Mpa
Weight	1100KG
Size	2600(L)*1600(W)*2000(H)mm





Pictures of products



Packaging: Wooden case                                     Shipping: Sea shipping





Steps of packaging







6.Online Service



Our sellers and technologist would like to help you according to your requirements. We provide the best services.  For more details, please feel free to contact us.







Shenzhen Zeyu Automatic Equipment Company (ZEUEE) is a high-tech enterprise which specializes in the research and development, manufacturing, marketing, and service of non-standard automatic equipment, We are dedicated to provide automatic solutions with high efficiency, high quality, low cost and fully automatic. The application are widely used in many fields for automatic production such as standard fasteners, metal accessories, automotive electronic components, railway electronic components, aviation electronic components, civil electronic components, household appliance, locks, construction hardware, medical instrument parts, cosmetic assembly and lighter assembly, etc. The automatic solution can effectively solve the increasing severe problems of high cost, poor efficiency, low quality, recruitment difficult and hard management, etc. It also can save resources, increase benefit, and achieve the concept of "Harmony and Win-win".

To know more about us, please visit .



Company overview

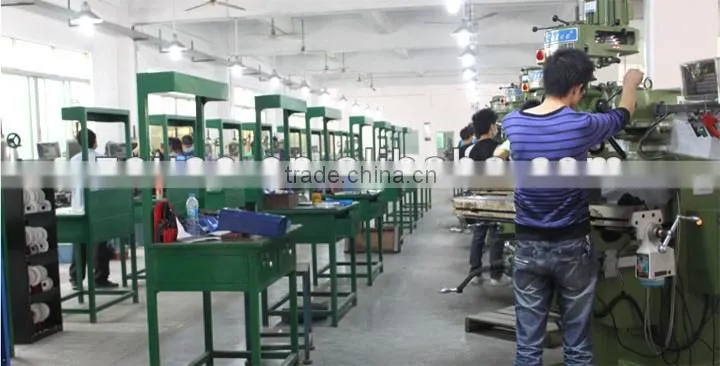

Machining department

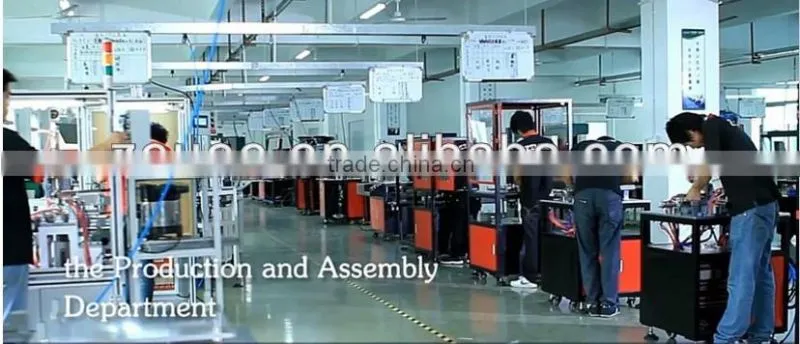

The production and assembly department



Our Cooperate partner







Certification:





We are experienced and will offer very high quality, high efficiency, lost cost and strong innovation ability machines. If you have any inquires of our products, please feel free to contact me.
