CNC router linear G1325ATC

Specifications

1. Taiwan LNC control system
2. Japan servo motors and inverters,
3. HSD Spindle
4. CE certificate
5 AUTO tool change

CNC Auto tool change router G1325ATC



Standard Features:

1. Normal type Thick Whole Steel structure,

2. Taiwan Hiwin imported square orbits,

3. Germany ballscrew for z axis,

4. gear-wheel for x and y axises,

5. Taiwan LNC control system / TAIWAN Syntec control system / Original NC Studio control system

6. UCANCAM software( orignal version) and ARTCAM Software (copy version),

7. China domestic made 6Kw  water cooled spindle / 9Kw HSD Italy air cooled spindle,

8. vacuum table,

9. water cooled vacuum pump,

10. dust extraction system with 6 zones separately control zones,

11. dust extraction hood,

12. Dust collector

13. Auto tool aligning system, Auto oiling,8 Tools changer,

14. Japan servo motors and inverters, Taiwan Delta frequency inverter,

15. 12 cutters (φ6, φ12.7),

16. 3 collets

17. Z axis tool censor





 Technical Parameter:

Working area:	1300x2500x200mm
Spindle type:	water cooled spindle
Spindle power	6 kw or 9 kw
Spindle rotating speed	0-24000rpm
Power (except spindle power):	8.87KW (include powers of: motors, drivers, inverters and so on)
Power supply:	AC380±10,  50 HZ
Max moving speed:	35m/min
Max. working speed:	25m/min
Worktable:	Vacuum table (optional: T slot table or T slot table +vacuum table)
Locating precision:	<0.01mm
Min shaping character:	Character:3x3mm,letter:2x2mm
Operating temperature:	5°C-40°C
Working humidity	30%-75%(without condensed water)
Working precision:	±0.05mm
System resolution:	±0.001mm
Control configuration:	DSP5.0
Data transfer interface:	USB(offline)
System environment:	WINDOWS 2000/WINDOWS XP/ windows 7
Spindle cooling way:	Water cooling by water pump (optional: chiller)
Graphic format supported:	G code: *.u00, * mmg, * plt, *.nc
Compatible software	ARTCAM, UCANCAM and other CAD or CAM softwares….
Cutting thickness:	0-70mm also (depends on different material)
Z tool censor:	yes
Whole machine dimension:	3650x2050x1900(mm)
Net weight:	1600kgs
Gross weight	1650kgs
packing	Plywood case (veneer wood case for export)

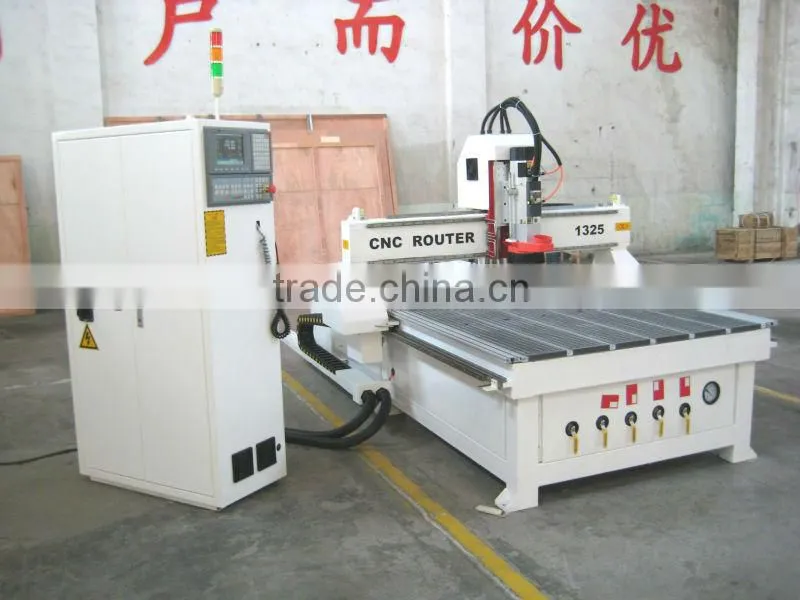

Machine pictures:







LNC Control system:





Original NC studio control system (specifically for auto tool change machine):



Table and square orbits:





 servo motor and drivers:





Linear auto tool change:



Samples:



















If you want to see other materials samples, please feel free to contact me, we shall be more than pleased to supply them.



Shipping terms:

1. By  sea,

2. By air express: such as TNT, DHL, EMS, FedEx and so on.  around 5days to reach.



Payment terms:

1. T/T(Telegraphic transfer)

2. L/C at sight

3. ESCROW

4. Western Union

5. If you choose shipping by sea, pay 50% in advance, the balance against copy of B/L.

    If you choose shipping by air, pay 100% in advance.



Advantage:

1.Competitive prices

2.Good reputation, Attentive service.

3.Excellent quality

4. Fast delivery
