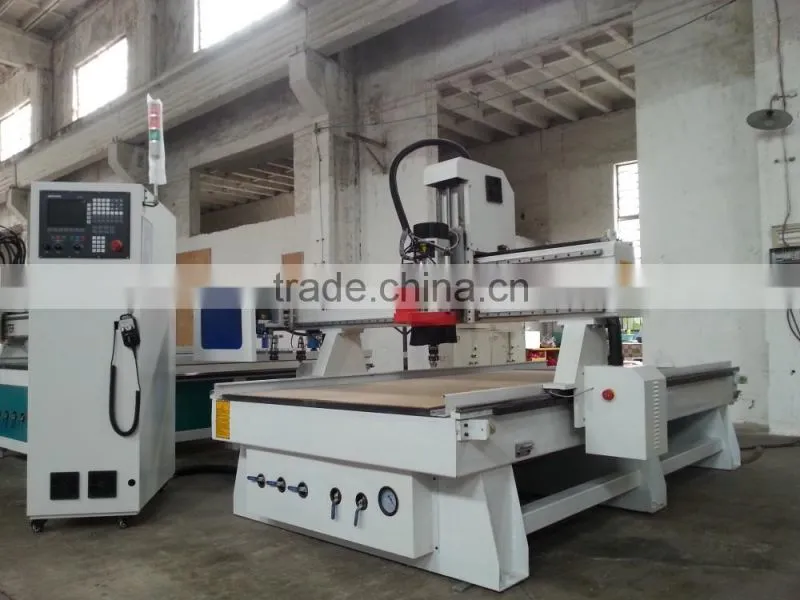

Help CenterRound Auto Tool Change CNC Router G1325 9KW HSD
Related Products
-
Auto Tool Change Cnc Router MachineNegotiableMOQ: 1 Set -
Cnc Linear Type ATC RouterNegotiableMOQ: 1 Set
-
Round ATC CNC Router G1325 9KW HSDNegotiableMOQ: 1 Set
-
Pneumatic Tool Change CNC Router G1325 Italy HSD SpindleNegotiableMOQ: 1 Set
-
Pneumatic Tool Change CNC Router G1325NegotiableMOQ: 1 Set

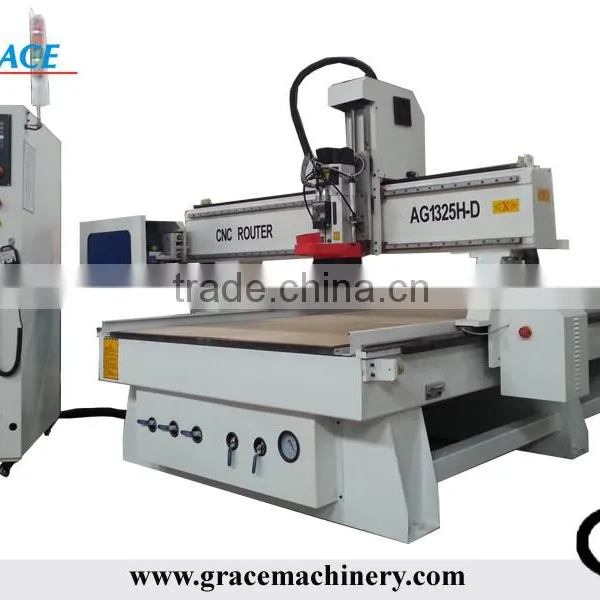

Round auto tool change Wood CNC Router machine
Product features:
1. Thick Whole Steel T type structure, taiwan HIWIN square orbit, ballscrew for z axis,
2. Z axis Germany ballscrew, X and Y axises gear rack (with pinion).
3. TAIWAN Syntec control system or Taiwan LNC control system,
4. UCANCAM and Artcam Software,
5. 5.5kw, 9Kw China made or HSD Italy air cooled spindle, 1 year guarantee period, 18000rpm.
6. vacuum table and dust extraction system with 6 zones separately control,
7.water cooled vacuum pump, dust extraction hood,
8. Auto tool aligning system, Auto oiling, 8 Tools changer,
9. Japan servo motors 750w and inverters, Taiwan Delta frequency inverter,
10. 12 cutters( φ6, φ12.7), 3 collets
11. Files Support:: G code, like files of: *.u00, * mmg, * plt, *.nc etc.
12 Software: English software with tutorial CD.
13 Installation manual: CD files
Application:
1. Advertising industry: cutting/engraving/drilling/photo engraving on wood, MDF, bamboo, plastic, PVC, acrylic, two colors board, metals, stone etc.
2. Manufacturing industry: engrave, cut, drill, photo engraving on copper, iron and aluminum, alloy, steel etc.
3. Furniture making: wood door cutting, wood door artwork engraving, wave boards making, 3d photo engraving,
small or large relief works, cylinder materials engraving, 3d photo engraving etc.
4. Artwork industry: Figure engraving, character engraving and cutting, name brand making, small gift cutting,
souvenirs making , Carving various decoration letters, figures on small windows, fences, wall, etc.
5. Model making: to cut materials into different shapes for models making.
6. Stamps making industry: Carving on many different materials like rubber, acrylic, cattle horn, plastic,
wood and ink storage materials and so on.
Note: There are also some other industries application of cnc router machines, pls confirm with us if you are not sure.
Specifications:
Working area: |
1300x2500x350mm |
Spindle type: |
Air cooled spindle |
Spindle power |
5.5 OR 9 kw |
Spindle rotating speed |
0-18000rpm |
Power (except spindle power): |
8.87KW (include powers of: motors, drivers, inverters and so on) |
Power supply: |
AC380±10, 50 HZ |
Max moving speed: |
35m/min |
Max. working speed: |
25m/min |
Worktable: |
T slot table |
Locating precision: |
<0.01mm |
Min shaping character: |
Character:3x3mm,letter:2x2mm |
Operating temperature: |
5°C-40°C |
Working humidity |
30%-75%(without condensed water) |
Working precision: |
±0.05mm |
System resolution: |
±0.001mm |
Control configuration: |
DSP5.0 |
Data transfer interface: |
USB(offline) |
System environment: |
WINDOWS 2000/WINDOWS XP/ windows 7 |
Spindle cooling way: |
Water cooling by water pump (optional: chiller) |
Graphic format supported: |
G code: *.u00, * mmg, * plt, *.nc |
Compatible software |
ARTCAM, UCANCAM and other CAD or CAM softwares…. |
Cutting thickness: |
0-70mm also (depends on different material) |
Z tool censor: |
yes |
Whole machine dimension: |
3250x2050x1900(mm) |
Net weight: |
1650kgs |
Gross weight |
1780kgs |
packing |
Plywood case (veneer wood case for export) |
Optional parts |
1. Air cooled type spindle (China brand or Italian brand) 2. Bigger or smaller power spindles (6kw or 3kw) 3. High-grade cooling system (chiller, it has alarming system) 4. double-head or more heads 5. Cylinder rotary clamp (for cylinder materials working. Like cup, pen, bottles, logs etc) 6. servo motors (China brand or Japan brand) 8. Auto tool change system (this system need other systems accordingly, like LNC control system, servo motors etc) 9. NCstudio control system 10. other customerized features Note: Above are the main optionals, not all the machines can add above optionals, please contact us, we will give you suggestions, thanks. |
Samples and industries application:
Wood applications and furniture making
Metal engraving
PCB circuit board working
Part photos:
