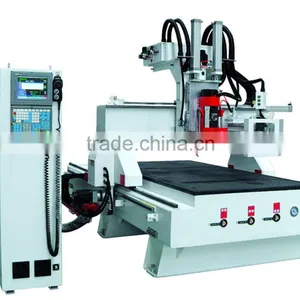

G1325 cassette type
main features:
1. This machine is suit for diverse complexity products processing, wide functions: engraving and milling, drilling,
cutting, side milling, chamfering edge and so on.
2. All mechanical, electrical components adopts international top brand products, such as Germanys vacuum system
and drive system, servo drive system from Japan, Italy imported spindle.
3. Bamboohat ATC system, tool changer capacity is 8 pieces, tool changing time just need 8 seconds.
4. Two-track and bilateral conveyor table, is heavy type cutting machine.
5. Besides, G1530D, G2040 and other variety of models is available for you to choose
Applicable industries and materials:
1. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2. The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
3. plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum
plate engraving and milling process
Parameters:
|
Stroke range:
|
X axis |
1300mm |
Y axis |
2500mm |
|
Z axis |
330mm |
|
tool change type |
Cassette type |
|
Process precision |
±0.05mm |
|
Reposition accuracy |
±0.05mm |
|
Table structure |
Vacuum table |
|
X,Y,Z structure: |
X,Y rack, Z screw |
|
Empty speed |
≥16000mm/min |
|
Work speed |
≥10000mm/min |
|
Spindle power |
Italian HSD brand air cooled spindle 9kw |
|
Spindle rotate speed |
0-24000rpm/min |
|
Motor type |
Japan Yaskawa brand servo motor and drivers |
|
Command code |
G code |
|
Working voltage |
AC380V/50HZ |
|
Operating system |
Taiwan SYNTEC |
|
Quality warranty:
1.whole machine one year guarantee period
2.Technical service is whole life time of the machine
After service:
1. To reply your question or solve problem: within 24 hours, whatever online via chatting tools like:
MSN, YAHOO MESSENGER, SKYPE etc, by email or by telephone.
2. Machine will offer installation vedio, operation vedio, manual.

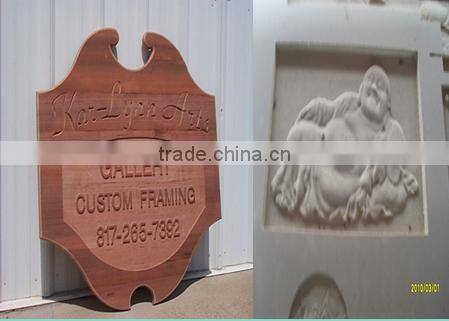

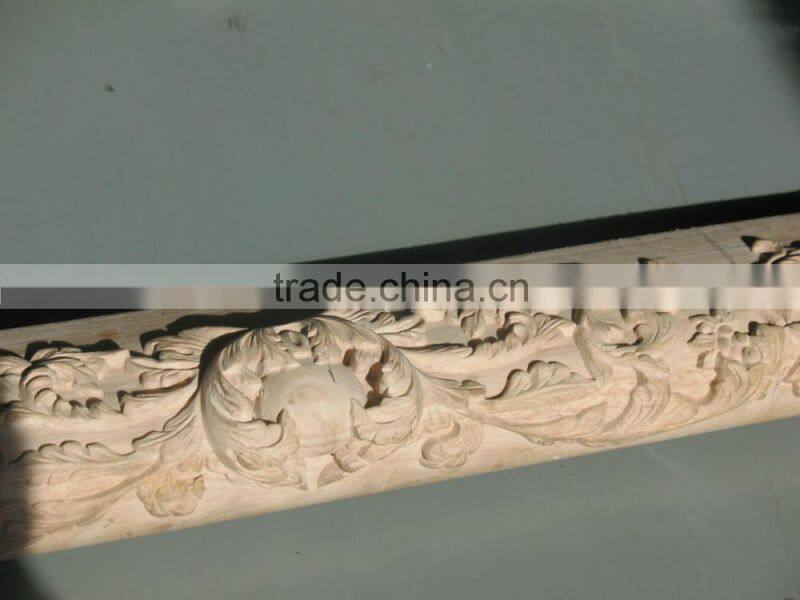

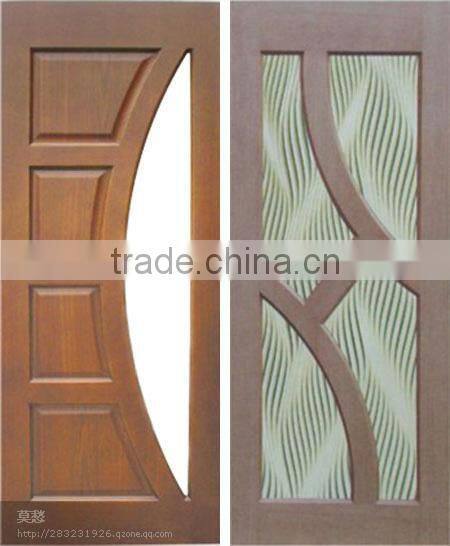

samples:
certificate:
customer feedback:
