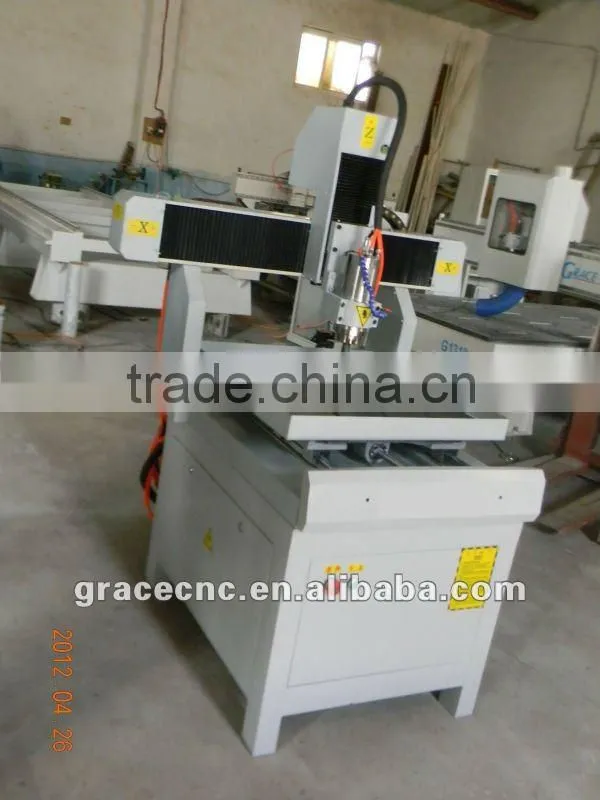

Mini cc Router for Stone G6060S

Name: Mini cc Router for Stone G6060S
Brand: GRACE
SKU: 110047271
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Jinan Grace Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/shanghai/tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name GRACE

Model Number G6060S

Voltage 220V

Power(W) 3KW

Certification CE

Warranty 1 year

Specifications

1.Germany ballscrew, Taiwan, HIWIN oribit.
2. DSP control system,
3.three axies dust proof, water proof,
4. CE certificate

Stone working router G6060S

Main Standard Features:

1. Normal type Whole cast iron stucture

2. Taiwan Hiwin imported three axies round orbits

3. Germany ballscrew

4. U flash disk interface DSP control system,

5. UCANCAM Software (original version) and ARTCAM Software (copy version),

6. 3 KW (imported bearing) water cooled spindle,

7. fully shielded, uneasy distorted cable,

8. 20 cutters(φ3.175, φ4, φ6), 3 collets

9. three axies dust proof, water proof,

Technical Parameter:

Working area:	600600180 mm
Spindle type:	Water cooled spindle
Spindle power	3 kw
Spindle rotating speed	0-24000rpm
Power (except spindle power):	3.3 KW (include powers of: motors, drivers, inverters and so on)
Power supply:	AC220±10, 50 HZ
Max moving speed:	12m/min
Max. working speed:	8m/min
Worktable:	(optional: T slot table or T slot table +vacuum table)
Locating precision:	<0.01mm
Min shaping character:	Character:3x3mm,letter:2x2mm
Operating temperature:	5°C-40°C
Working humidity	30%-75%(without condensed water)
Working precision:	±0.05mm
System resolution:	±0.001mm
Control configuration:	DSP5.0
Data transfer interface:	USB(offline)
System environment:	WINDOWS 2000/WINDOWS XP/ windows 7
Spindle cooling way:	Water cooling by water pump (optional: chiller)
Graphic format supported:	G code: .u00, mmg, * plt, *.nc
Compatible software	ARTCAM, UCANCAM and other CAD or CAM softwares….
Cutting thickness:	0-70mm also (depends on different material)
Z tool censor:	yes
Whole machine dimension:	140010801300(mm)
Net weight:	500kgs
Gross weight	650kgs
packing	Plywood case (veneer wood case for export)
