G1325 Heavy Stone Working Router
Standard Features:
1. Whole thick steel structure, steel gantry. T type machine structure.
2. three axises imported square orbits, gear-wheel
3. three axises dust proof, water proof,
4. 4.5kw imported bearing water cooled spindle,
5. High quality stable inverter and motors,
6. fully shielded, uneasy distorted wires
7. USB interface DSP control system,
8. UCANCAM software, Artcam software,
9. 20 cutters (φ3.175, φ4, φ6, one marble working cutter, others are other types of advertising cutters),
3 collets for spare use.
10. AC380V 3PHASE
Application:
Advertising field: cutting, carving, engraving and hole making on materials of: marble, stone, sandstone, wood,
bamboo, acrylic, rubber, plastic, metals and so on.
Artwork field: Carving various characters and figures on gifts, furniture, wood articles, artworks and souvenirs.
Construction field: Applied in carving of elaborate characters and patterns, processing of small matrix products.
Carving some elaborate small windows, fences, wall decoration patterns etc.
Stamp making: Carving various seals with cattle horn, plastic, wood etc.
Metal working field: also can engrave on many kinds of metals like: copper, iron, aluminum and so on. Also can
cut thin metals, if need to cut more deep, need cut it by passes, usually one pass cutting thickness is around 2-3mm, the work thickness depend on different materials.
Parameters:
Model |
G1325S |
X,Y working area |
1300×2500mm |
Z working area |
200-250mm |
Table Size |
1400×1320mm |
Max. Speed |
>30m/min |
Max. working speed |
15-20m/min |
Max. feeding height |
110-120mm |
Working delicacy |
0.001mm |
Repositioning accuracy |
0.01mm |
Command |
G code*.u00*.mmg*.plt |
Surroundings for software |
windows98/2000/xp |
Power (spindle power is not included) |
3300w |
Working voltage |
AC380V/50Hz |
Spindle power |
4.5kw water cooling spindle or bigger power |
Spindle rotating speed |
0-24000RPM |
Drive motor |
Step |
Net weight |
1800kgs |
Note: Size can be customerized.

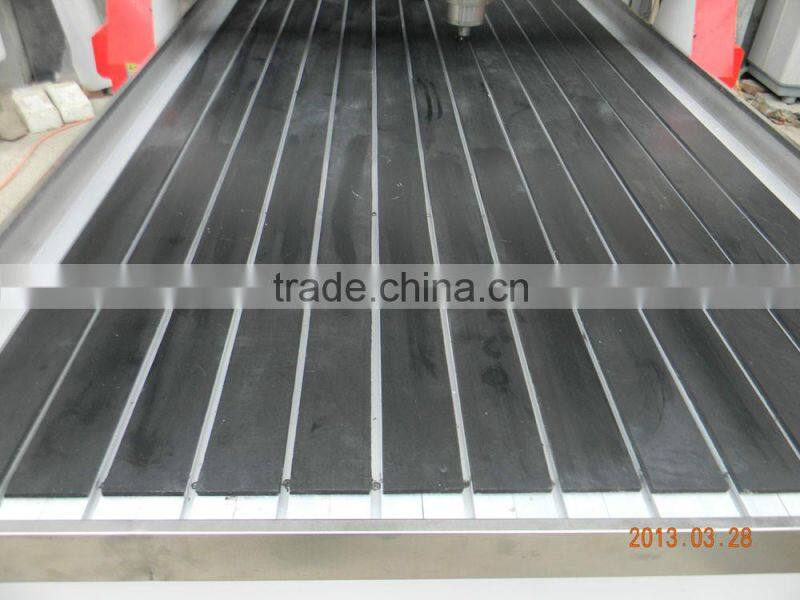

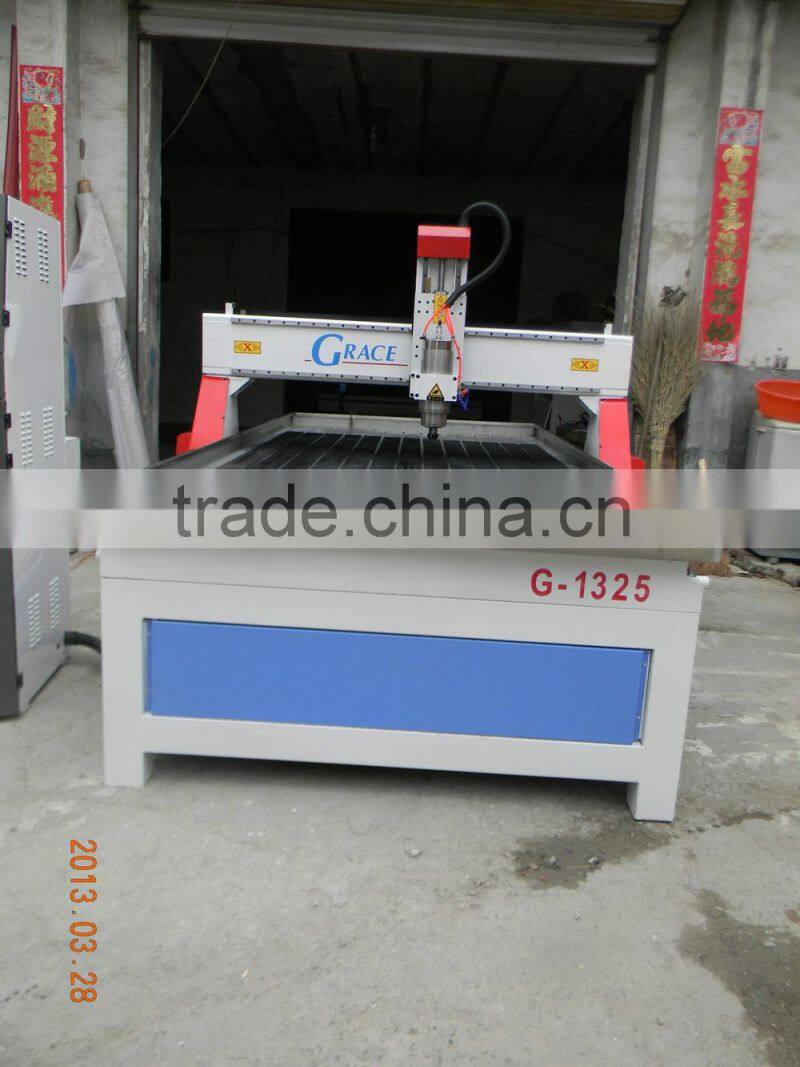

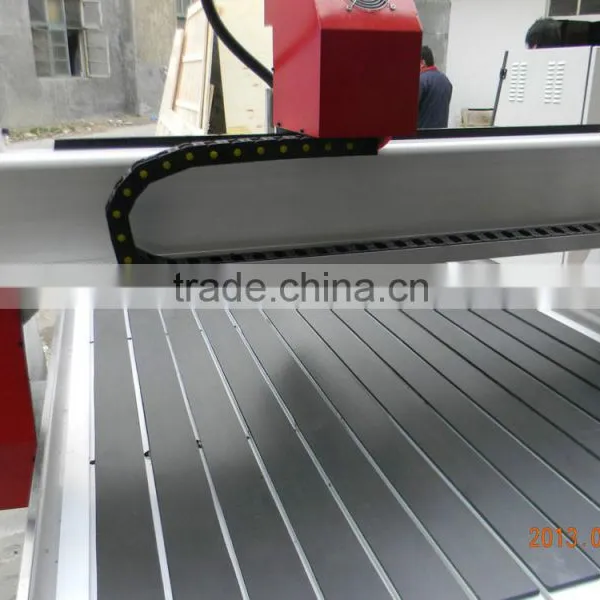

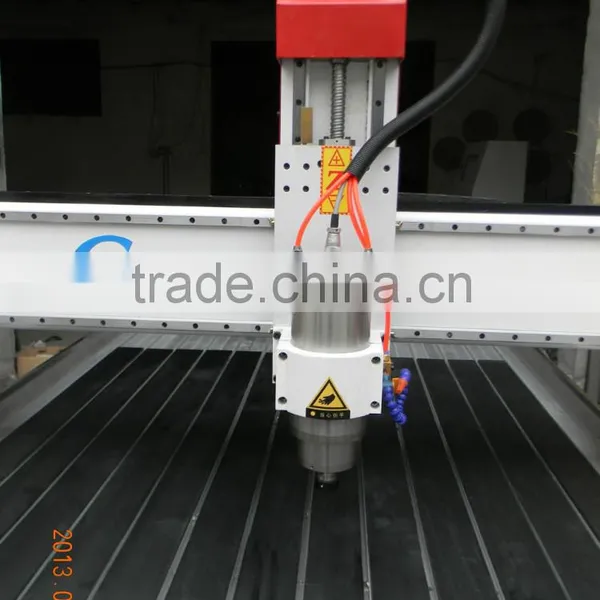

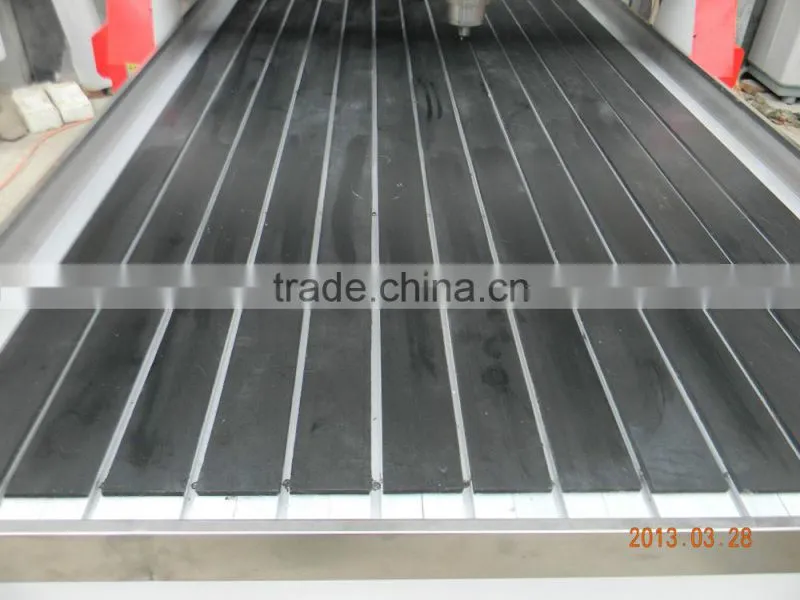

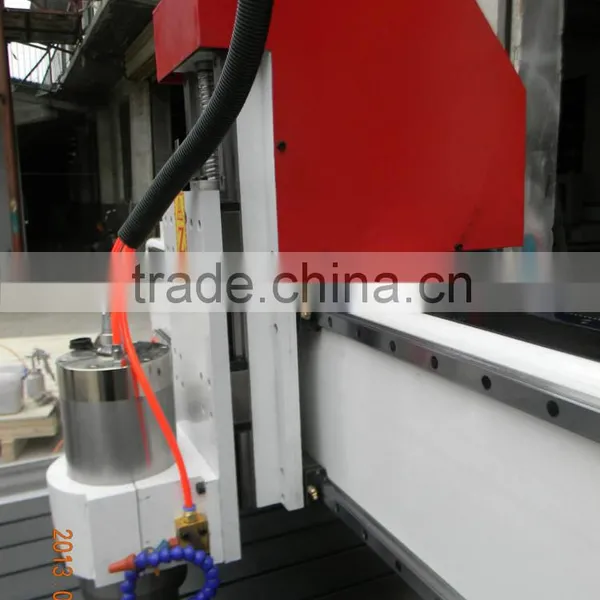

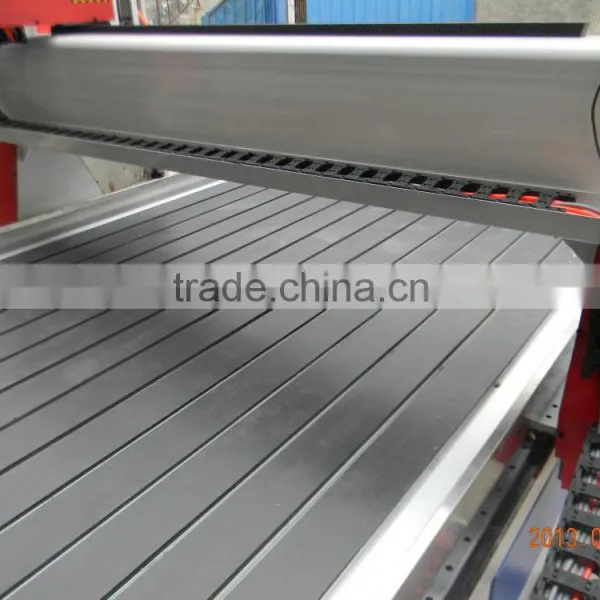

Machine photos:
samples:
Certificate:
