G6090S CNC Router Machine
Standard Features:
1. Whole cast iron structure,
2. three axises imported square orbits, imported ballscrew,
3. three axises dust proof, water proof,
4. 3kw imported bearing water cooled spindle,
5. High quality stable inverter and motors,
6. fully shielded, uneasy distorted wires
7. USB interface DSP control system,
8. UCANCAM software, Artcam software.
9. 20 cutters (φ3.175, φ4, φ6), 3 collets for spare use.
Application:
Advertising field: cutting, carving, engraving and hole making on materials of: marble, stone, sandstone, wood,
bamboo, acrylic, rubber, plastic, metals and so on.
Artwork field: Carving various characters and figures on gifts, furniture, wood articles, artworks and souvenirs.
Construction field: Applied in carving of elaborate characters and patterns, processing of small matrix products.
Carving some elaborate small windows, fences, wall decoration patterns etc.
Stamp making: Carving various seals with cattle horn, plastic, wood etc.
Metal working field: also can engrave on many kinds of metals like: copper, iron, aluminum and so on. Also can
cut thin metals, if need to cut more deep, need cut it by passes, usually one pass cutting thickness is around 2-3mm, the work thickness depend on different materials.
Parameters:
Model |
G6090S |
X,Y working area |
600×900mm |
Z working area |
120mm |
Table Size |
700×920mm |
Max. Speed |
>10m/min |
Max. working speed |
5m-6m/min |
Max. feeding height |
110-120mm |
Working delicacy |
0.005mm |
Repositioning accuracy |
0.05mm |
Command |
G code*.u00*.mmg*.plt |
Surroundings for software |
windows98/2000/xp |
Power (spindle power is not included) |
1500w |
Working voltage |
AC220V/50Hz |
Spindle power |
3kw water cooling spindle |
Spindle rotating speed |
0-24000RPM |
Drive motor |
Step |
Net weight |
400kgs |
Packing List:
NO |
DEC |
QTY |
UNIT |
1 |
CNC router table |
1 |
PC |
2 |
DSP controller |
1 |
PC |
3 |
DSP controller data wire |
1 |
PC |
4 |
USB wire used for dowloading the file |
1 |
PC |
5 |
UCANCAM & ARTCAM(English version) |
2 |
Set |
7 |
user manual |
1 |
PC |
8 |
Tools |
20 |
PC |
9 |
collets |
3 |
PC |
10 |
single mouth spanner |
2 |
PC |
11 |
hexangular spanner |
3 |
PC |
12 |
tool case |
1 |
PC |
13 |
water pump –for water cooling spindle |
1 |
PC |
14 |
Emergency Button |
1 |
PC |
15 |
Start Button |
1 |
PC |
16 |
Limit switch |
2 |
PC |
17 |
Lines |
some |
M |
Quality warranty:
- whole machine one year guarantee period
- Technical service is whole life time of the machine
After service:
1. To reply your question or solve problem: within 24 hours, whatever online via chatting tools like:
MSN, YAHOO MESSENGER, SKYPE etc, by email or by telephone.
2. Machine will offer installation vedio, operation vedio, manual.

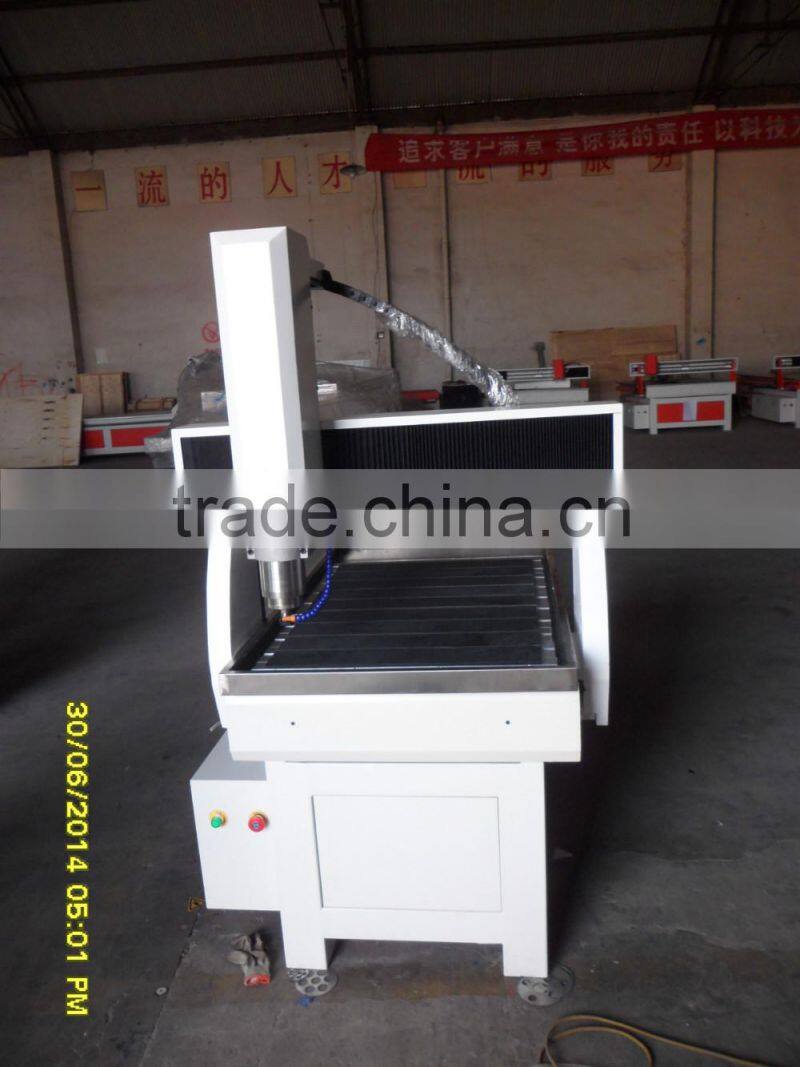

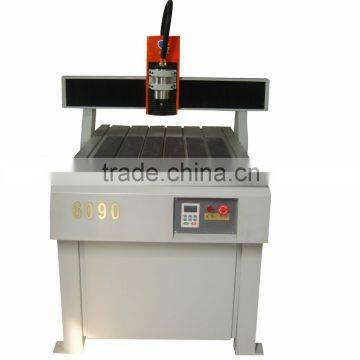

Machine photo:

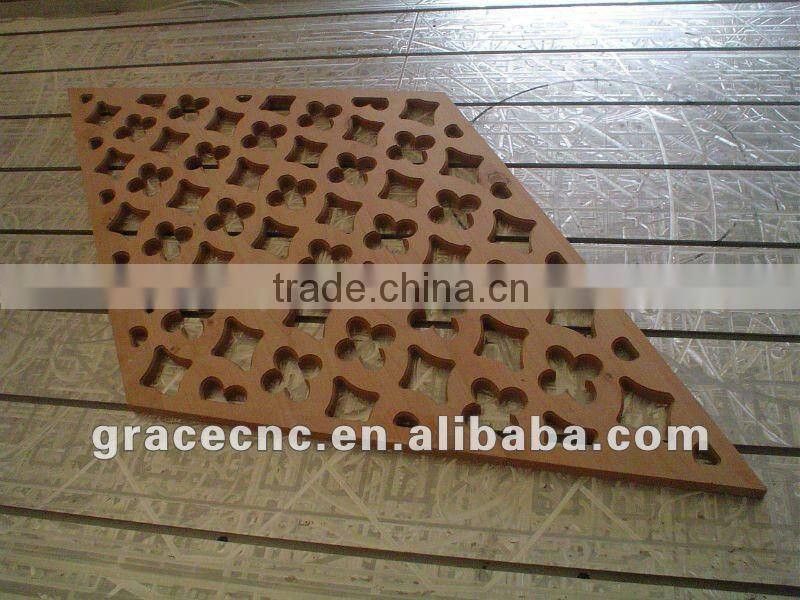

samples:

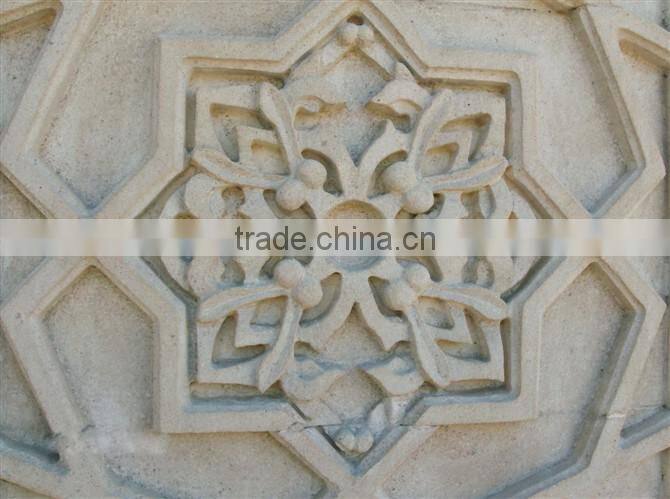

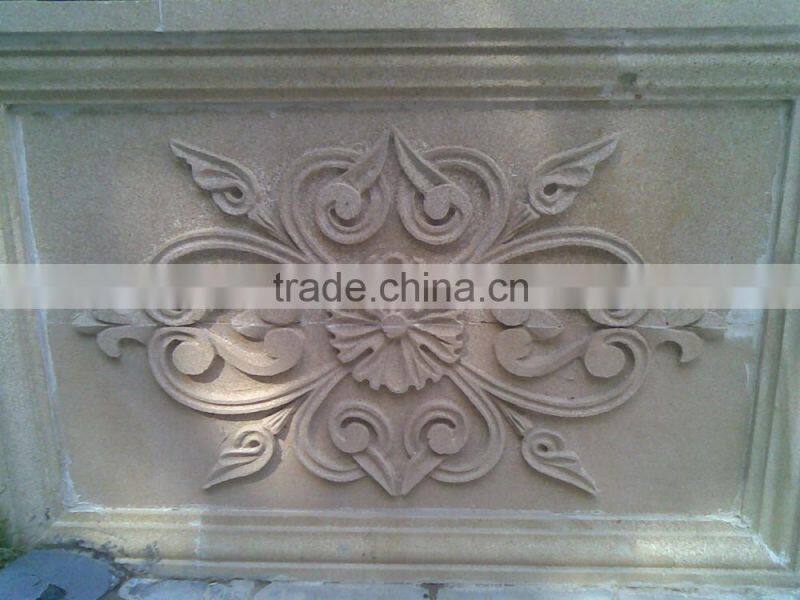

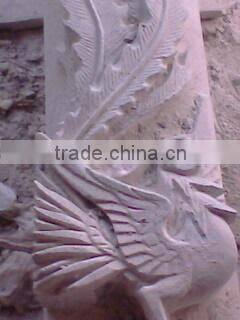

stone working stone working
stone working
Two colors board and metals engraving &cutting Wood engraving and cutting
Wood Cutting
certificate:
customer feedback:
