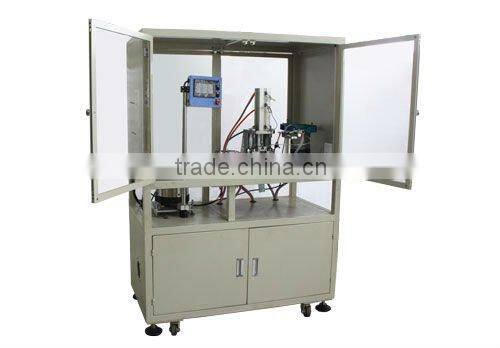

Fiber Optic Connector Ceramic Ferrule Automatic Assembly Machine

Specifications

Fiber Optic Connector Ceramic Ferrule Automatic Assembly Machine
Capacity:25-30PCS/Min
Power:AC220V 50HZ
Pressure:0.6Mpa

Fiber Optic Connector Ceramic Ferrule Automatic Assembly Machine





Specification:

Model:ZEUEE-ZG12041301

Capacity:25-30PCS/Min

Power:AC220V 50HZ

Pressure:0.6Mpa±0.1

Weight:150KG

Size:1200(L)*600(W)*750(H)mm





Usage:Applied to Fiber Optic Connector Ceramic Ferrule Automatic Assembly





Quality:

The accessories of the machine adopted FESTO/SMC original pneumatic component, Taiwan HIWIN precision linear guide, and precision module, which are made of S136, the Mitsubishi PLC , HMI, and other electrical components, which are all using German brand.







Efficiency:

· Feeding the metal part and ceramic ferrule automatically

· Fully automatic assembly, process monitoring, detecting and sorting of “good” product and “rejected” product

· Unloading the finished product automatically







Intelligence:

It equips with automatic alarming system, which reporting irregular operations and giving the relative solutions in the form of message . It also can induct the incoming materials automatically and point out the lack of materials, predict and record the capacity.
