Specifications
1. T slot aluminum alloy table2. NC studio control system
3. ARTCAM and SPINT50 (for circuit board making only
Standard Features:
1. Thick Aluminum alloy stucture,
2. Three axises round orbits, ballscrew,
3. NC Studio control system / MACH 3 control system, and Artcam software,
4. 800w water cooled spindle
5. T slot aluminum alloy table, ( options: Rotray clamp diameter 80mm (200x150x100mm) the rotary clamp size according to customers requirement)
6. endmilling cutters and sharp cutters totally 5pcs, clamps
Application:
1. Advertising industry: cutting/engraving/drilling/photo engraving on wood, MDF, bamboo, plastic, PVC, acrylic, two colors board, metals, stone etc.
2. Manufacturing industry: engrave, cut, drill, photo engraving on copper, iron and aluminum, alloy, steel etc.
3. Furniture making: wood door cutting, wood door artwork engraving, wave boards making, 3d photo engraving, small or large relief works, cylinder materials engraving, 3d photo engraving etc.
4. Artwork industry: Figure engraving, character engraving and cutting, name brand making, small gift cutting, souvenirs making, Carving various decoration letters, figures on small windows, fences, wall, etc.
5. Model making: to cut materials into different shapes for models making.
6. Stamps making industry: Carving on many different materials like rubber, acrylic, cattle horn, plastic, wood and ink storage materials and so on.
Note: There are also some other industries application of cnc router machines, pls confirm with us if you are not sure.
Technical Parameter:
Travel (X/Y/Z) | 300X400X90mm |
Work piece height | less or equal 90mm |
Table type | T slot aluminum alloy table |
Machine Structure | Aluminum alloy |
Motor | Step |
Transmission | Special purpose made lead screw |
Spindle motor | 800W water cooled spindle |
spped | 300-3000 RPM/min |
Precision | 0.1mm |
Repeat positioning precision | <0.03mm |
Max travel speed | 5000mm/min |
Engraving speed | 100-3000mm/min |
Step driver | three axis independent driver |
Driver power supply | 24V 6 A |
Engraving code | G-code /U00/mmg/plt |
Software environment | window98/2000/XP |
volt | AC220 50-60hz |
Machine weight | 28kgs |
Machine dimension | 600*460*380mm |

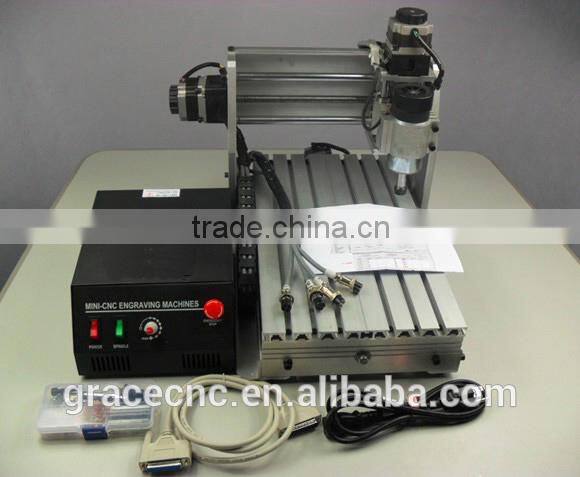

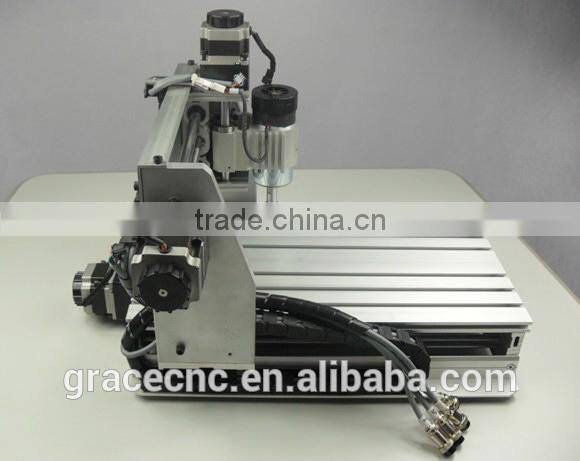

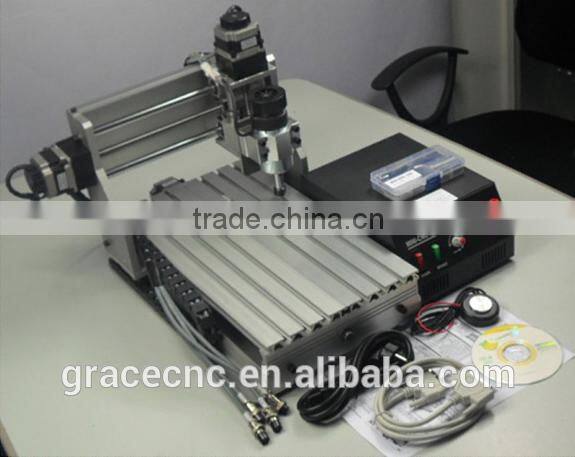

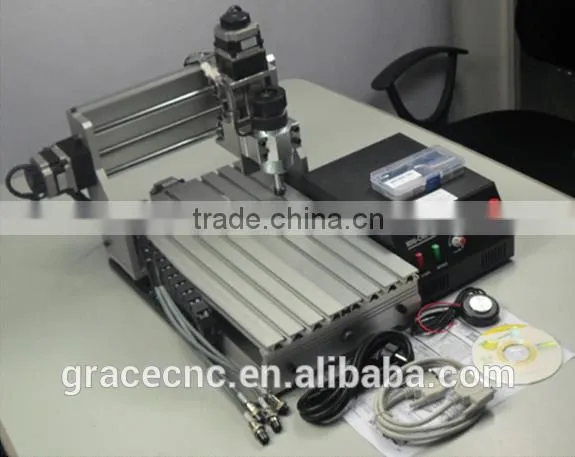

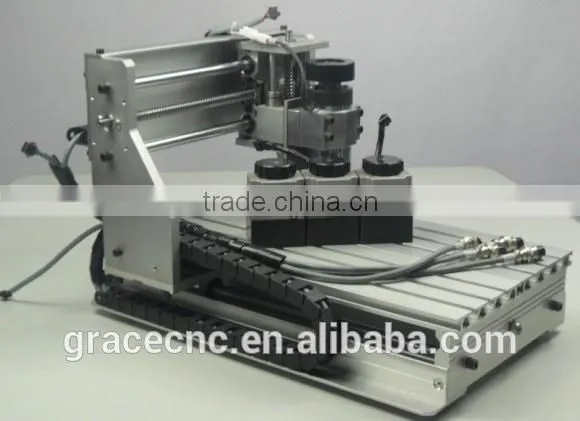

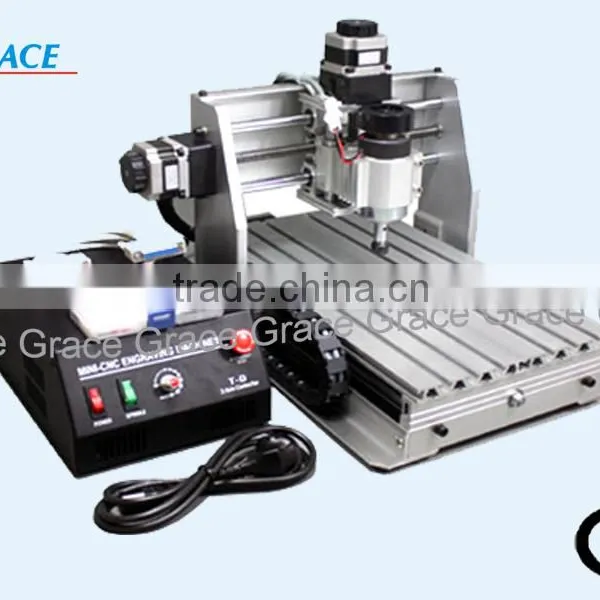

Machine pictures:
Samples:

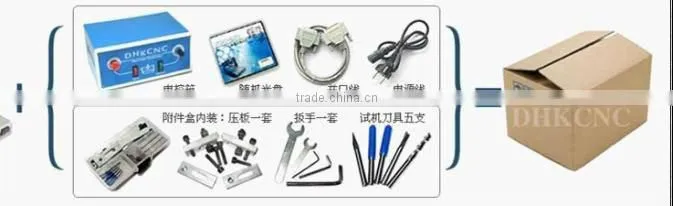

Packing List:
Shipping and payment:
a. BY SEA Delivery: 50% in advance, 50% balance after the buyer getting the copy of B/L.
b. BY AIR Delivery: 100% T/T in advance.
Quality warranty:
1. Machine 1 Year
2. Technical service is whole life time of the machine
After service:
1. To reply your question or solve problem: within 24 hours, whatever online via chatting tools like: MSN, YAHOO MESSENGER, SKYPE etc, by email or by telephone.
2. Machine will offer installation video, operation video, manual.
