Specifications
1)wood machine2)DSP control system
3)(imported bearing) water cooled spindle
4)vacuum table

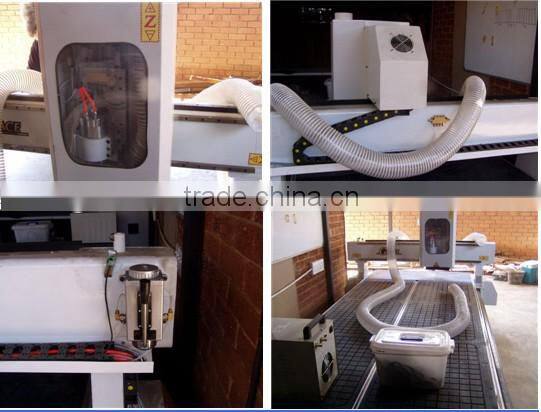

5)dust extraction with 6 zones
professional Woodworking Furniture Carving and Cutting CNC Router G1518
Product features:
Structure: Whole thick steel structure
Working area: 1500x1800x200mm
Spindle Power: 3KW/4.5kw
Spindle type: water cooling type, made in China, 1 year guarantee period, 24000rpm.
Orbits: Taiwan Hiwin brand square orbits

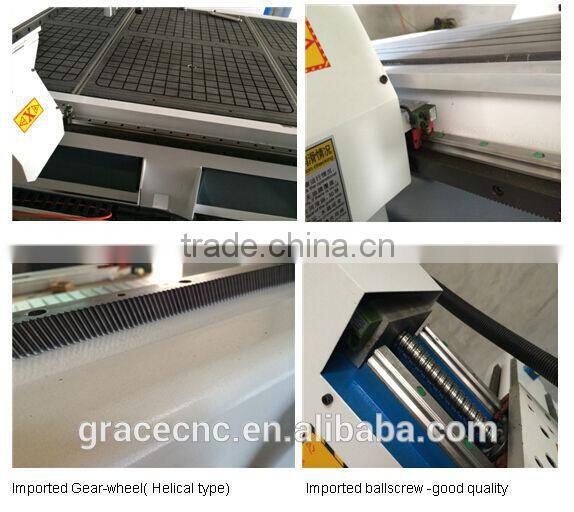

Transmission: Z axis Germany ballscrew, X and Y axises gear rack (with pinion).
Machine control system: Original DSP control system /NC studio control system
Compatible file design software: Corel draw, AutoCAD, ARTCAM etc
Files Support:: G code, like files of: *.u00, * mmg, * plt, *.nc etc.
Mechanical orbits: Taiwan brand orbits, with high precision and long life time.
Motor and driver type: Step motors and step drivers (optional: servo motors and drivers)
Table type: (engraving and cutting) T slot type table or vacuum table.
Spare parts: spare use cutters and collets.
Software: English software with tutorial CD.
Installation manual: CD files
Application
1. Advertising industry: cutting/engraving/drilling/photo engraving on wood, MDF, bamboo, plastic, PVC, acrylic, two colors board, metals, stone etc.
2. Manufacturing industry: engrave, cut, drill, photo engraving on copper, iron and aluminum, alloy, steel etc.
3. Furniture making: wood door cutting, wood door artwork engraving, wave boards making, 3d photo engraving, small or large relief works, cylinder materials engraving, 3d photo engraving etc.
4. Artwork industry: Figure engraving, character engraving and cutting, name brand making, small gift cutting, souvenirs making, Carving various decoration letters, figures on small windows, fences, wall, etc.
5. Model making: to cut materials into different shapes for models making.
6. Stamps making industry: Carving on many different materials like rubber, acrylic, cattle horn, plastic, wood and ink storage materials and so on.
technical parameters
Working area: |
1500x1800x200mm |
Spindle type: |
water cooled spindle / air cooled |
Spindle power |
3/4.5 kw |
Spindle rotating speed |
0-24000rpm |
Power (except spindle power): |
8.87KW (include powers of: motors, drivers, inverters and so on) |
Power supply: |
AC380±10, 50 HZ |
Max moving speed: |
35m/min |
Max. working speed: |
25m/min |
Worktable: |
Vacuum table (optional: T slot table or T slot table +vacuum table) |
Locating precision: |
<0.01mm |
Min shaping character: |
Character:3x3mm,letter:2x2mm |
Operating temperature: |
5°C-40°C |
Working humidity |
30%-75%(without condensed water) |
Working precision: |
±0.05mm |
System resolution: |
±0.001mm |
Control configuration: |
DSP5.0 |
Data transfer interface: |
USB(offline) |
System environment: |
WINDOWS 2000/WINDOWS XP/ windows 7 |
Spindle cooling way: |
Water cooling by water pump (optional: chiller) |
Graphic format supported: |
G code: *.u00, * mmg, * plt, *.nc |
Compatible software |
ARTCAM, UCANCAM and other CAD or CAM softwares…. |
Cutting thickness: |
0-70mm also (depends on different material) |
Z tool censor: |
yes |
Whole machine dimension: |
3250x2050x1900(mm) |
Net weight: |
1650kgs |
Gross weight |
1780kgs |
packing |
Plywood case (veneer wood case for export) |
|
Optional parts
|
1. Air cooled type spindle (China brand or Italian brand) 2. Bigger or smaller power spindles (6kw or 3kw) 3. High-grade cooling system (chiller, it has alarming system) 4. double-head or more heads 5. Cylinder rotary clamp (for cylinder materials working. Like cup, pen, bottles, logs etc) 6. step motors (China brand or Japan brand) 8. Auto tool change system (this system need other systems accordingly, like LNC control system, servo motors etc) 9. other customerized features Note: Above are the main optionals, not all the machines can add above optionals, please |

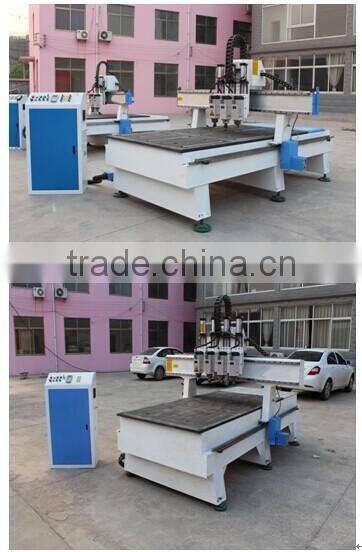

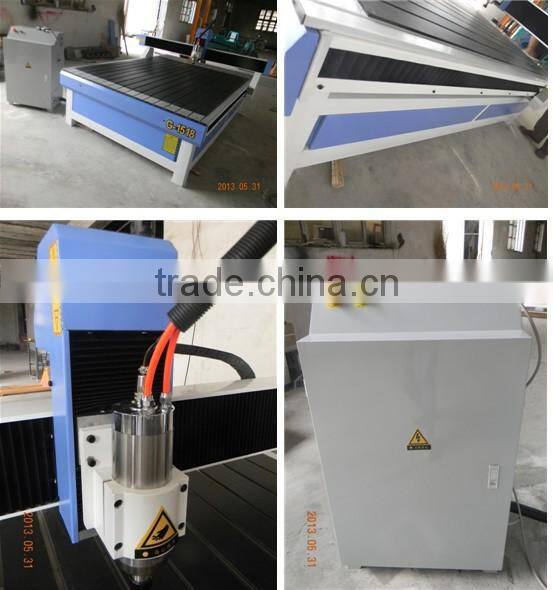

Other Machine Photos
