Product Details
Place of Origin: | Shandong, China | Brand Name: | GRACE | Model Number: | G1224 |
Product Description
G1224 Advertising Router
Standard Features:
1.1260 x 2500 mm (please note: extended bed)
2. All 220 volt application
3. 3 kw motor
4. Gantry 180 mm
5. Nc studio
6. Control unit with zone switches
7. with vacuum prepared table – combination - as per our last studio router
8. diaphragm valves for the control of the zones
9. dust extractor cover and brush
10. square orbits on y axis
11. round orbits on z and x
12. Ballscrew or Acme drive system
13. GHBH004341R7 3kw, 200-240v Air ring pump,
Application:
1. Advertising industry: cutting/engraving/drilling/photo engraving on wood, MDF, bamboo,
plastic, PVC, acrylic, two colors board, metals, stone etc.
2. Manufacturing industry: engrave, cut, drill, photo engraving on copper, iron and aluminum,
alloy, steel etc.
3. Furniture making: wood door cutting, wood door artwork engraving, wave boards making,
3d photo engraving, small or large relief works, cylinder materials engraving, 3d photo engraving etc.
4. Artwork industry: Figure engraving, character engraving and cutting, name brand making, small
gift cutting, souvenirs making, Carving various decoration letters, figures on small windows, fences, wall, etc.
5. Model making: to cut materials into different shapes for models making.
6. Stamps making industry: Carving on many different materials like rubber, acrylic, cattle horn,
plastic, wood and ink storage materials and so on.
Note: There are also some other industries application of cnc router machines, pls confirm with us if you are not sure.
Technical Parameter:
Description | G1224 |
X,Y working area | 1260×2500mm |
Z working area | 150-180mm |
Table Size | 1370×2740mm |
Max. Speed | 15m/min |
Max. working speed | 10m/min |
Max. feeding height | 150-180mm |
Working delicacy | 0.01mm |
Repositioning accuracy | 0.005mm |
Command | G code*.u00*.mmg*.plt |
Surroundings for software | windows98/2000/xp |
Power (spindle is not included) | 1.3KW |
Working voltage | AC220V/50Hz |
Spindle power | 3kw |
Spindle rotating speed | 0-24000rpm/min |
Drive motor | Stepper, Torque |
Packing List:
NO | DEC | QTY | UNIT |
1 | CNC router table | 1 | PC |
2 | DSP control | 1 | PC |
3 | DSP controller data wire (for DSP control type machine) | 1 | PC |
4 | USB wire used for dowloading the file | 1 | PC |
5 | U flash disk (for DSP control type machine) | 1 | PC |
6 | ARTCAM & WENTAI(english version) | 1set each | Set |
7 | guarantee card | 1 | PC |
8 | eligible certificate | 1 | PC |
9 | user manual | 1 | PC |
10 | Tools | 20 | PC |
11 | collets | 2 | PC |
12 | single mouth spanner | 2 | PC |
13 | hexangular spanner | 3 | PC |
14 | tool case | 1 | PC |
15 | water pump –for water cooling spindle | 1 | PC |
16 | Emergency Button | 1 | PC |
17 | Start Button | 1 | PC |
18 | Limit switch | 2 | PC |
19 | Lines | some | M |
Quality warranty:
1.The whole machine is 1 year guarantee period.
2.Technical service is whole life time of the machine
After service:
1. To reply your question or solve problem: within 24 hours, whatever online via chatting tools
like: MSN, YAHOO MESSENGER, SKYPE etc, by email or by telephone.
2. Machine will offer installation vedio, operation vedio, manual.
Delivery time:
10-15 days after getting prepayment, usually 7-10days.
Payment term:
T/T 50% in advance, the balance against before shippment.

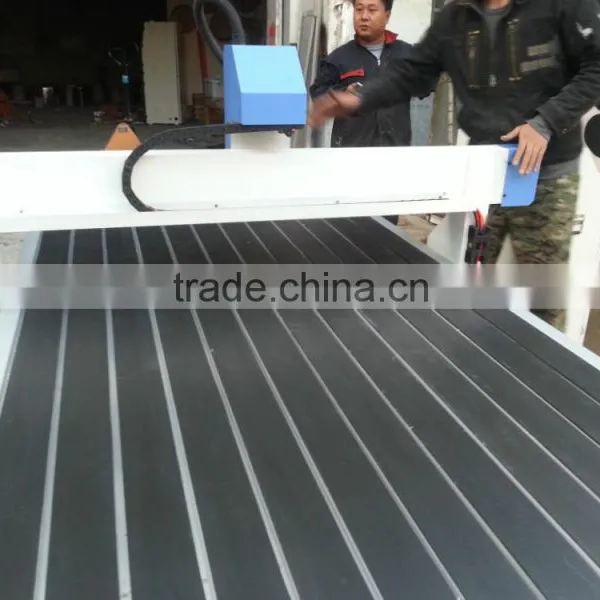

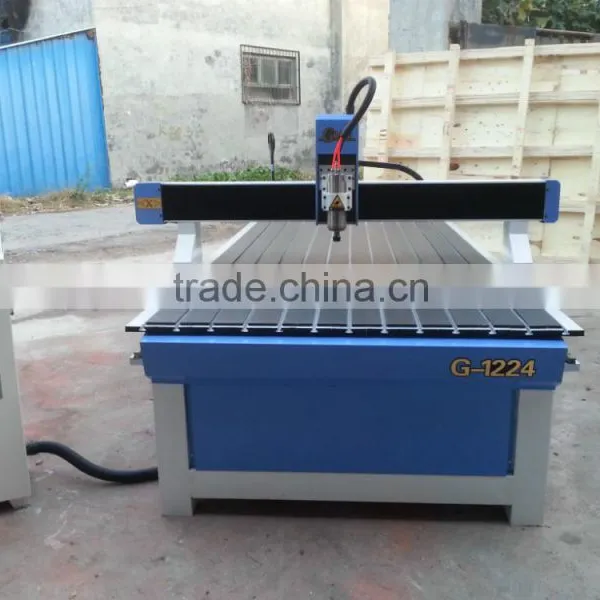

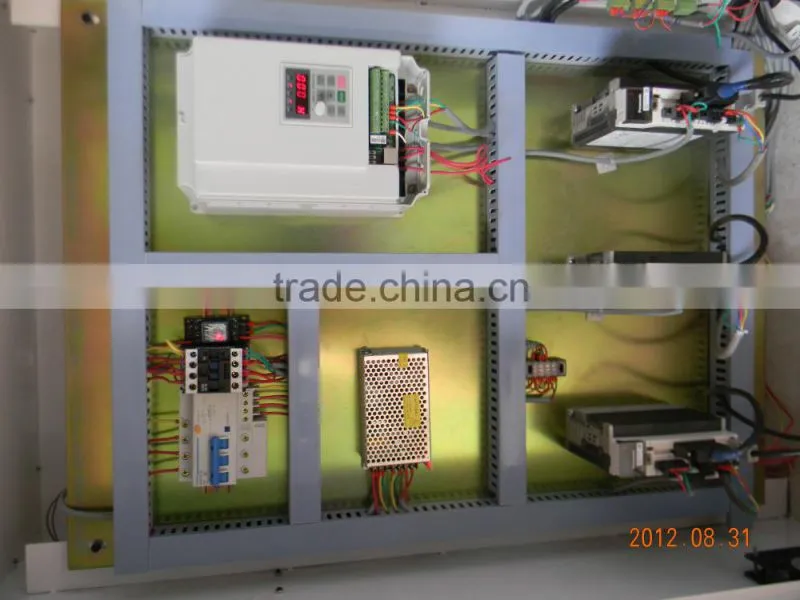

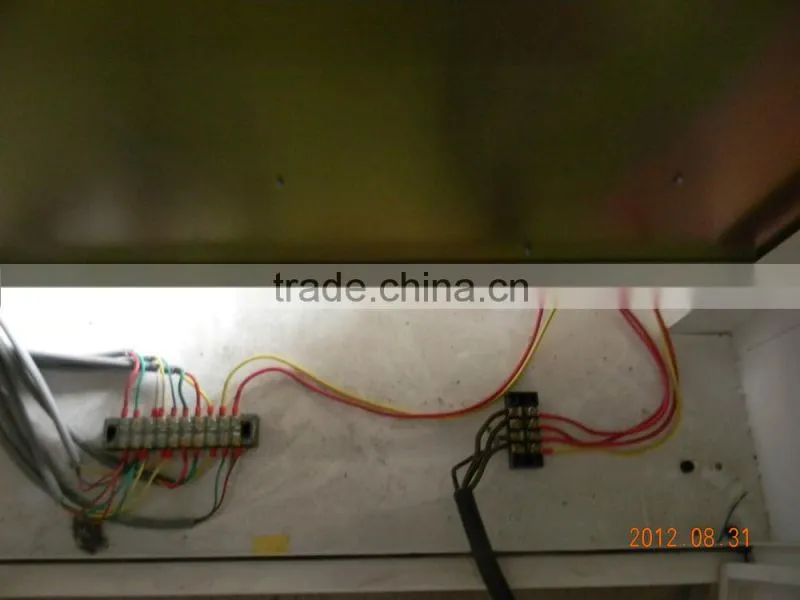

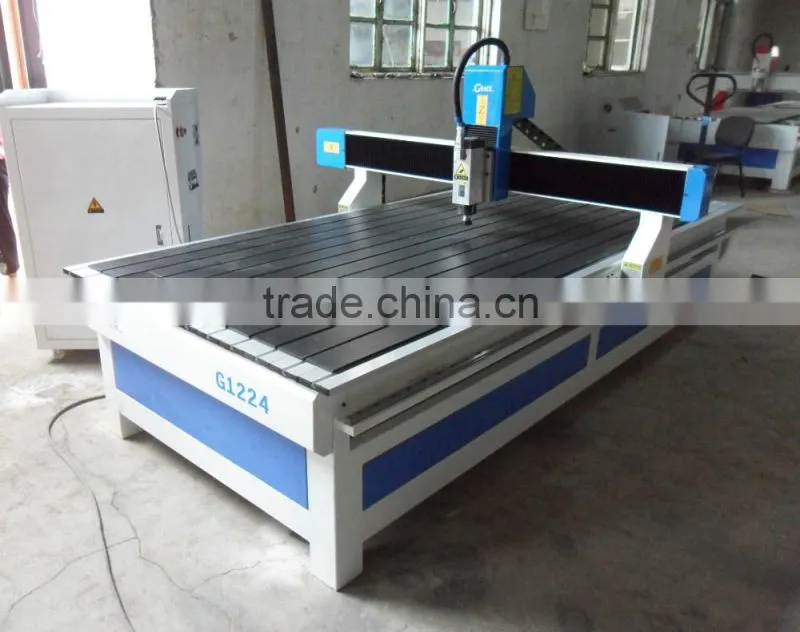

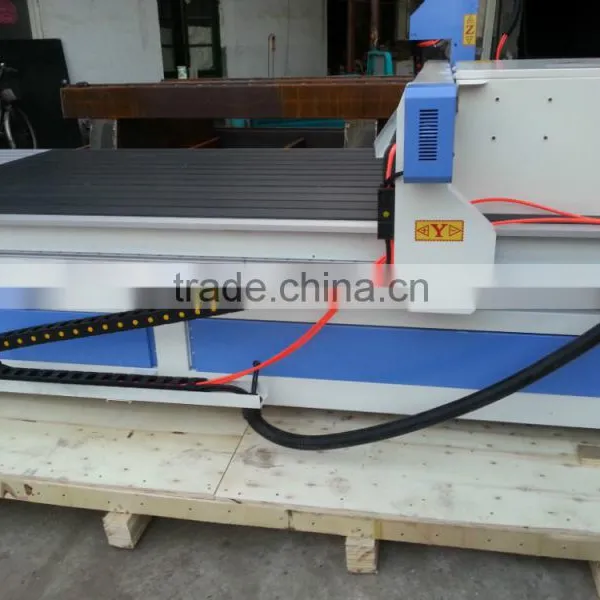

Machine photos:
Samples:
Acrylic cutting and hole making Namebrand making (metal or two colors boards)

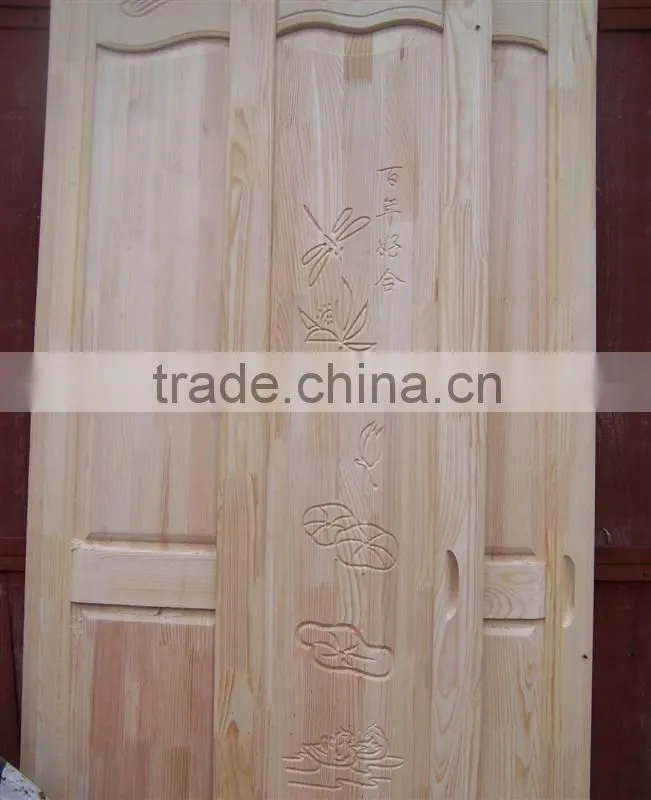

Hard wood door cutting and engraving
Certificate:
Customer feedback:
Contact us:
