Advertising Router

Advertising Router thumbnail-1
Advertising Router thumbnail-2
Advertising Router thumbnail-3
Advertising Router thumbnail-4
Advertising Router photo-1
Advertising Router photo-2
Advertising Router photo-3
Advertising Router photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
GRACE
Model Number:
G1224
Contact Supplier Request Quote Chat Now
Jinan Grace Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name GRACE
Model Number G1224



G1224 Advertising Router





Standard Features:



1.1260 x 2500 mm (please note: extended bed)



2. All 220 volt application



3. 3 kw motor



4. Gantry 180 mm



5. Nc studio



6. Control unit with zone switches



7. with vacuum prepared table – combination -  as per our last studio router



8.  diaphragm valves for the control of the zones



9. dust extractor cover and brush



10. square orbits on y axis



11. round orbits on z and x



12. Ballscrew or Acme drive system



13. GHBH004341R7 3kw, 200-240v Air ring pump,





Application:
1. Advertising industry: cutting/engraving/drilling/photo engraving on wood, MDF, bamboo,

plastic, PVC, acrylic, two colors board, metals, stone etc.



2. Manufacturing industry: engrave, cut, drill, photo engraving on copper, iron and aluminum,

alloy, steel etc.



3. Furniture making: wood door cutting, wood door artwork engraving, wave boards making,

3d photo engraving, small or large relief works, cylinder materials engraving, 3d photo engraving etc.



4. Artwork industry: Figure engraving, character engraving and cutting, name brand making, small

 gift cutting, souvenirs making, Carving various decoration letters, figures on small windows, fences, wall, etc.



5. Model making: to cut materials into different shapes for models making.



6. Stamps making industry: Carving on many different materials like rubber, acrylic, cattle horn,

 plastic, wood and ink storage materials and so on.



Note: There are also some other industries application of cnc router machines, pls confirm with us if you are not sure.







Technical Parameter:

Description

G1224

X,Y working area

1260×2500mm

Z working area

150-180mm

Table Size

1370×2740mm

Max. Speed

15m/min

Max. working speed

10m/min

Max. feeding height

150-180mm

Working delicacy

0.01mm

Repositioning accuracy

0.005mm

Command

G code*.u00*.mmg*.plt

Surroundings for software

windows98/2000/xp

Power (spindle is not included)

1.3KW

Working voltage

AC220V/50Hz

Spindle power

3kw

Spindle rotating speed

0-24000rpm/min

Drive motor

Stepper, Torque

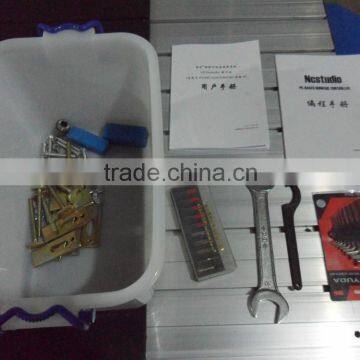

Packing List:



NO

DEC

QTY

UNIT

1

CNC router table

1

PC

2

DSP control

1

PC

3

DSP controller data wire   (for DSP control type machine)

1

PC

4

USB wire used for dowloading the file

1

PC

5

U flash disk           (for DSP control type machine)

1

PC

6

ARTCAM & WENTAI(english version)

1set each

Set

7

guarantee card

1

PC

8

eligible certificate

1

PC

9

user manual

1

PC

10

Tools

20

PC

11

collets

2

PC

12

single mouth spanner

2

PC

13

hexangular spanner

3

PC

14

tool case

1

PC

15

water pump –for water cooling spindle

1

PC

16

Emergency Button

1

PC

17

Start Button

1

PC

18

Limit switch

2

PC

19

Lines

some

M





Quality warranty:

1.The whole machine is 1 year guarantee period.

2.Technical service is whole life time of the machine



After service:

1. To reply your question or solve problem:  within 24 hours, whatever online via chatting tools

like: MSN, YAHOO MESSENGER, SKYPE etc, by email or by telephone.

2. Machine will offer installation vedio, operation vedio, manual.



 Delivery time:

10-15 days after getting prepayment, usually 7-10days.



Payment term:

T/T 50% in advance, the balance against before shippment.

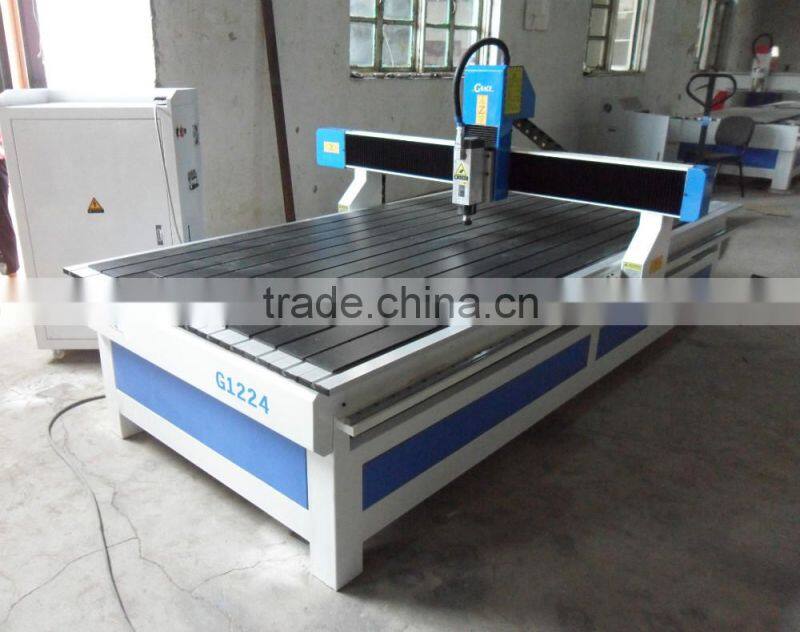

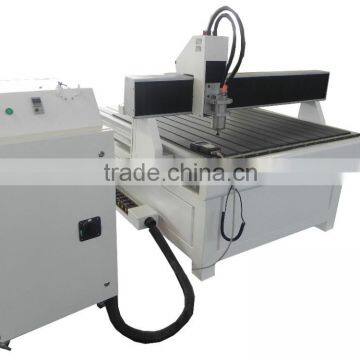

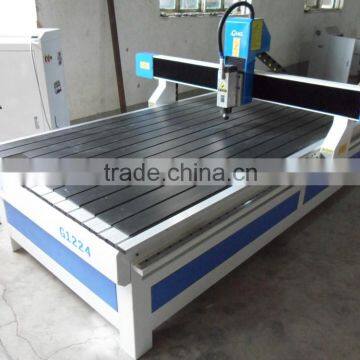

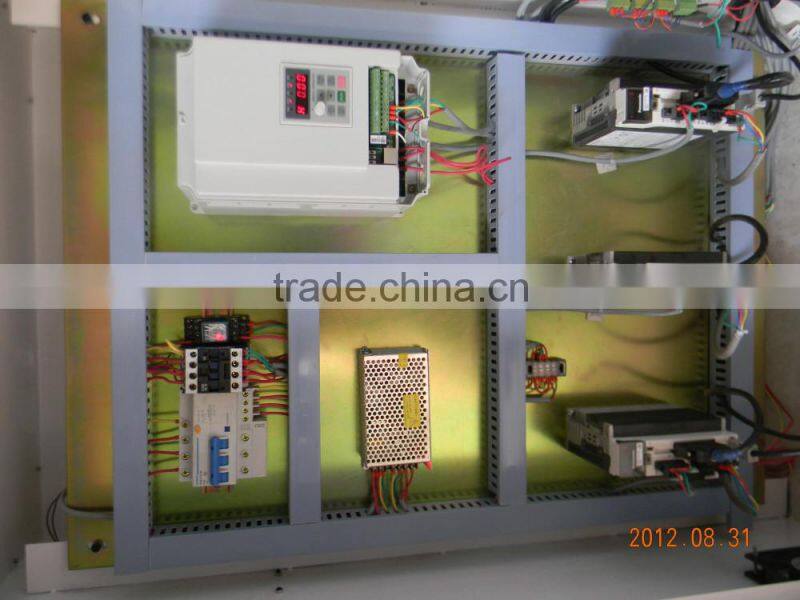

Machine photos:



Advertising Router



Advertising Router



Advertising Router



Samples:



Advertising Router      Advertising Router

 Acrylic cutting and hole making                     Namebrand making (metal or two colors boards)



Advertising Router

                           Hard wood door cutting and engraving

Certificate:



Advertising Router



Advertising Router



Customer feedback:



Advertising Router





Advertising Router



Contact us:

Sales: MAQI

Tel: +86-531-88682639

Fax: +86-531-88682639

Skpe ID:grace005



Web:
