Help Center4 Axis Cnc Router 1325
Related Products
Specifications
1. 4.5kw water cooled spindle2. DSP control system
3. CAM software
4. Taiwan HIWIN orbit
5. CE certificate
Main Standard Features:
1. Normal type Thick Whole Steel structure,
2. Taiwan Hiwin imported square orbits,
3. Germany ballscrew for z axis,
4. gear-wheel for x and y axises,
5. U flash disk interface DSP control system,
6. UCANCAM Software (original version)
7. 4.5KW water cooled spindle,
8. vacuum table,
9. water cooled vacuum pump,
10. dust extraction system with 6 zones separately control zones,
11. famous brand electronic parts.
12. large rotary clamp
Parameters
Working area: |
1200x3000x200mm |
Spindle type: |
water cooled spindle |
Spindle power |
4.5kw |
Spindle rotating speed |
0-24000rpm |
Power (except spindle power): |
8.87KW (include powers of: motors, drivers, inverters and so on) |
Power supply: |
AC380±10, 50 HZ |
Max moving speed: |
35m/min |
Max. working speed: |
25m/min |
Worktable: |
T slot table |
Locating precision: |
<0.01mm |
Min shaping character: |
Character:3x3mm,letter:2x2mm |
Operating temperature: |
5°C-40°C |
Working humidity |
30%-75%(without condensed water) |
Working precision: |
±0.05mm |
System resolution: |
±0.001mm |
Control configuration: |
DSP5.0 |
Data transfer interface: |
USB(offline) |
System environment: |
WINDOWS 2000/WINDOWS XP/ windows 7 |
Spindle cooling way: |
air cooled |
Graphic format supported: |
G code: *.u00, * mmg, * plt, *.nc |
Compatible software |
ARTCAM, UCANCAM and other CAD or CAM softwares…. |
Cutting thickness: |
0-70mm also (depends on different material) |
Z tool censor: |
yes |
Whole machine dimension: |
3250x2050x1900(mm) |
Net weight: |
1650kgs |
Gross weight |
1780kgs |
packing |
Plywood case (veneer wood case for export) |
Optional parts |
1.Air cooled type spindle 2. Bigger or smaller power spindles (6kw or 3kw) 3. High-grade cooling system (chiller, it has alarming system) 4. double-head or more heads 5. Cylinder rotary clamp (for cylinder materials working. Like cup, pen, bottles, logs etc) 6. servo motors (China brand or Japan brand) 8. Auto tool change system (this system need other systems accordingly, like LNC control system, servo motors etc) 9. NCstudio control system 10. other customerized features Note: Above are the main optionals, not all the machines can add above optionals, please contact us, we will give you suggestions, thanks. |
Machine photos:
Other type rotary clamp:
Samples:
acrylic engraving engraving:
Stone engraving:

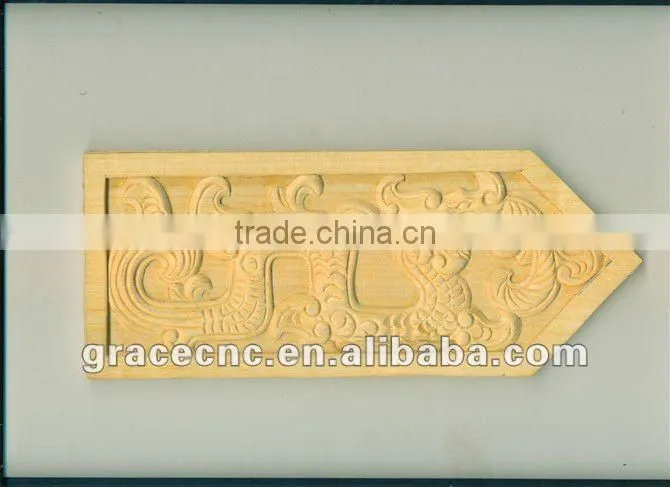

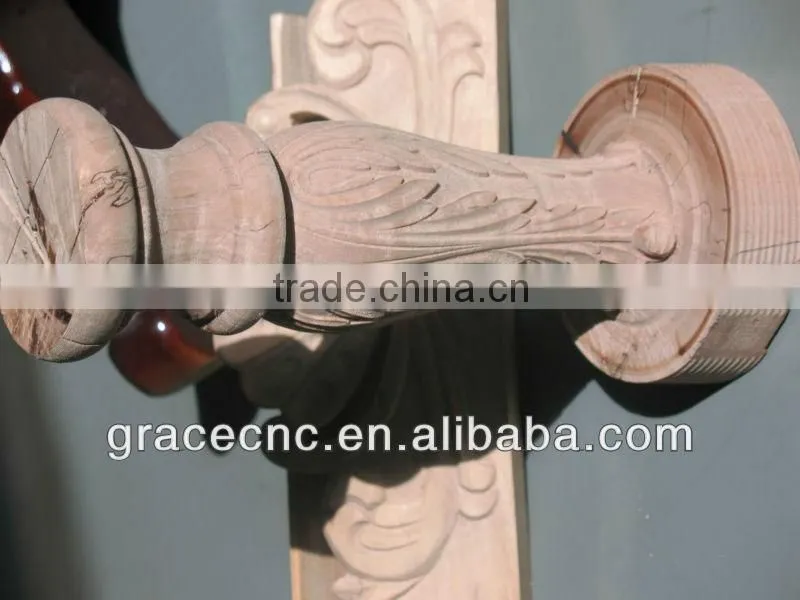

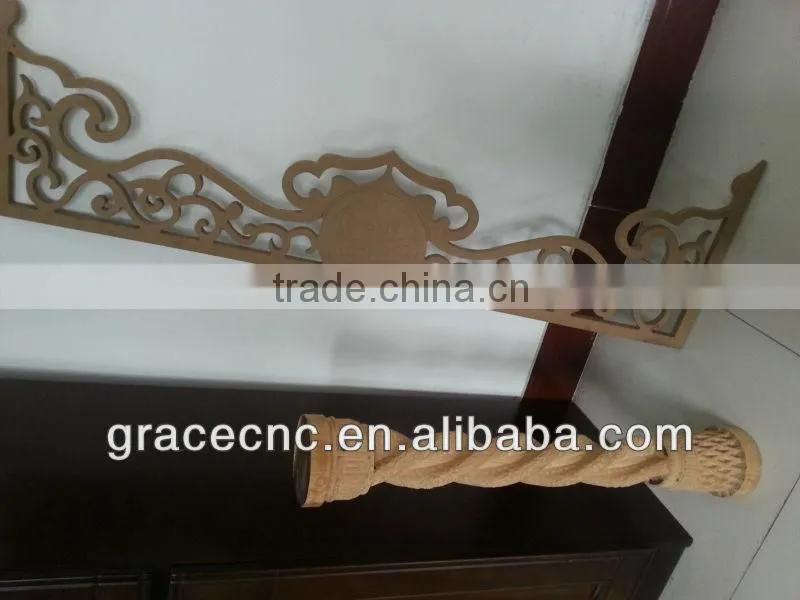

wood engraving and cutting

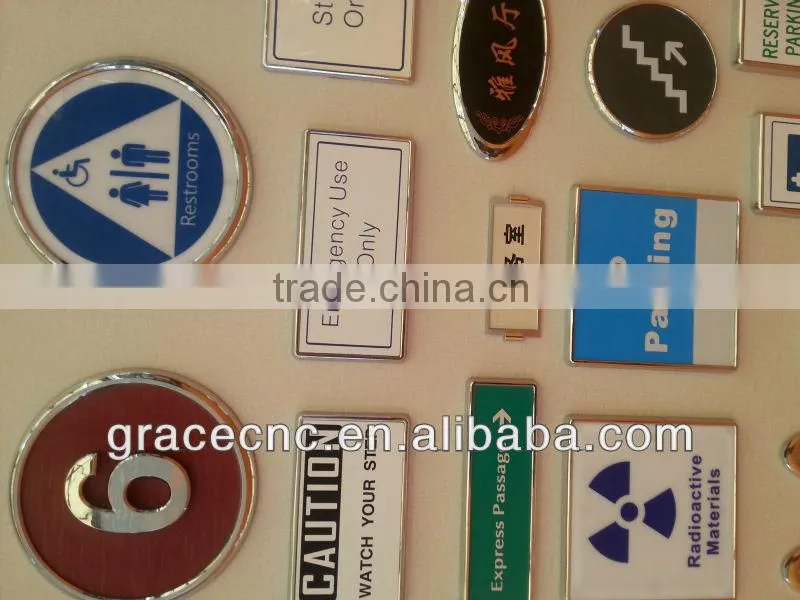

Signs making:

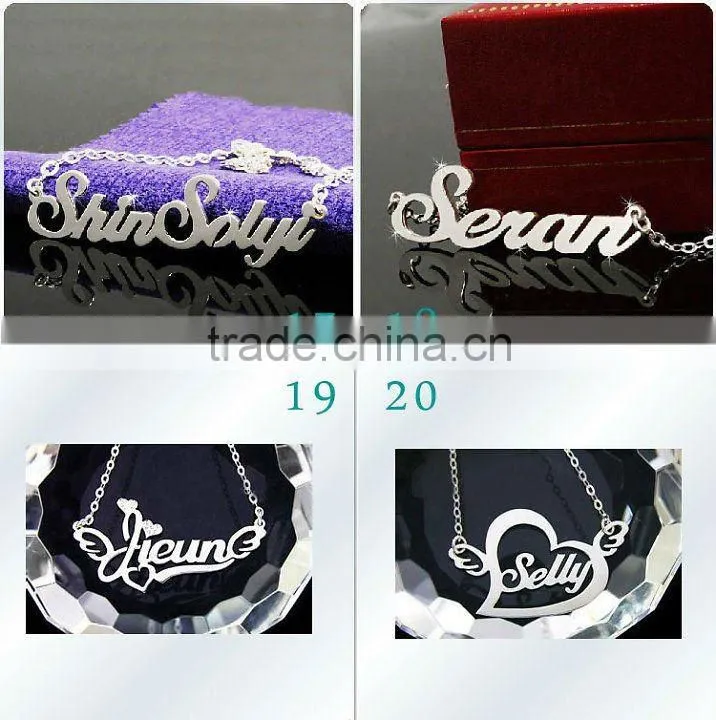

sliver engraving
Mould engraving:
Shipping terms:
By sea
Payment terms:
1. T/T(Telegraphic transfer)
2. L/C at sight
3. ESCROW
4. Western Union
5. If you choose shipping by sea, pay 50% in advance, the balance against copy of B/L.
If you choose shipping by air, pay 100% in advance.
Advantage:
1.Competitive prices
2.Good reputation, Attentive service.
3.Excellent quality
4. Fast delivery
If you want to know other materials samples, please feel free to contact me. we will send more details to you soon.
