4 Axis Cnc Wood Machine

4 Axis Cnc Wood Machine thumbnail-1
4 Axis Cnc Wood Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Jinan Grace Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name GRACE
Model Number G1325
Voltage 220V
Power(W) 4.5KW
Certification CE
Warranty 1 year

Specifications

1. 4.5kw water cooled spindle
2. DSP control system
3. CAM software
4. CE certificate
5. with rotary clamp

Main Standard Features:

1. Normal type Thick Whole Steel structure,

2. Taiwan Hiwin imported square orbits,

3. Germany ballscrew for z axis,

4. gear-wheel for x and y axises,

5. U flash disk interface DSP control system,

6. UCANCAM Software (original version) and ARTCAM Software (copy version),

7. 4.5KW water cooled spindle (power optional),

8. vacuum table,

9. water cooled vacuum pump,

10. dust extraction system with 6 zones separately control zones,



Parameters



Working area:

1300x2500x200mm

Spindle type:

water cooled spindle

Spindle power

4.5kw

Spindle rotating speed

0-24000rpm

Power (except spindle power):

8.87KW (include powers of: motors, drivers, inverters and so on)

Power supply:

AC380±10,  50 HZ

Max moving speed:

35m/min

Max. working speed:

25m/min

Worktable:

T slot table

Locating precision:

<0.01mm

Min shaping character:

Character:3x3mm,letter:2x2mm

Operating temperature:

5°C-40°C

Working humidity

30%-75%(without condensed water)

Working precision:

±0.05mm

System resolution:

±0.001mm

Control configuration:

DSP5.0

Data transfer interface:

USB(offline)

System environment:

WINDOWS 2000/WINDOWS XP/ windows 7

Spindle cooling way:

air cooled

Graphic format supported:

G code: *.u00, * mmg, * plt, *.nc

Compatible software

ARTCAM, UCANCAM and other CAD or CAM softwares….

Cutting thickness:

0-70mm also (depends on different material)

Z tool censor:

yes

Whole machine dimension:

3250x2050x1900(mm)

Net weight:

1650kgs

Gross weight

1780kgs

packing

Plywood case (veneer wood case for export)

Optional parts

1.Air cooled type spindle

2. Bigger or smaller power spindles (6kw or 3kw)

3. High-grade cooling system (chiller, it has alarming system)

4. double-head or more heads

5. Cylinder rotary clamp (for cylinder materials working. Like cup, pen, bottles, logs etc)

6. servo motors (China brand or Japan brand)

8. Auto tool change system (this system need other systems accordingly, like LNC control system, servo motors etc)

9. NCstudio control system

10. other customerized features

Note: Above are the main optionals, not all the machines can add above optionals, please contact us, we will give you suggestions, thanks.



Machine photos:



4 axis cnc wood machine

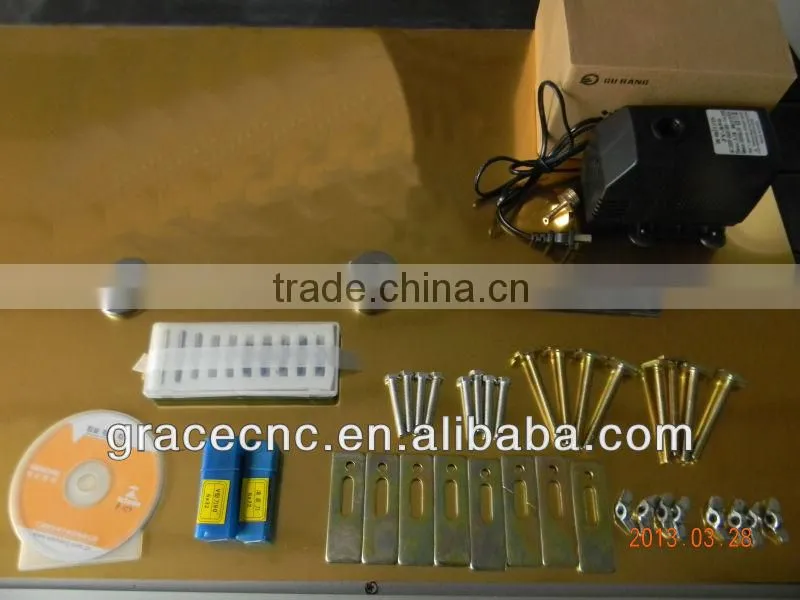

Tools:

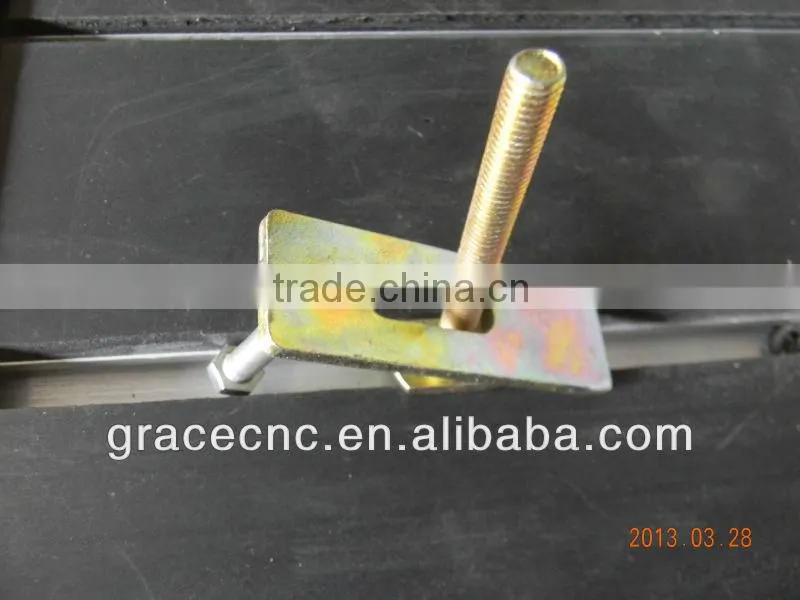

Clamps:

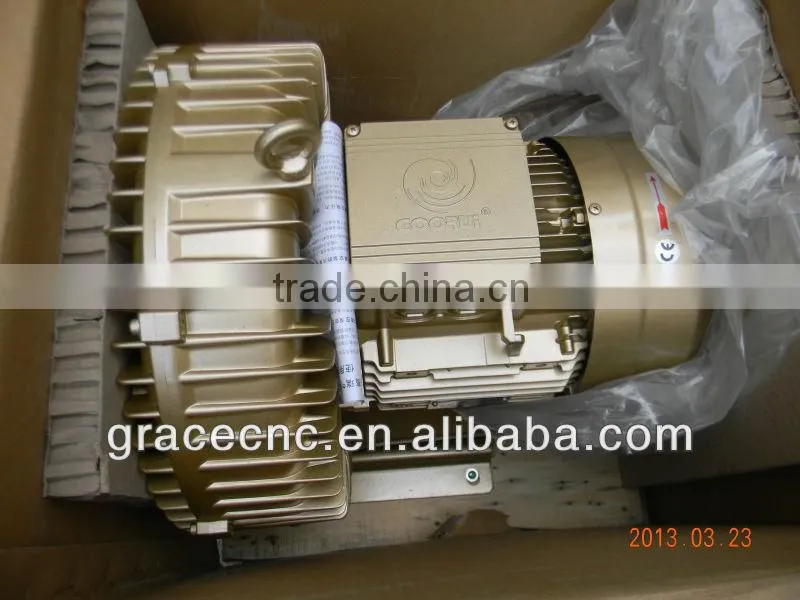

Air blower:

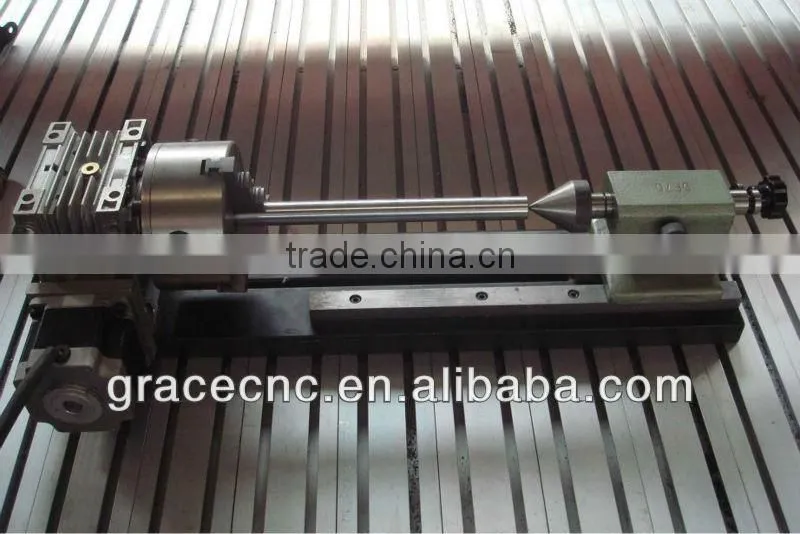

Rotary clamp:



size of machine :



Machine Type

Common working size

Woodworking CNC router

G1325( 1300*2500*200mm)

G1530( 1500*3000*200mm)



G2030( 2000*3000*200mm)

G2040( 2000*4000*200mm)



G1325 auto tool changer,

G1530 auto tool changer



Advertising CNC router

G1212( 1200*1200*150mm)

G1218( 1200*1800*180mm)



G1224( 1200*2400*180mm)

G1325( 1300*2500*200mm)



Heavy Stone CNC router

G9015( 900*1500*250mm)

G1218( 1200*1800*250mm)

G1224( 1200*2400*250mm)

Light stone CNC router

G6060( 600*600*180mm)

G6090( 600*900*180mm)



G1313( 1300*1300*180mm)

G1315( 1300*1500*180mm)



G1318( 1300*1800*180mm)

G1324( 1300*2400*180mm)



Min CNC router

G3020( 300*200*50mm)

G3040( 300*400*50mm)

G6040( 600*400*90mm)



We also can make other sizes machine according to customer requirements.



Shipping terms:

1. By  sea,

2. By air express: such as TNT, DHL, EMS, FedEx and so on.  around 5days to reach.



Payment terms:

1. T/T(Telegraphic transfer)

2. L/C at sight

3. ESCROW

4. Western Union

5. If you choose shipping by sea, pay 50% in advance, the balance against copy of B/L.

    If you choose shipping by air, pay 100% in advance.



Advantage:

1.Competitive prices

2.Good reputation, Attentive service.

3.Excellent quality

4. Fast delivery

5. High quality even in small details: like hard limit, soft limit,ballscrew, table, structure etc.







Samples:





acrylic  engraving engraving:









  wood engraving and cutting







4 axis cnc wood machine



4 axis cnc wood machine





sliver engraving









Mould engraving:















If you want to know other materials samples, please feel free to contact us. we will send more details to you soon.
