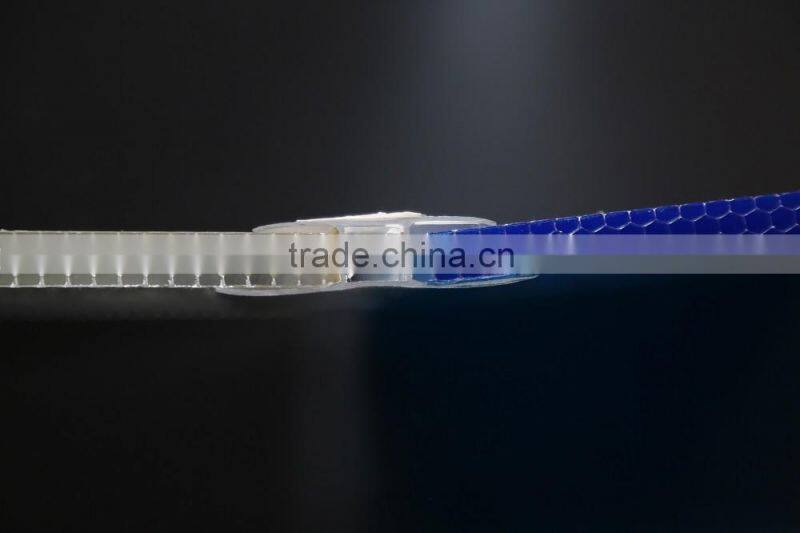

Help CenterXINHAI Honeycomb U-shaped Lock Polycarbonate Sheet
Related Products
-
Four Wall Polycarbonate Hollow pc Sun Sheet as Roofing/rooflight/decorativeNegotiableMOQ: 1 Ton -
Environmental Protection Three Layers pc Sheet; Four Layers Polycarbonate;four Wall Polycarbonate Sheet;NegotiableMOQ: 1 Ton
-
8-20mm With UV Protection Four Wall Yellow Polycarbonate Sheet Sun SheetsNegotiableMOQ: 1 Ton
-
3mm Plastic pc Solid Board Assemble Awning Window and Door Canopy for PatioUS$ 22 - 36MOQ: 100 Sets
-
XINHAI Polycarbonate U Lock Sheet(8mm,10mm,16mm),plastic Roofing Sheet, Roofing PanelUS$ 1.45 - 4.12MOQ: 1 Square Meter
Brief Introduction:
A. Product Range
1). Twin-walls polycarbonate sheet thickness: 4, 5, 6, 8, 10mm. Width: 2100mm.
2). Triple-walls polycarbonate sheet thickness: 8, 10, 12, 16mm. Width: 2100mm.
3). Four-walls polycarbonate sheet thickness: 6, 8, 10, 12, 16mm. Width: 2100mm.

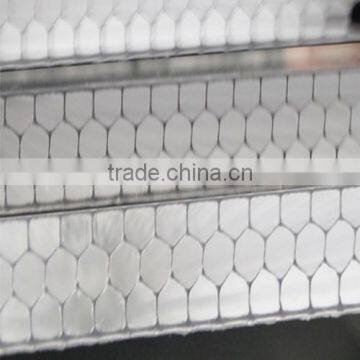

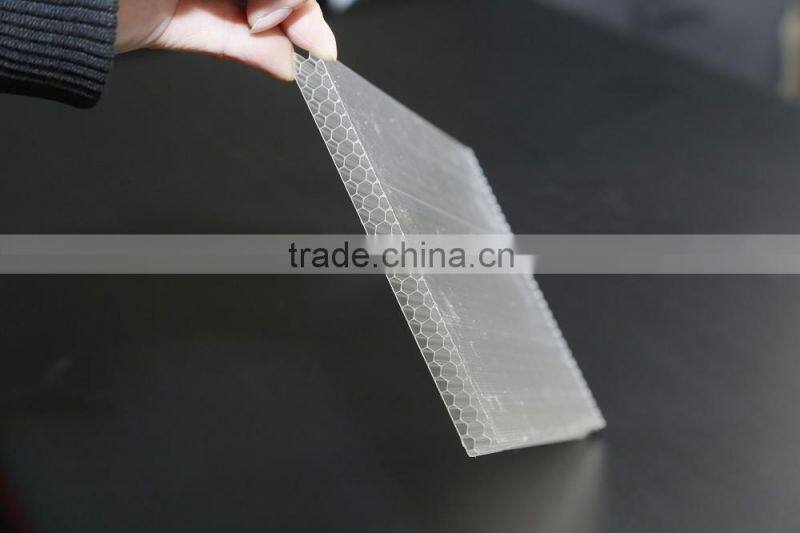

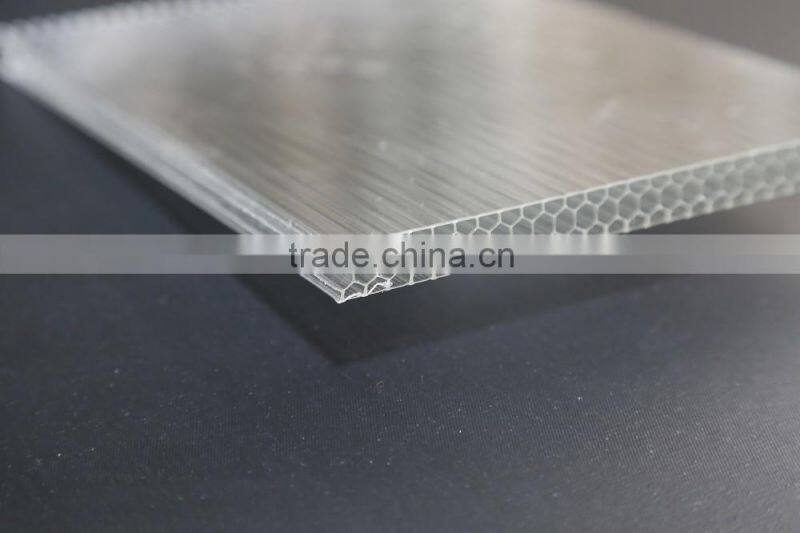

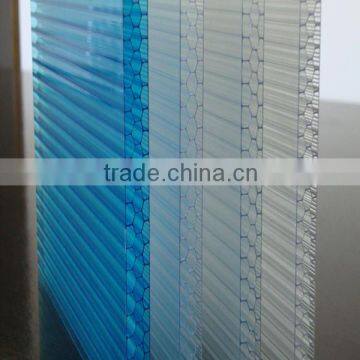

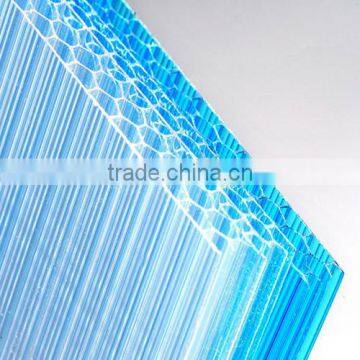

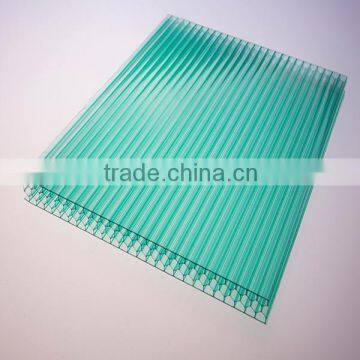

4). Honeycomb polycarbonate sheet thickness: 8, 10, 12mm. Width: 2100mm.
5). Polycarbonate roofing system[Four Layer Rectangule & Honeycomb Structure] thickness: 8, 10, 12mm. Width: 600mm.
6). Solid polycarbonate sheet [Compact] thickness: 0.9-8.0mm.
Width: 1220, 1560, 1820, 2100mm, Usually 1220x2440mm, 2050mmx3000mm
7). Corrugated polycarbonate sheet [Roma & Greca & Trimdek & Minwave] thickness: 0.8-2.5mm. Width is different.
B. Length: No limit(Recommend 5800, 6000, 11800, 12000mm to suit 20' container & 40' container)
C. Color: clear/transparent, lake blue, green, blue, opal, white, brown/bronze, silvery gray, red, yellow, etc.
Standard Products and Dimensions
| Thickness(mm) | Weight(kg/m2) |
Mini-bending radius(mm) |
Transparency(%) | K value(W/M2·k) |
| 6 | 1.5 | 1800 | 59 | 2.96 |
| 8 | 1.7 | 2400 | 58 | 2.58 |
| 10 | 2.0 | 3000 | 57 | 2.16 |
| 12 | 2.2 | 3600 | 56 | 1.98 |
| 14 | 2.4 | 4200 | 55 | 1.74 |
Tolerances: Thickness±5%, Length±3mm, Width±3mm
Technical Features
U.V.rays protection |
50 micron |
Test Method |
Temperature range |
-40℃~120℃ |
|
Insulating values |
3.1~3.8W/m² K |
GB/T 8484-1987 |
Sound insulation |
14~19dB |
GB/T 8485-1987 |
Linear thermal expansion |
0.067mm/m℃ |
GBT8484-2002 |
Flame retardant |
Bs1¸d0¸t0 |
GBT8624-2006 |
Advantages
ENERGY SAVING
Standardized procedures are used in the building and construction industry to determine the relative energy efficiency of most building products. Insulating values are typically stated in terms of U-value or R-value in the U.S.A., and K-value (the metric equivalent) everywhere else in the world. Where U-factor is concerned, a lower number indicates better energy efficiency.
Insulating Values
Product |
Structure |
Thickness |
U-Value |
Test Method |
|
(mm) |
(in.) |
(W/m² K) |
|||
Twin Wall |
2-R |
4 |
5/32 |
3.8 |
|
5 |
3/16 |
3.6 |
|
||
6 |
1/4 |
3.5 |
GB/T 8484-1987 |
||
8 |
5/16 |
3.3 |
|
||
10 |
3/8 |
3.1 |
|
||
Note: U-Value – The lower the number, the better insulator
LIGHTWEIGHT
1/6 the weight of glass and 1/3 the weight of acrylic.As the sheet weight is very low, support structures need not be as
heavy as in the case of traditional materials.This in turn offers savings in structure and installation costs.
LIGHT TRANSMISSION
Light transmission levels in excess of 80% can be achieved with clear and will be maintained throughout the life of the sheet.
Flexible and easy to install
Bends easily into arches. POLIBAY sheets may be cold bent or curved up to their minimum permitted radius, using
polycarbonate’s natural tolerance for cold forming with no need for thermal processing. Curving POLIBAY sheet
beyond this minimum permitted radius induces undue stresses and strains in the glazing sheet, causing premature failure and will void the warranty.
Arching Radius
Structure |
Thickness |
Minimal Cold Bending Radius |
|||
(mm) |
(in.) |
(mm) |
(feet) |
(inch) |
|
2-R |
4 |
5/32 |
700 |
2.30 |
28 |
2-R |
5 |
3/16 |
875 |
2.80 |
34 |
2-R |
6 |
1/4 |
1050 |
3.40 |
41 |
2-R |
8 |
5/16 |
1400 |
4.60 |
55 |
2-R |
10 |
3/8 |
1750 |
5.70 |
69 |
FIRE RESISTANCE
The fire performance of POLIBAY has been independently tested and certified up to Class B1 surface spread of flame when tested to GBT8624-2006, That is, at very high temperatures, the material would melt but flames would not spread.
10 YEAR WARRANTY
Refer to the POLIBAY warranty document for full details of the 10 year warranty.
Packaging |
Both sides with PE film,the end with paper tape,logo on the pe film.Other package are available based on customer's requirment |
|||
Delivery |
within 7-10 working days once we received the deposit. |
|||
Payment |
L/C, T/T, Western Union,Paypal,Cash. |
|||
|
Capacity for 20'container
|
2.1m*5.8m*4mm |
550sheet |
||
2.1m*5.8m*6mm |
370sheet |
|||
2.1m*5.8m*8mm |
285sheet |
|||
2.1m*5.8m*10mm |
230sheet |
|||
2.1m*5.8m*12mm |
190sheet |
|||
|
Capacity for 40'container
|
2.1m*5.8m*4mm |
1100sheet |
2.1m*11.8m*4mm |
550sheet |
2.1m*5.8m*6mm |
740sheet |
2.1m*11.8m*6mm |
380sheet |
|
2.1m*5.8m*8mm |
570sheet |
2.1m*11.8m*8mm |
285sheet |
|
2.1m*5.8m*10mm |
460sheet |
2.1m*11.8m*10mm |
230sheet |
|
2.1m*5.8m*12mm |
380sheet |
2.1m*11.8m*12mm |
190sheet |
|
|
Capacity for 40'HQ container
|
2.1m*5.8m*4mm |
1270sheet |
2.1m*11.8m*4mm |
635sheet |
2.1m*5.8m*6mm |
870sheet |
2.1m*11.8m*6mm |
435sheet |
|
2.1m*5.8m*8mm |
660sheet |
2.1m*11.8m*8mm |
330sheet |
|
2.1m*5.8m*10mm |
530sheet |
2.1m*11.8m*10mm |
265sheet |
|
2.1m*5.8m*12mm |
440sheet |
2.1m*11.8m*12mm |
220sheet |
|

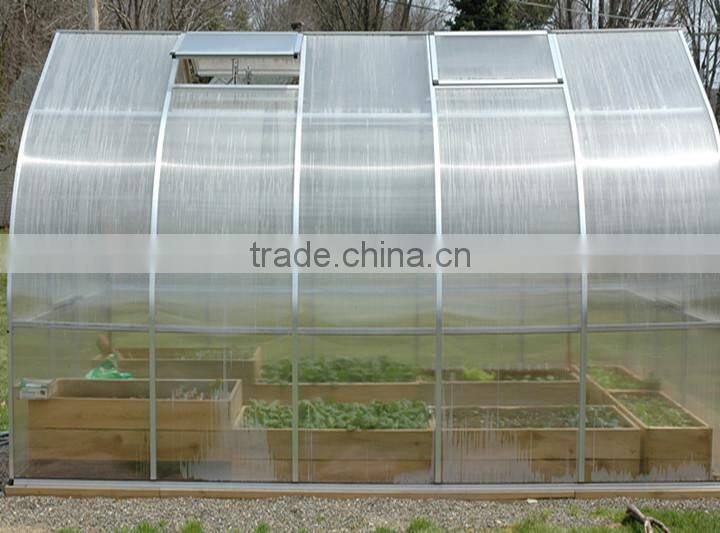

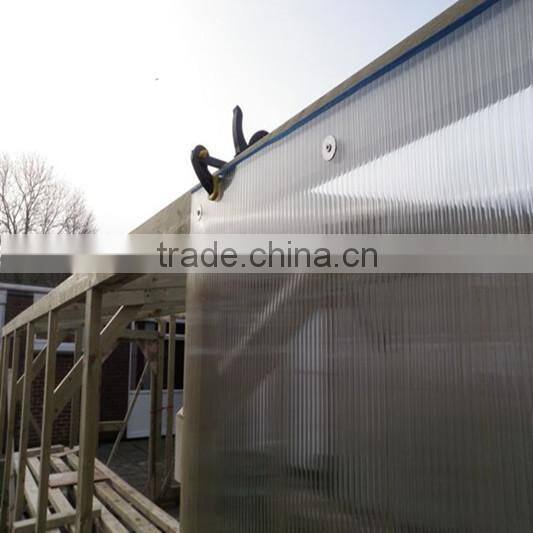

Application

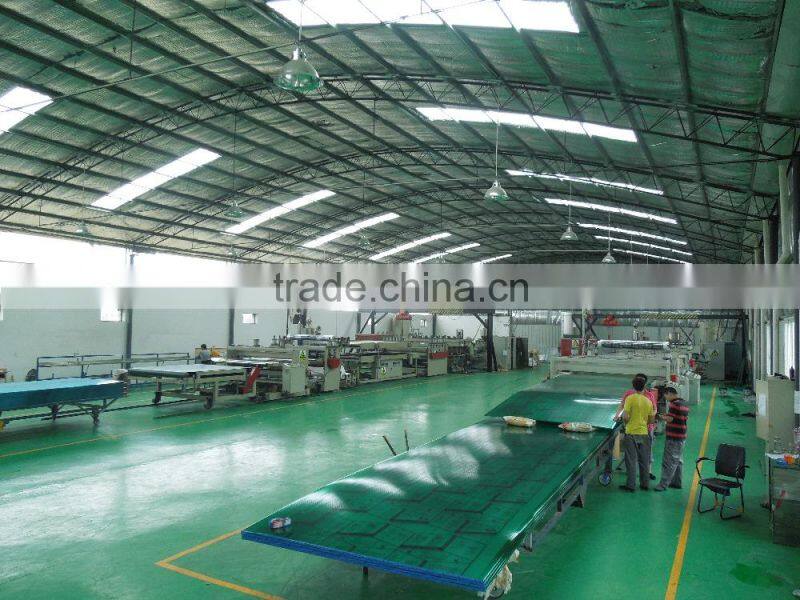

XINHAI Factory Show

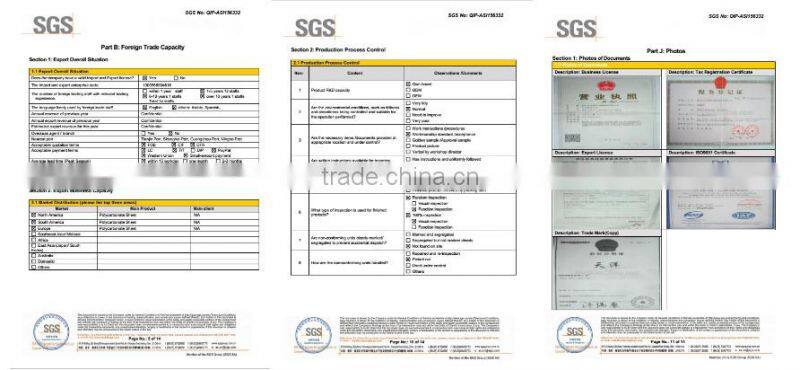

Certification
