UV protection lightweight roofing materials polycarbonate hollow sheet balcony cover sheet
1.double wall plastic sheet, twin wall plastic sheet
2.low cost, competitive price, pls contact us for the latest price.
3.origin: Baoding, China
4.ten years warranty
5.ISO approved company, more reliable supplier.

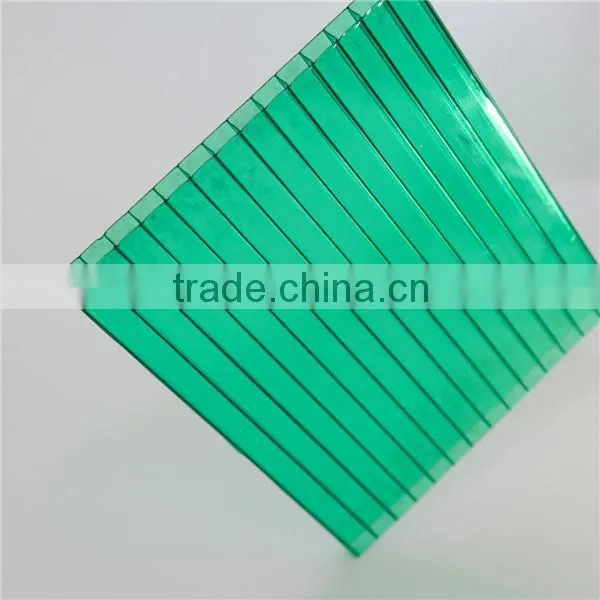

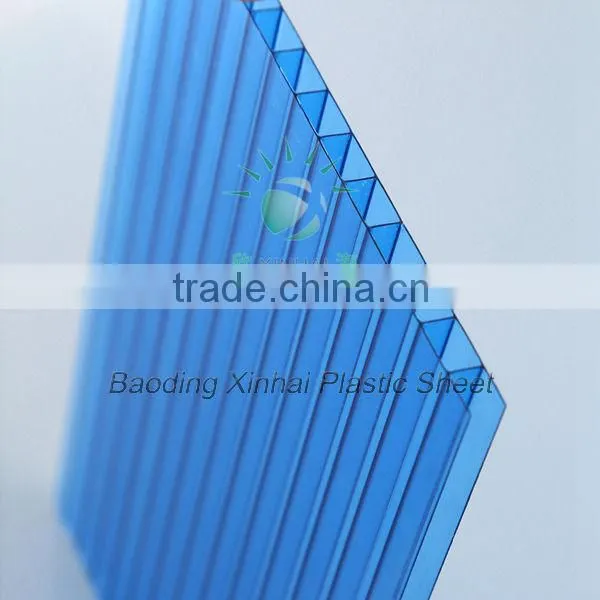

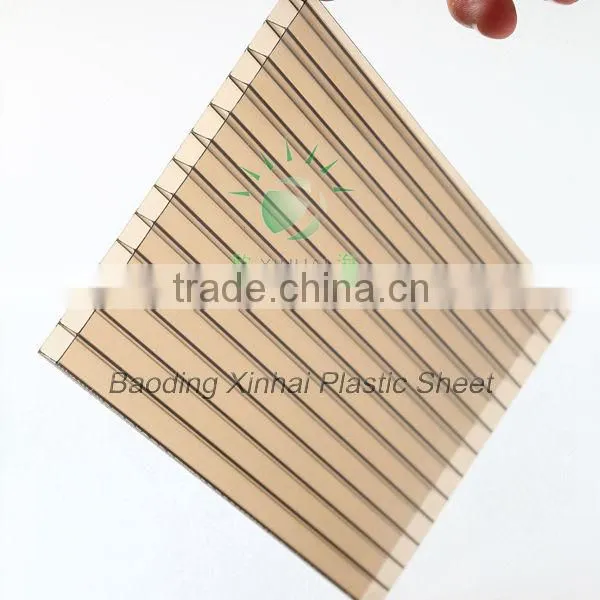

polycarbonate hollow sheet main pictures
1.Polycarbonate is excellent engineering plastic used worldwide. Polycarbonate is a type of non-crystal thermo plastic
resin with various good mechanical propertied including electrical insulation, flexibility, dimensional stability, chemical
resistance, high strength, heat resistance and cold resistance.
2.Anti-droplet polycarbonate sheets have one side of 50micron UV co-extrusion layer which can prevent ultraviolet rays,
resulting in good weather resistance, effectively avoiding the aging, the other side of the sheet has an anti-droplet
coating, which can avoid water dropping through distributing water film by changing surface tension. This ability plays a
key rolein greenhouse planting, since droppingwater may damage the plants.The condensation of the droplets will
reduce the light transmission of the sheets, and the droplets will beharmful for theplants, reduce the production, and
increase the likely of plant diseases and insect pests, damage the Ecological Environment of the greenhouse.
3.At a certain humidityand temperature difference in and out the greenhouse, it necessarily occur the condensation of the droplets. But we can help you to solvethe harmful problems occurred by the droplets. The antidrop technology can
increase the surface tension between the condensateand the sheets then control the drop of the droplets.
polycarbonate hollow sheet specification
| Structure | Thickness(mm) | Weight(g/square) | Rib distance(mm) | U-value(w/square) |
| 2-wall R-structure | 4 | 850 | 7 | 3.96 |
| 6 | 1300 | 3.56 | ||
| 8 | 1600 | 10 | 3.26 | |
| 10 | 1700 | 3.02 | ||
| 12 | 1900 | 2.78 | ||
| 3-wall R-structure | 10 | 1900 | 10 | 2.68 |
| 12 | 2100 | 2.60 | ||
| 14 | 2400 | 16 | 2.42 | |
| 16 | 2700 | 2.27 | ||
| 4-wall R-structure | 8 | 1800 |
7 |
2.56 |
| 10 | 2000 | 2.39 | ||
| 12 | 2200 | 2.30 | ||
| 14 | 2500 |
10 |
2.10 | |
| 16 | 2800 | 2.00 | ||
| 18 | 3100 | 1.88 | ||
| 20 | 3300 | 1.69 |
polycarbonate hollow sheet characteristic datas
| characteristics | Unit | Data of twin-wall hollow sheet | Data of triple-wall hollow sheet | Data of polycarbonate solid sheet |
| Light transmission | % |
40-82 | 25-75 | 88-92 |
| Impact strength | J/m | 2.1-2.3 | 2.4-3.5 | 5. |
| Coefficient of thermal expansion | mm/m°c | 0.065 | 0.065 | 0.065 |
| Heat conductivity | W/m²°c | 3.0-3.9 | 2.2-3.2 | 0.21 |
| Service temperature | °c | -40°c~+120 °c | -40°c~+120 °c | -40°c~+120 °c |
| Tensile strength | n/mm² | ≥60 | ≥60 | ≥60 |
| Bending strength | n/mm² | 100 | 100 | 100 |
| Bending elastic modulus | mpa | 2400 | 2400 | 2400 |
| Tensile stress | mpa | ≥65 | ≥65 | ≥130 |
| Elongation at break | % |
≥100 | ≥100 | ≥130 |
| Sound insulation effect | db | 20decibel decrease for 10mm thick sheet | 25decibel decrease for 16mm thick sheet | 35decibel decrease for 6mm thick sheet |

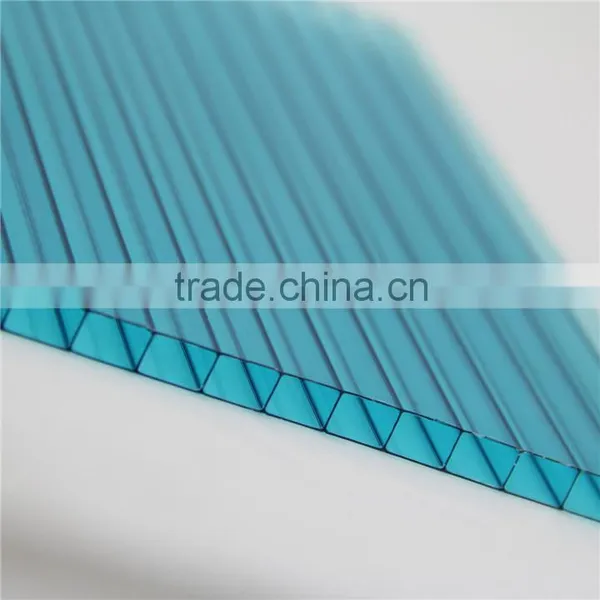

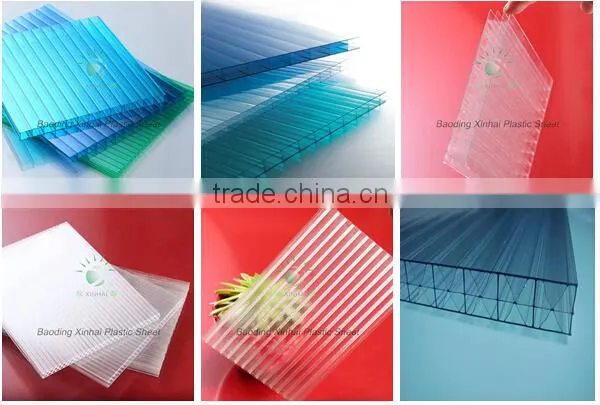

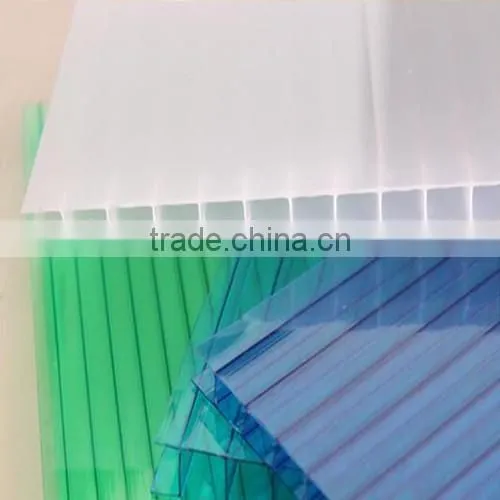

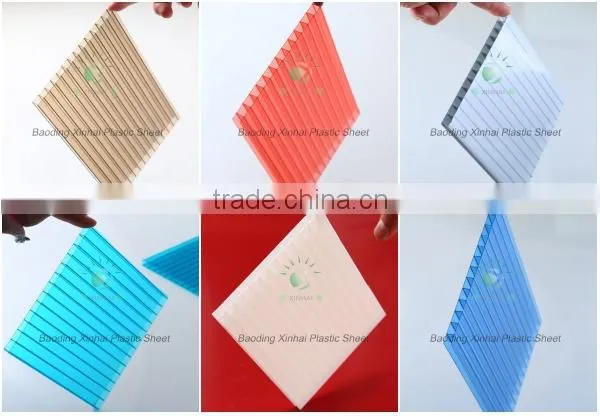

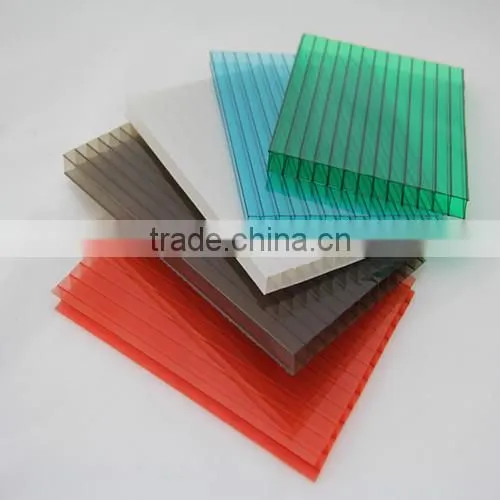

polycarbonate hollow sheet pictures show
relevant products:tripe-wall sheet,four-wall sheet,crystal sheet

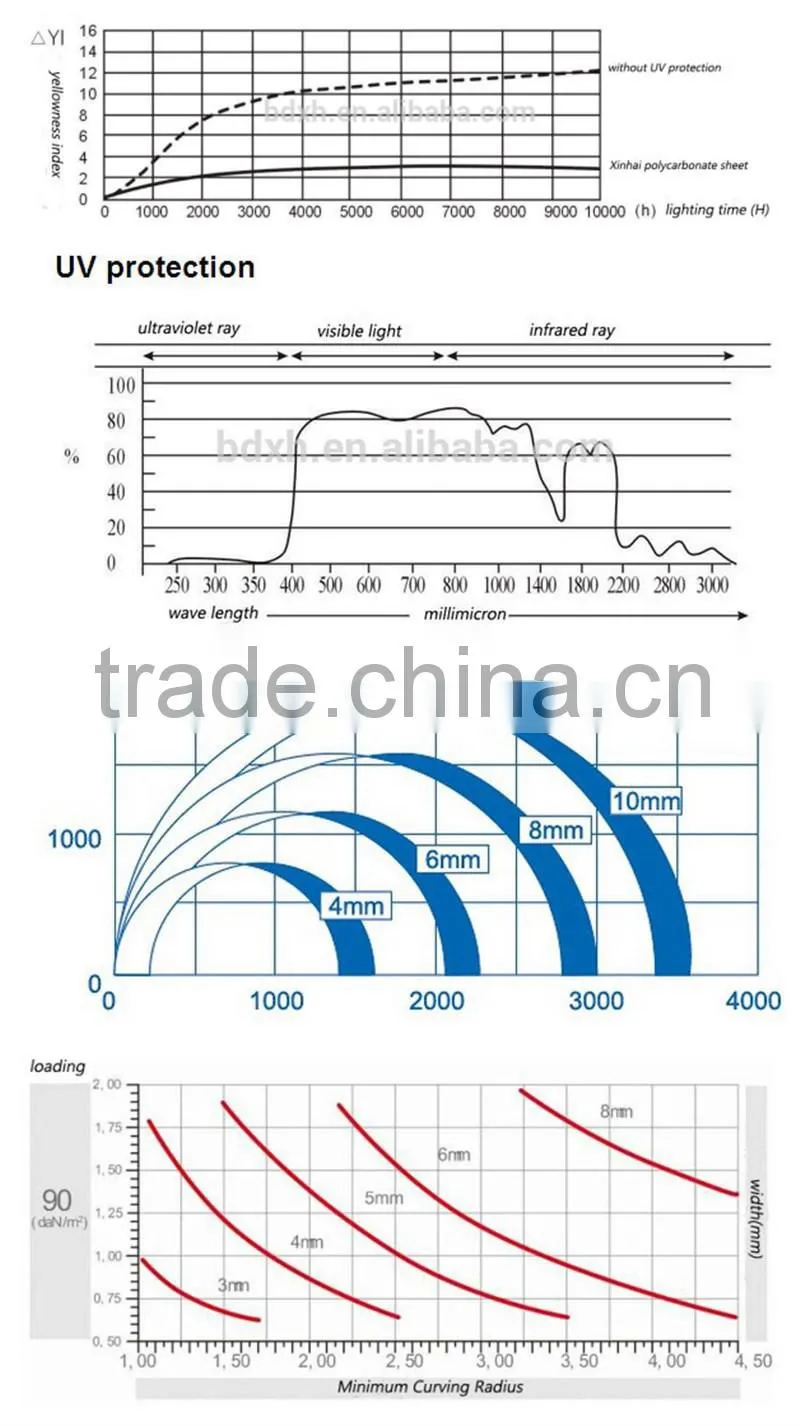

polycarbonate hollow sheet properties
1. Light transmittance: the light transmittance of the PC sheet is up to 88%, compare favorably with the glass. Sheet
withUV coating does not turn yellowing, atomization, poor light transmission in the exposure sunlight, the loss of
transmittance is only 6% after 10 years, but the PVC wastage rate is as high as 15% to 20%, and the glass fiber is
12%-20%.
2. Anti impact: PC sheet is the best impact resistance of thermoplastics, the impact resistance of polycarbonate is
10-27 times than glass and Plexiglass.
3. UV protection: it is coated with anti-ultraviolet(UV) coating on one side and with anti-condensation processing on
the other side, with the function of anti-UV, heat insulation and anti-drop. It can prevent the ultraviolet rays pass through,
and suitable to protect the precious works of art and exhibits from UV damage.
4. Light weight: the proportion is only 1/12 of the ordinary glass, and not easily crushed, save transport, unloading,
installation, and the cost of the support frame.
5. The flame: the national standard GB50222-95 confirmed the PC board is the number one level of fire-resistance,
is B1 level. The ignition point of PC sheet is 580 degrees Celsius, the combustion does not produce toxic gases from
the fire self-extinguishing, will not contribute to the spread of fire.
6. Bendable: it can use cold-formed way at the site according to design, install into arched, semi-circular roof and
windows. Minimum bend radius is 175 times the plate thickness, it also can be hot bended.
7. Energy-saving: it keep cool in summer, and keep warm in winter. The thermal conductivity (K value) of PC sheets
is more lower than ordinary glass and other plastic, the insulation effect of PC sheet is 7%-25% higher than the
same glass. The hest insulation is up to 49%. So that heat loss is greatly reduced, it is used to warm the equipment
building, an environmentally friendly material.
8. Temperature adaptability: sun panels will not crisp at the temperature of -100 C, and won’t softening at 135 °C,
mechanical performance was no significant change in the harsh environment.
9. Weather resistance: the sun panel can maintain the physical stability of the indicators in the range of -40°C~+120°C. Artificial weathering test of 4000 hours, yellowing is 2, light transmittance value is only 0.6% lower.
10. Anti-condensation: outdoor temperature is 0°C, indoor temperature of 23°C, indoor relative humidity less than 80%
of the inner surface of the material, non-condensing.

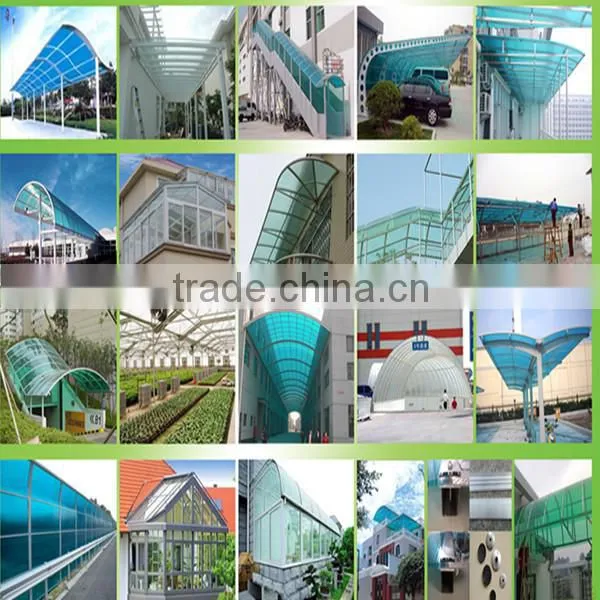

1) Roofing light sheet and sunshade for office building, department store, hotel, stadium, school, amusement center,
hospital, ect.

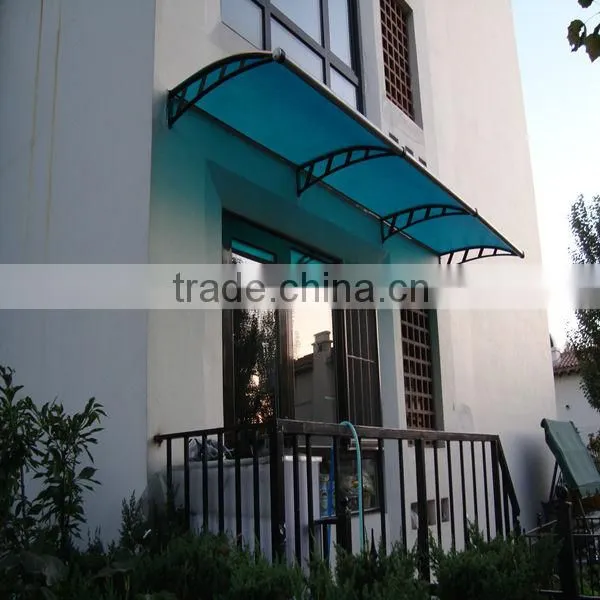

2) Skylight, lighting for corridors, balcony, passages and subway entries, walkways.
3) Do-It-Yourself (DIY), awning, canopy.
4) Advertising lamp boxes, sign board.
5) Anti-riot shield, bullet resistant material, Bank ATMs.
6) Conservatories, agricultural greenhouses, zoos, botanical gardens.
7) Industrial Roofing and Glazing.
8) Swimming Pools roofing/cover/sheet.

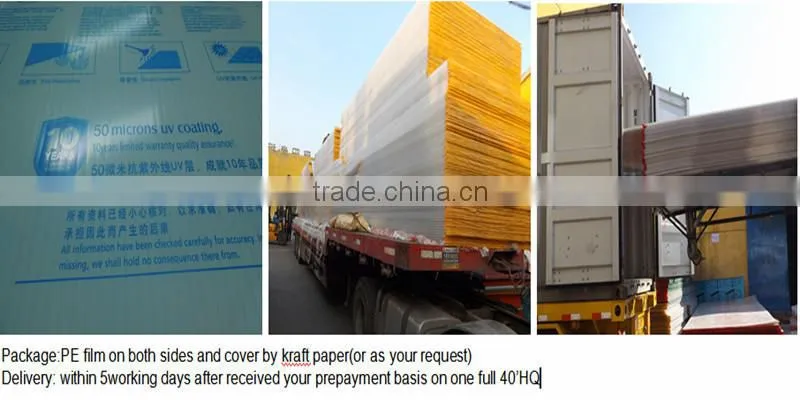

package and shipment
polycarbonate hollow sheet loading capacity
Capacity for 20'container
2.1m*5.8m*4mm |
570sheet |
2.1m*5.8m*6mm |
380sheet |
2.1m*5.8m*8mm |
290sheet |
2.1m*5.8m*10mm |
230sheet |
Capacity for 40'container
2.1m*5.8m*4mm |
1335sheet |
2.1m*6.0m*4mm |
1320sheet |
2.1m*5.8m*6mm |
890sheet |
2.1m*6.0m*6mm |
880sheet |
2.1m*5.8m*8mm |
667sheet |
2.1m*6.0m*8mm |
660sheet |
2.1m*5.8m*10mm |
534sheet |
2.1m*6.0m*10mm |
528sheet |
Factory Profile
Baoding Xinhai Plastic Sheet Co., Ltd.is a manufacturer of polycarbonate hollow and solid sheet with well-equipped production lines and strong technical force.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome all customers from all walks of life to contact us for future business relationships and mutual success.

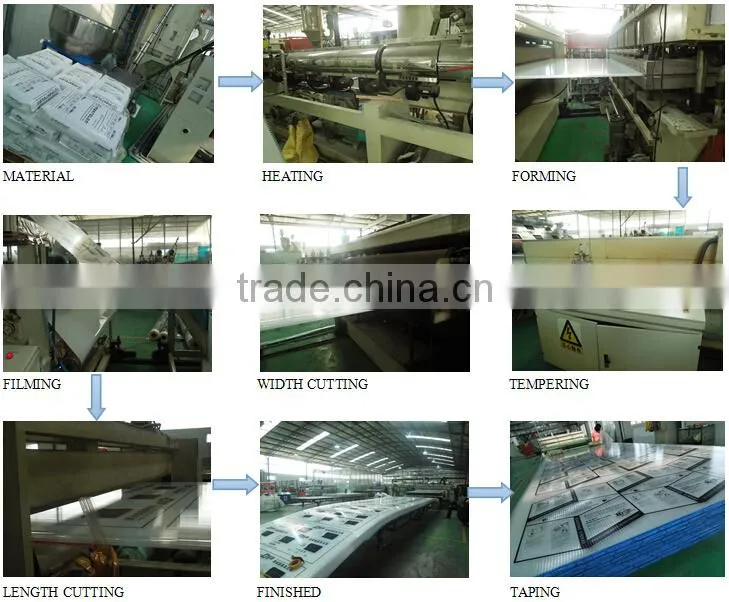

polycarbonate hollow sheet produce process

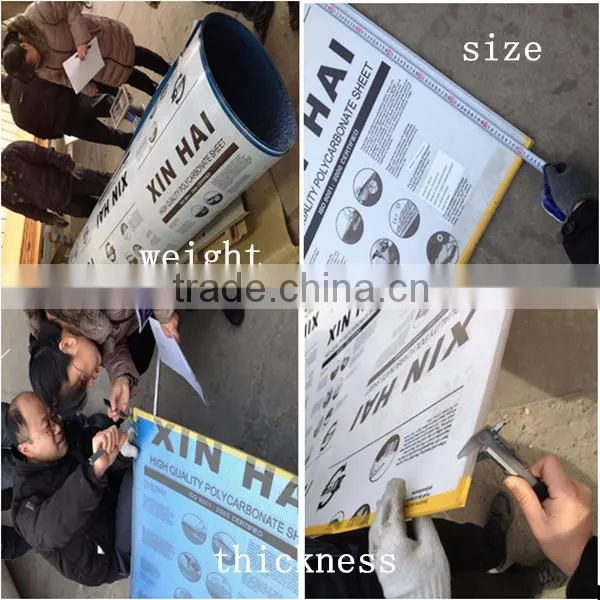

inspection
customers
certification
1. We can design and produce products based on the client's requirements.
2. FOB Chinese port, CIF, CFR and EXW trade terms are available for you. We will give youmost competitive price.
3. Our factory is located in Baoding which is near to Beijing and Tianjin cities. It is easy for youto visit our factory.
4. Excerienced in this field for 15 years development, we have set up so many direct sales stores all over China.
5. We believe to supply you our best services.
6.Reply your inquiry in 8 working hours.
7.Experienced staffs answer all your questions in fluent English.
8.Customized desigh is available,OEM is welcomed.
9.Special discount and protection of sales area provided to our distributor.
1.What kind of a company we are ?
We are a manufacturer located Hebei, China .We have gained good reputation among our customers for our professional,warm and thoughtful service, Because we know that a long terms business based on the quality control,delivery time etc.
2.Does your company is a factory or trade company ?
We have a factory ourself , we are on this business for few years in China.Our factory is very famous in the Hebei China.
3.What's the quality assurance we provided and how do we control quality ?
1)Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc. Besides, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2)100% inspection in assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
4.Your company can product how many different kinds of PC sheet ?
Our company now have following several products: Glittering Polycarbonate Sheet,Multi-wall Structure Polycarbonate Sheet,Greenhouse Polycarbonate Sheet, General Polycarbonate Solid Sheet,Advertising Polycarbonate Sheet,Polycarbonate Embossed Sheet, Polycarbonate Frosted Sheet, Soundproof Polycarbonate Sheet, Greenhouse Polycarbonate Sheet etc.
5.Do you take special orders ?
Yes , We accept customized products.
6.What are polycarbonate sheets?
Polycarbonate sheets are a transparent, synthetic product. Because of its exceptional impact, weather and temperature resistance, it provides solutions where other synthetics fail. Polycarbonate has a different chemical composition, and therefore different properties, from other transparent plastics such as PVC.
7.Can I install polycarbonate sheets myself ?
Polycarbonate sheets are particularly user-friendly and very light, so that fewer cross bars are needed.
This makes the supporting structure more straightforward and cheaper.
8. Do the sheets discolor overtime ?
Because of its transparent UV protective layer polycarbonate sheets do not discolour and most polycarbonate sheets come with a 10-year guarantee... but they can last even longer than that!
9. Won’t a polycarbonate roof make things very hot ?
Polycarbonate roofing sheets come with an energy reflective coating, which helps solve this problem. Moreover, polycarbonate sheets have excellent insulating properties so that heating costs are considerably reduced during intermediate seasons.
10. Do the sheets break very easily ?
No! Polycarbonate sheets are not only extremely impact-resistant but thanks to their temperature and weather
resistance they have a much longer service life.
11.Is polycarbonate sheet bad for the environment ?
Polycarbonate sheets are a very sustainable material that can be recycled and does not emit toxic substances during combustion. Moreover, there are sustainable polycarbonate sheets being manufactured using 20% renewable energy!
12.What will happen in the event of a fire ?
Fire safety is one of polycarbonate's strong points. Polycarbonate sheeting is flame retardant and do not emit toxic substances, which is why they are so often incorporated in public buildings, where the most stringent safety regulations apply.
13.What is the impact strength of polycarbonate ?
Polycarbonate is almost unbreakable. It is many times more impact resistant than any other transparent material used for glazing or roofing purposes. Many types of tests are used to measure impact strength, so it is difficult to compare data. Solid polycarbonate sheets comply with most tests issued on the impact strength of glazing materials. To give an idea: a 3mm solid polycarbonate sheet withstands the force of a steel ball of about 4 kg dropped from a height of 9.5 m,3 times in a row. It does not break or shatter! When you take a look at some of the more industrial applications, you will see that polycarbonate is used for machine glazing, police riot shields, ice-hockey rinks...all applications that require extreme impact resistance.
