Help CenterTi6al4v PURE TITANIUM WIRE B348 HOT SALE Tolerance 0.05mm
Related Products
-
ASTM B348 Grade 7 High Precision Alloy Titanium Bar H6-h11US$ 24 - 30MOQ: 10 Kilograms -
Use in Grade7 Titanium Bar / Rod 1/4" Dia x 300 Long Alloy Grade 7US$ 24 - 30MOQ: 10 Kilograms
-
Tianium Round Bars in Gr7 Astm B348 Ground Soft Annealed Bright Ti0.2Pa in StockUS$ 24 - 30MOQ: 10 Kilograms
-
2015 Gr7 Titanium Alloy Rod, Titanium Bars Gr7, Grade 7 Ti0.2Pa in StockUS$ 24 - 30MOQ: 10 Kilograms
-
CP Ti Gr2 Titanium Bars,Military Titanium Rod Stock in Stock H9US$ 24 - 35MOQ: 10 Kilograms
|

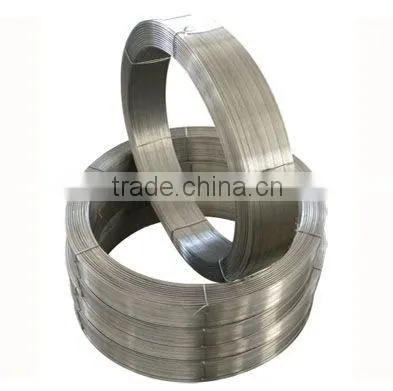

Titanium Wire is slivery metal with excellent properties. Density is 4.54g/cm³ lighter than Steel. But mechanical strength is higher than Steel, 2 times stronger than Aluminium, 5 times stronger than Magnesium. Pure Titanium Wire is high temperature resistance and melting point is 1942K. High Qualiy Titanium Wire has low density, light weight, high strength, also has the good corrosion resistance, high temperature resistant, low temperature resistance, acid resistance, alkali resistance and so on. Titanium wire can be applyed in different walks of life. Such as military industry, medical, sporting goods industry, glasses, earring, headwear, plating hangers, welding wire etc. |
Commercial Pure Titanium |
ERTi-1,2,3,4 |
ASTM B863 Gr1,2,3,4 |
AMS 4951 |
Ti 6Al-4V |
ERTi-5 |
ASTM B863 Gr5 |
AMS 4954 |
Ti 6Al-4V Eli |
ERTi-5 Eli |
ASTM B863 Gr23 |
AMS 4956 |
Ti (0.12~0.25)Pd |
ERTi-7 |
ASTM B863 Gr7 |
---- |
Ti 3Al-2.5V |
ERTi-9 |
ASTM B863 Gr9 |
---- |
Ti 0.3Mo-0.8Ni |
ERTi-12 |
ASTM B863 Gr12 |
---- |
| Tolerance | ||||||
| Diameter (mm) | 0.1~0.2 | >0.2~0.5 | >0.5~1.0 | >1.0~2.0 | ~2.0~4.0 | >4.0~7.0 |
| Tolerance (mm) | -0.025 | -0.04 | -0.06 | -0.08 | -0.1 | -0.14 |
| Notes:Other specification and tolerance will be available. | ||||||
Titanium wires Dimension Tolerance | ||||
Diameter |
0.1-0.3mm |
0.3-0.8mm |
0.8-2.0mm |
2.0-6.0mm |
Tolerance |
±0.025 |
±0.04 |
±0.05 |
±0.10 |
|
|
|
|
|
Length |
200-500mm |
500-1000mm |
1000-2000mm |
>2000mm |
Tolerance |
±1.0 |
±1.5 |
±2.0 |
±2.5 |
