TG230T Silent Airbrush Compressor for Paint

silent airbrush compressor for paint package
weight: 7.2kg Dim: 330X155X335mm
Carton
inner carton size(CM):34*16.5*35.2
Dimensions(CM):51.5*35*36.5
PCS/CTN: 3
N.W./G.W.:21.6KG/24.2KG

Tagore TG230T silent airbrush compressor for paint

-Air compressor widely used in makeup airbrush.

-Air compressor widely used in nail art airbrush.

-Air compressor widely used in model painting airbrush.

-Air compressor widely used in tattoo airbrush.

-Air compressor widely used in cake decorating airbrush.

-Air compressor widely used in hobbies & crafts airbrush.

Discriotion & Feature of TG230T silent airbrush compressor for paint

Feature:

1, Double cylinders and output flow is big, can drive several airbrush guns to work
2.Air output pressure can be adjusted ,with pressure gauge and the oil-water separator
3, piston type, oil free,non-pollution;
4, With 2 level air pressure switch:
First level: low-voltage automatic stop switch, suitable for low pressure tools like airbrush;
Second level: high pressure non stop switch, suitable for other pneumatic tools which need need high pressure;
5.can work continuously, and can start under pressure, powerful
5, motor has overheating protection device;
7, noise: 47 db;
8, with automatic startup and automatic stop function;
9.Air tank with safety protection device
Certification: ROHS, CE, GS, ETL and CETL

Compressor Type:TG230( double cylinder piston compressor )

1.Power: 1/4HP

2.Voltage: 220-240V/50HZ 110-120V,220V/60HZ

3.Auto stop: start at 3BAR/43PSI, stop at 4BAR 57PSI
4.Max pressure: 6BAR/86PSI

5.air output per min.: 30-35L/min.

6.Conector: 1/8" BSP
7.electric cable:1.5m

TG230 Twin Cylinder Airbrush Compressor kit Package Information

weight: 7.2kg

Dim: 330X155X335mm
Carton
inner carton size(CM):34*16.5*35.2
Dimensions(CM):51.5*35*36.5
PCS/CTN: 3
N.W./G.W.:21.6KG/24.2KG

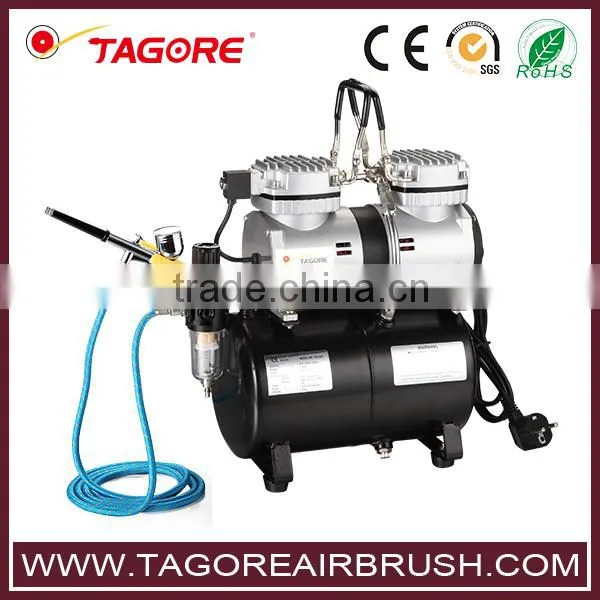

Pictures of TG230T silent airbrush compressor for paint

------------------------------------------------------------------------------------------------------------------------------

Pls see several of our hot items as below, if you couldn't fine what you want here, that's ok, pls let me know your requests, we can custom perfectly and promptly.

	type: TG218 single cylinder piston compressor 1.power:1/8HP 2.voltage:220-240/50HZ 110-120V, 220V/60HZ 3.air output per min./litres:20-23L/MIN nnections:1/8"BSP 5.electric cable:1.5m 6.auto stop: satrt at 2.1BAR, stop at 3.1BAR 7. Weight: 2.4kg 8.Size:190MM*130MM*170MM
	type: TG212B single cylinder piston compressor 1.power:1/6HP 2.voltage:220-240/50HZ 110-120V, 220V/60HZ 3.air output per min./litres:20-23L/MIN nnections:1/8"BSP 5.electric cable:1.5m 6.Auto stop: start at 3BAR/43PSI, stop at 4BAR 57PSI 7. Weight: 3.5kg 8. Size: 255*135*205MM

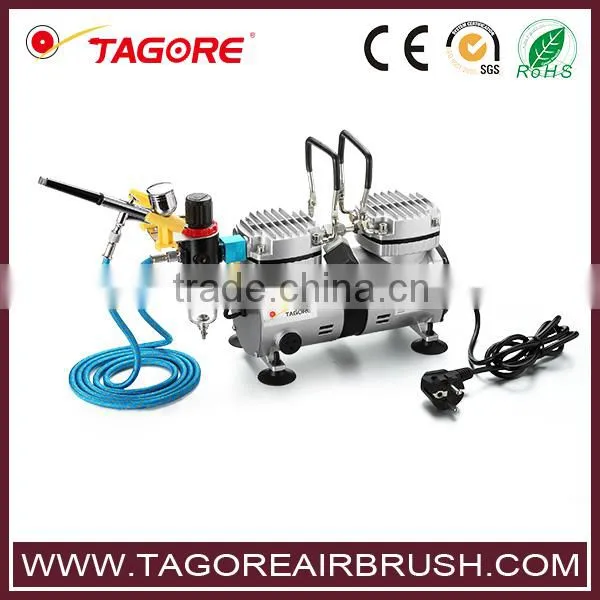

	Type: TG230 double cylinder piston compressor 1.Power: 1/4HP 2.Voltage: 220-240V/50HZ 110-120V,220V/60HZ 3.Auto stop: start at 3BAR/43PSI, stop at 4BAR 57PSI 4.Max pressure: 6BAR/86PSI 5.air output per min.: 30-35L/min. 6.Conector: 1/8" BSP 7.electric cable:1.5m 8.weight: 5kg 9.Dim: 320×135×205mm
	Type: TG212T single cylinder piston compressor with tank 1.Power: 1/6 HP 2.Voltage: 220-240V/50HZ 110-120V,220V/60HZ 3.Auto stop: start at 3BAR/43PSI, stop at 4BAR 57PSI 4.air output per min.: 23L/min. 5.Conector: 1/8" BSP 6.electric cable:1.5m 7.Tank:4L 8.Weight: 5.7kg 9.Dim: 315x150x335mm

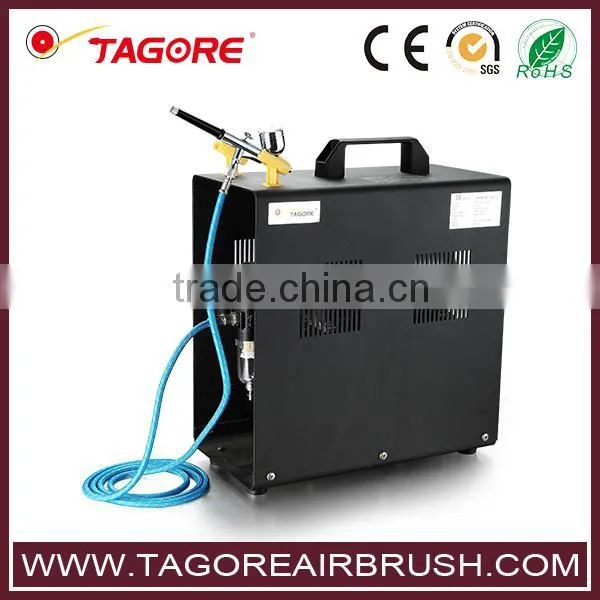

	Type: TG230TC double cylinder piston compressor with tank and protection cover 1.Power: 1/4HP 2.Voltage: 220-240V/50HZ 110-120V,220V/60HZ 3.Auto stop: start at 3BAR/43PSI, stop at 4BAR 57PSI 4.Max pressure: 6BAR/86PSI 5.air output per min.: 30-35L/min. 6.Conector: 1/8" BSP 7.electric cable:1.5m 8.Tank:4L 9.weight: 11.8kg 10.Dim: 330×175×385mm
	Type:TG216S compressor 1. Voltage: DC12V 50Hz/60Hz 2. Current: less than 800MA Power: 9W 3. Pressure: 2.5BAR/36PSI 4. Air output per min./litres: more than 7L/min 5. Electric Cable: 2m 6. Weight: 0.71kg 7. Size: 134MM*104MM*57MM
	Type:TG216 compressor 1. Voltage: DC12V 50Hz/60Hz 2. Current: less than 800MA Power: 9W 3. Pressure: 18PSI 4. Air output per min./litres: more than 7L/min 5. Electric Cable: 2m 6. Weight: 0.65kg 7. Size: 122MM*96MM*67MM

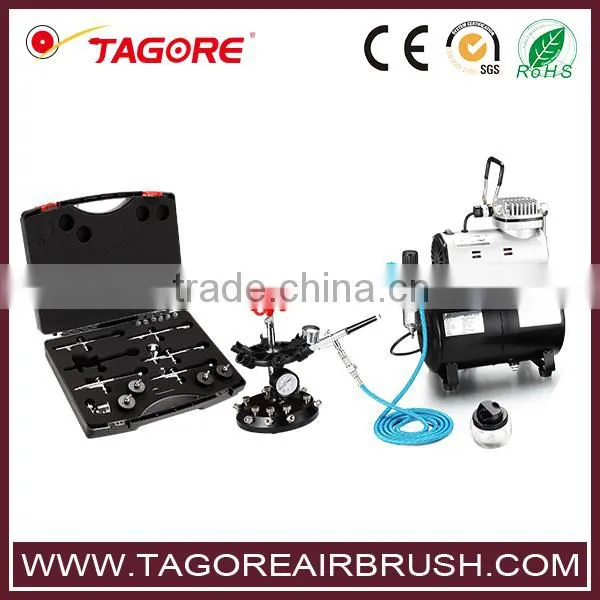

More relative product picture

----------------------------------------------------------------------------------------------------

-Compressor Maintance

-Cleaning the compressor after every use.

-After every use,drain the water collected in the filter/regulator bowl,pressing upwards the valve placed on the  bottom side of the cup(outlet must be pressurized).

-Once every three months ,clean the filter of the the filter/regulator by blowing with compressor air.

-----------------------------------------------------------------------------------------------------------------------
