Home > Products > Laser cutting machine > Acrylic Laser Cutting Machine SD1812

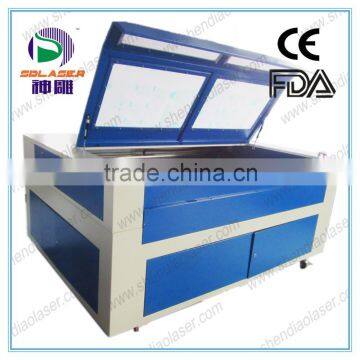

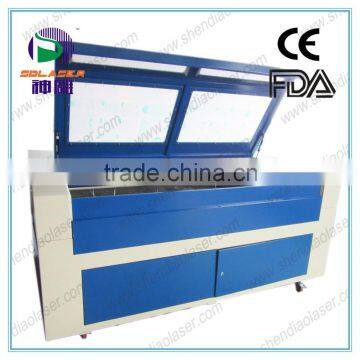

Acrylic Laser Cutting Machine SD1812
- 30 Set / Sets per Month
- Qingdao
- Credit Card PayPal
Product Details
Condition: | New | Laser Type: | CO2 | Applicable Material: | Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood |
Cutting Thickness: | 0-30mm | Cutting Area: | 1800*1200mm | Cutting Speed: | 0-400mm/s |
CNC or Not: | Yes | Cooling Mode: | Water Cooling | Control Software: | DSP |
Graphic Format Supported: | AI, BMP, DST, DWG, DXF, LAS | Place of Origin: | Shandong, China | Brand Name: | SD |
Model Number: | SD-1812 | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Acrylic Laser Cutting Machine
Feature:
1. High C/P Value: High capacity and low price suit to initiate laser engraving machine user.
2. Motorized Auto Focus Module: Provide convenient laser beam auto focus function.
3. Pass Through Design: Convenient for continuous feeding process of long material front to rear.
4. Easy Maintain Design: Easy open able side covers make maintenance easier.
5. Motorize Working Table: Provide up to 300mm space for thick material.
6. Aluminum Table With Honeycomb Unit: East & convenient to place and pick engraving work pieces.
7. Fast Engraving Speed: Provide up to 1000mm/s (39.35inch/s),high accurate engraving speed.
Sepcification:
SD-1812 |
|
|
Wattage |
| 100W/130W |
Laser Source |
| Sealed CO2 Laser |
Cooling |
| Water Cooled |
Working Area |
| 1200*1800mm |
Dimensions (W x L x H) |
| 1070Tall x 2360Deep x 1660Wide mm |
Drive |
| Closed-loop DC stepper control |
Maximum Motor Speed |
| 40 IPS |
Speed Control |
| Adjustable from 0~100% |
Power Control |
| Adjustable from 0~100% |
Distance Accuracy |
| 0.1mm |
Z-Axis Movement |
| Automatic or manual |
Computer Interface |
| Standard printer port and USB 2.0** port |
Operation Voltage |
| 110V-220V AC |
Power Consumption |
| 1300w |
Graphic format supported |
| BMP,JPG,GIF,HPGL,NC,PLT,DST,DXF,AI ... |
Water Chiller |
| Water Chiller required |
Air Exhaust System |
| External exhaust system required |

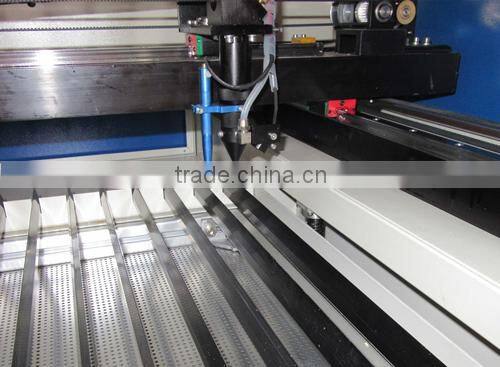

Configuration Parts:

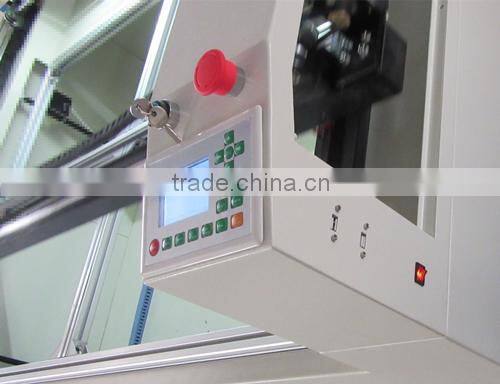

Colorful Screen Panel High pricision Autofocus

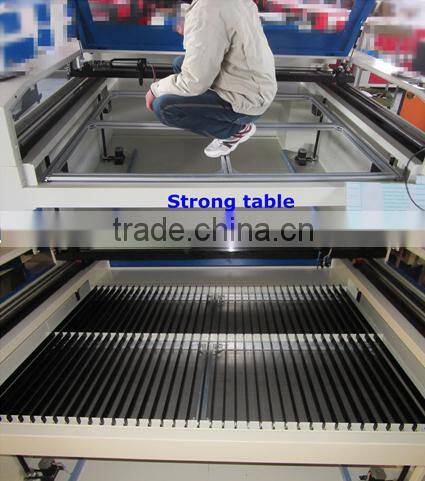

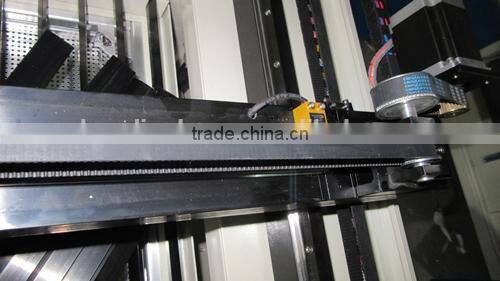

Durable Timing belts Strong Table

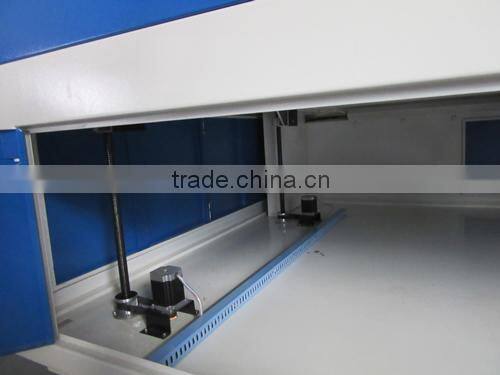

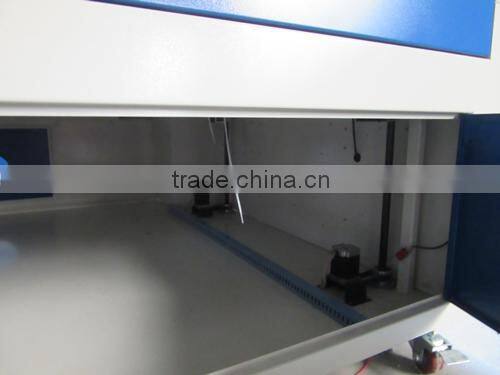

High-power motorized up-down table
Cutting and Engraving materials:
Bamboo, jade, marble, glass, crystal, plastic, garments, paperleather, rubber, ceramic, Hard Wood, MDF, Plywood, Plexiglas, Plastic, Acrylic, and othe non metal materials. Can also engrave onto metals with the use of an additive laser marking material like "Cermark".
Applications of Laser machines :
Advertising, arts and crafts, leather, toys, garments, model, embroidery, clipping, packaging and paper industry, Wood Working, engraving embroidery, crafts, RC airplanes, balsa models, kites, robotics kits, and clothing patterns

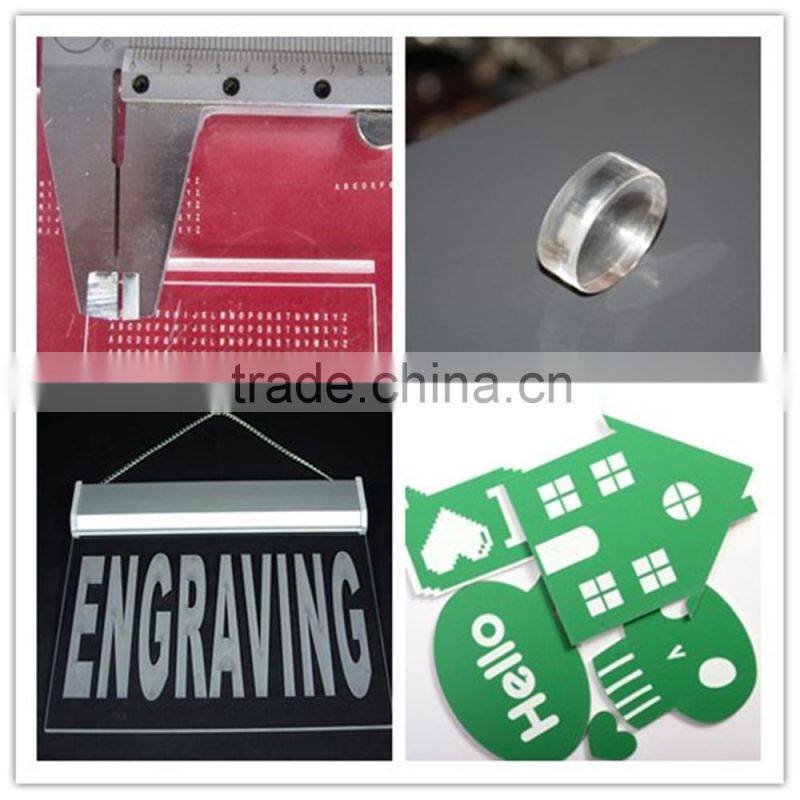

Samples:
Jinan Shendiao Mechanical Equipment Co.,Ltd is known for excellent service and bringing forth laser products that are the best quality of all Chinese laser cutting machines. This equipment can be applied to many kinds of materials, and has many advantages, such as smooth cutting edges, free from polishing, no noise, no dust, faster processing speed, higher precision, less waste and more efficiency. It is the best option for upgrading traditional equipment in various industries.
If custom ordering a machine, the color can also be specified.
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Provide 1 year complete warrantee and life-time maintenance service;
4. Installation/Operation/ Service/ Maintenance Manual and Video: Provided In English
