Brief Introduction
R-381-1 epoxy potting resin is made from epoxy resin, hardener and filler presented in two-component form. R-381-1 is heating type product and its heat-resistant grade is F. It has gained UL certification (E229550) and UL insulation system certification (E242776).
Features
Good manufacturability and insulation property, low shrinkage, shining appearance of condensate and excellent crack resistance.
Application/Use

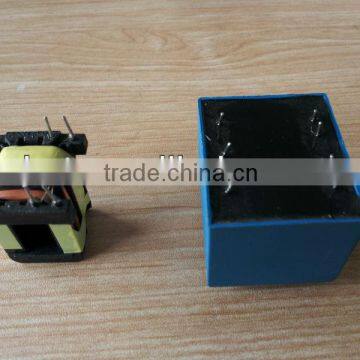

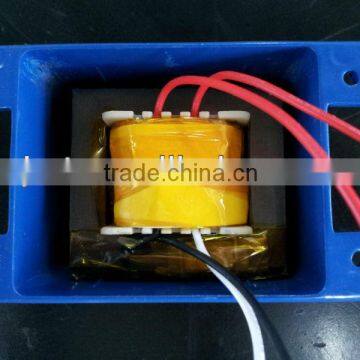

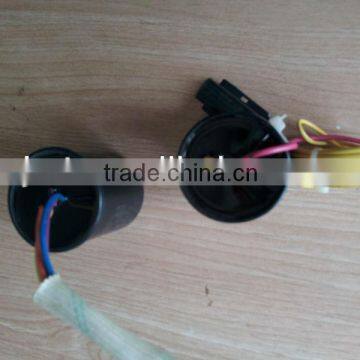

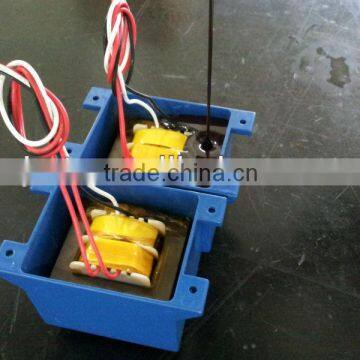

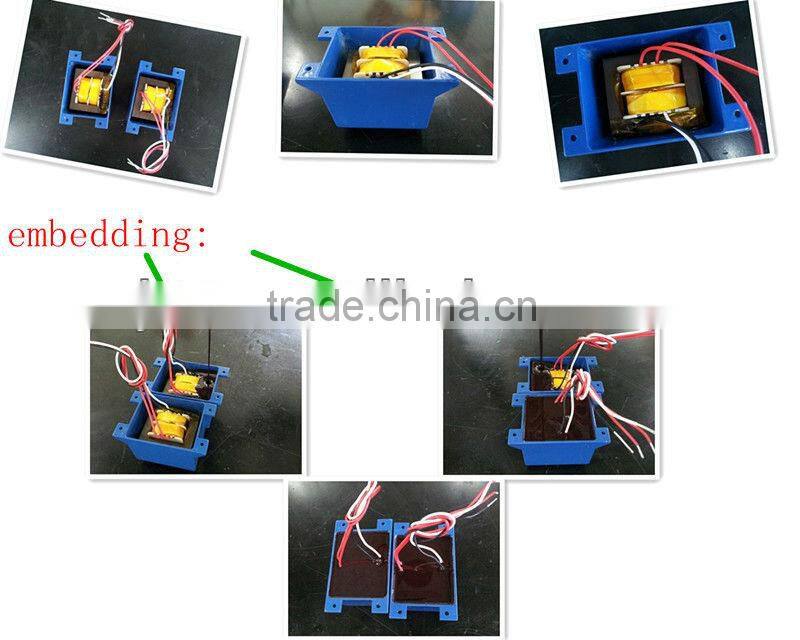

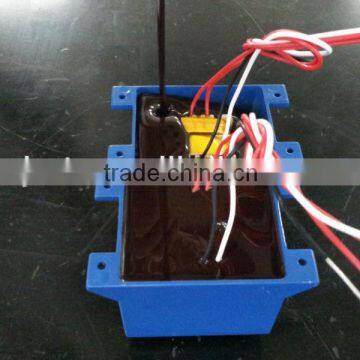

Embedding, casting and potting for electronic components, motor and apparatus coils, such as small transformer and instrument transformer coils, capacitor, ignition coils of automobile etc.
R-381-1 cured resin is grey, and we can provide red or other colors according to customers’ needs.
Qualification (as the Q/R 101-2010 company standard)
No. |
Test Item |
Test Method |
Unit |
Value |
|
1 |
Appearance |
Test Tube |
- |
Component A is grey viscous liquid, component B is yellow liquid |
|
2 |
Viscosity |
Part A |
Rotary viscosimeter, 40°C |
mPa.s |
6000-10000 |
Part B |
20±10 |
||||
Mix |
1000-2000 |
||||
3 |
Density |
Part A |
Water=1 |
- |
1.60±0.05 |
Part B |
1.20±0.05 |
||||
Mix |
1.55 |
||||
4 |
Gel time |
23±2°C |
min |
≤10 |
|
5 |
Hardness |
- |
Shore D |
≥60 |
|
6 |
Volume Resistivity |
At room temperature |
Ω·m |
≥1×1013 |
|
After immersion in water |
≥1×1012 |
||||
7 |
Dielectric strength |
At room temperature |
MV/m |
≥20 |
|
8 |
Pot life |
23±2°C, no gel |
h |
≥1 |
|
9 |
Fire resistance |
- |
- |
UL94 V-0 |
|
