FlySky FS-T6 2.4GHz 6 Channel Digital Transmitter Receiver Radio System AFHDS

Features

• The latest FS-T6 (Mode 2) digital 2.4G radio remote control system for model control
• 6 channels for airplane, glider & helicopter model control
• Automatic frequency hopping digital system (AFHDS) developed and patented by FLYSKY
• AFHDS works in between 2.400GHz to 2.4835GHz that has been divided into 160 independent channels and each system uses 16 different channels & 160 different hopping algorithm to offer excellent anti-jamming capabilities
• High gain & high quality multidirectional antenna, which covers the whole frequency band, greatly enhances the efficiency, sensitivity & stability of the system
• Unique ID for each transmitter to avoid jamming
• Very low power consumption and high receiver sensitivity
• Large LCD with backlight
• Auto power off

Specifications

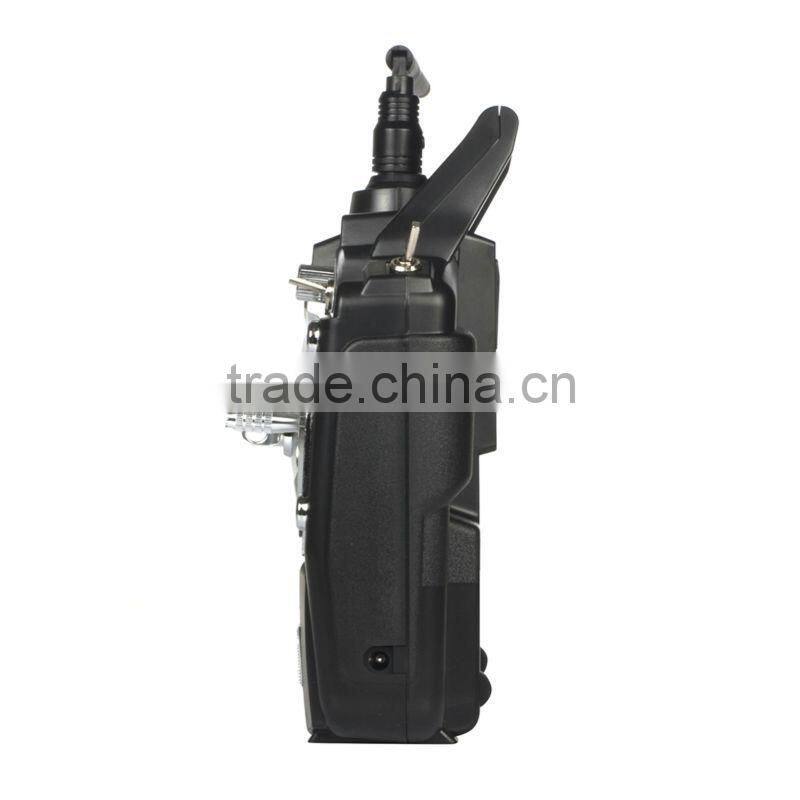

Transmitter

• Channel: 6 channels
• Model type: airplane,glider & helicopter
• Mode: Mode 2 (throttle stick on the left)
• RF range: 2.400GHz to 2.4835GHz
• RF power: less than 20dbm
• Modulation: GFSK
• System type: AFHDS
• Sensitivity: 1024
• Low voltage warning: Blinking symbol below 9.5V, Buzzer alarm below 8.5V
• DSC port: yes (3.5mm)
• Power: 12V (1.5V AA x 8)
• ANT length: 26mm
• Color: Black
• Item size: 302(L) x 190 (W) x 93 (H) mm (11.89' x 7.48' x 3.66' inch)
• Item weight: 590 g (20.8oz)

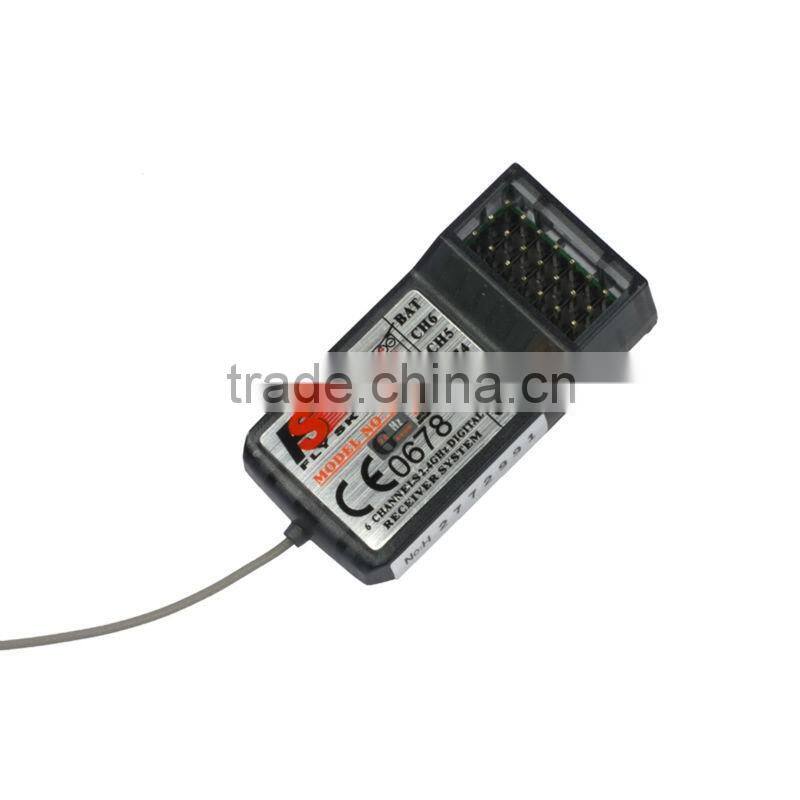

Receiver

• Channel: 6 channels
• Model type: airplane,glider & helicopter
• RF receiver sensitivity: -105 dbm
• Modulation: GFSK
• System type: AFHDS
• Sensitivity: 1024
• Bind port: yes
• Power port: yes (VCC)
• Power: DC 4.5-6.5V (1.5V x 4)
• ANT length: 26mm
• Color: black
• Item size: 45(L) x 23 (W) x 9 (H) mm (1.77' x 0.91' x 0.35' inch)
• Item weight: 13 g (0.46oz)

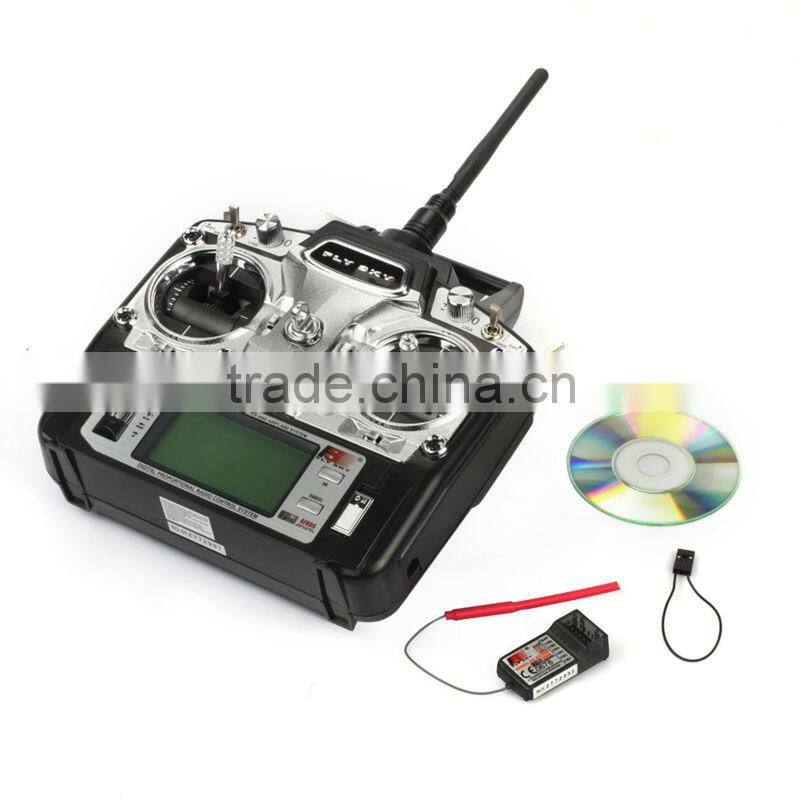

One set included

• 1 x 2.4G FS-T6 Transmitter (Mode 2 LEFT Throttle)
• 1 x 2.4G Receiver
• 1 x Instruction Manual in CD
• Color retail package
